RX30L-EYR (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 18R
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)STD

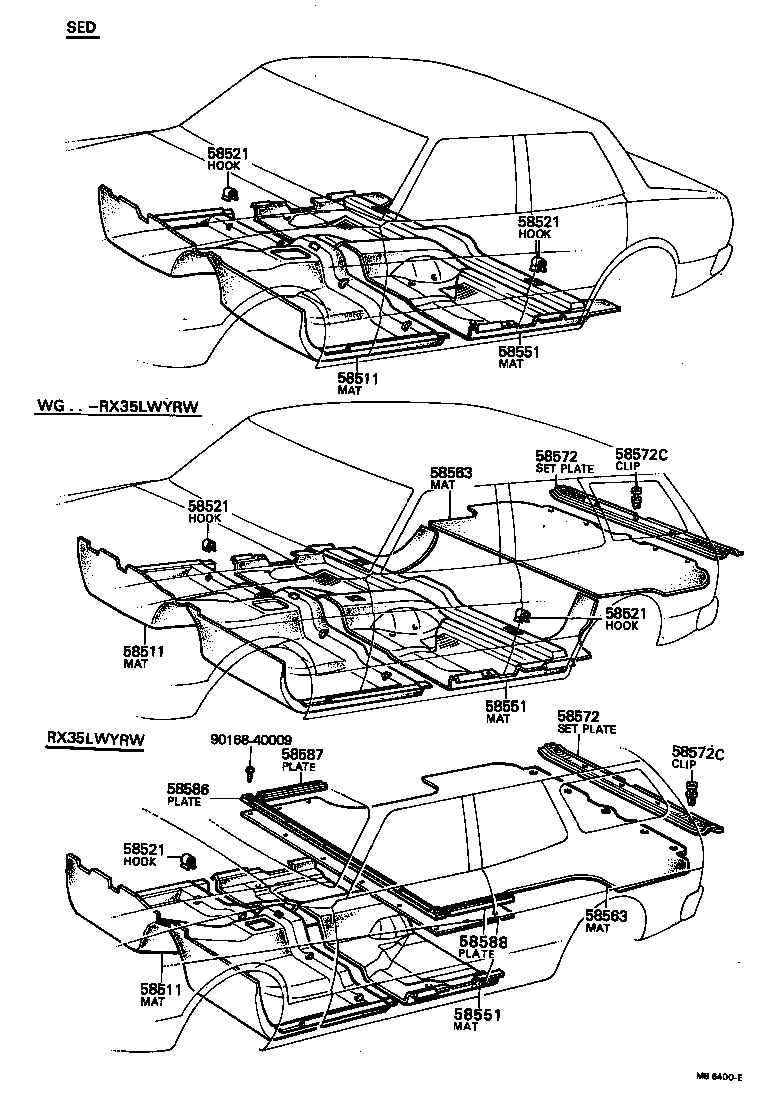

Click highlighted areas on diagram

diagram 58511 58511 58511 58521 58521 58521 58521 58521 58551 58551 58551 58563 58563 58572 58572 58572C 58572C 58586 58587 58588 9016840009
Part # Description Qty Price
58511 - MAT, FLOOR, FRONT
58510-2224001

RX3#..LHD..3H..STD

BLACK,BLACK,TRIM2#

 1
58510-2224005

RX3#..LHD..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58510-2224101

RX3#..LHD..3H..STD

BLACK,BLACK,TRIM2#

 1
58510-2224005

RX3#..LHD..3H..STD..GEN

BEIGE,BEIGE,TRIM4#

 1
58510-2224105

RX3#..LHD..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58510-2224001

RX3#..LHD..3H..STD..GEN

BLACK,BLACK,TRIM2#

 1
58511 - MAT, FLOOR, FRONT
58510-2224001

RX3#..LHD..3H..STD

BLACK,BLACK,TRIM2#

 1
58510-2224005

RX3#..LHD..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58510-2224101

RX3#..LHD..3H..STD

BLACK,BLACK,TRIM2#

 1
58510-2224005

RX3#..LHD..3H..STD..GEN

BEIGE,BEIGE,TRIM4#

 1
58510-2224105

RX3#..LHD..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58510-2224001

RX3#..LHD..3H..STD..GEN

BLACK,BLACK,TRIM2#

 1
58511 - MAT, FLOOR, FRONT
58510-2224001

RX3#..LHD..3H..STD

BLACK,BLACK,TRIM2#

 1
58510-2224005

RX3#..LHD..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58510-2224101

RX3#..LHD..3H..STD

BLACK,BLACK,TRIM2#

 1
58510-2224005

RX3#..LHD..3H..STD..GEN

BEIGE,BEIGE,TRIM4#

 1
58510-2224105

RX3#..LHD..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58510-2224001

RX3#..LHD..3H..STD..GEN

BLACK,BLACK,TRIM2#

 1
58521 - HOOK, MALE, NO.1
58521-22040

RX3#..STD..(EUR,GEN)

 12
58521-22040

RX3#..STD..GEN

 10
58521 - HOOK, MALE, NO.1
58521-22040

RX3#..STD..(EUR,GEN)

 12
58521-22040

RX3#..STD..GEN

 10
58521 - HOOK, MALE, NO.1
58521-22040

RX3#..STD..(EUR,GEN)

 12
58521-22040

RX3#..STD..GEN

 10
58521 - HOOK, MALE, NO.1
58521-22040

RX3#..STD..(EUR,GEN)

 12
58521-22040

RX3#..STD..GEN

 10
58521 - HOOK, MALE, NO.1
58521-22040

RX3#..STD..(EUR,GEN)

 12
58521-22040

RX3#..STD..GEN

 10
58551 - MAT, FLOOR, REAR
58540-2218005

RX30..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58540-2218001

RX30..3H..STD

BLACK,BLACK,TRIM2#

 1
58540-2219005

RX30..3H..STD

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
58540-2218101

RX3#..3H..STD..GEN

BLACK,BLACK,TRIM2#

 1
58540-2218105

RX3#..3H..STD..GEN

BEIGE,BEIGE,TRIM4#

 1
58540-2219001

RX30..3H..STD

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
58540-2218205

RX3#..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58540-2218201

RX3#..3H..STD

BLACK,BLACK,TRIM2#

 1
58551 - MAT, FLOOR, REAR
58540-2218005

RX30..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58540-2218001

RX30..3H..STD

BLACK,BLACK,TRIM2#

 1
58540-2219005

RX30..3H..STD

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
58540-2218101

RX3#..3H..STD..GEN

BLACK,BLACK,TRIM2#

 1
58540-2218105

RX3#..3H..STD..GEN

BEIGE,BEIGE,TRIM4#

 1
58540-2219001

RX30..3H..STD

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
58540-2218205

RX3#..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58540-2218201

RX3#..3H..STD

BLACK,BLACK,TRIM2#

 1
58551 - MAT, FLOOR, REAR
58540-2218005

RX30..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58540-2218001

RX30..3H..STD

BLACK,BLACK,TRIM2#

 1
58540-2219005

RX30..3H..STD

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

 1
58540-2218101

RX3#..3H..STD..GEN

BLACK,BLACK,TRIM2#

 1
58540-2218105

RX3#..3H..STD..GEN

BEIGE,BEIGE,TRIM4#

 1
58540-2219001

RX30..3H..STD

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
58540-2218205

RX3#..3H..STD

BEIGE,BEIGE,TRIM4#

 1
58540-2218201

RX3#..3H..STD

BLACK,BLACK,TRIM2#

 1
Common parts
90168-40009
