RX30L-EMDW (1976)
Toyota Cressida
(7612-8008)DLX,SDX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22030 |
MX3#,RX3# |
1 | ||
| 45210-22030 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45210-22050 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45210-22030 |
MX32,RX3#..EUR,GEN,SA |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
MX3#,RX3# |
1 | ||
| 90363-28001 |
RX3#..DLX..EUR FOR TILT STEERING,LOWER |
1 | ||
| 90363-18038 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 90363-18001 |
RX3#..DLX..EUR FOR TILT STEERING,UPPER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
MX3#,RX3#,TX30 T=1.20,FOR STEERING WHEEL SIDE |
1 | ||
| 90520-17042 |
MX3#,RX3#,TX30 T=1.20,T=1.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
MX3#,RX3#,TX30 T=1.20,FOR STEERING WHEEL SIDE |
1 | ||
| 90520-17042 |
MX3#,RX3#,TX30 T=1.20,T=1.2 |
1 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
MX3#,RX3# |
1 | ||
| 90333-21008 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22080 |
MX3#,RX3# |
1 | ||
| 45870-22070 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45870-22080 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
MX3#,RX3#,TX30 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-22917 |
RX3#..LHD..(3FC,4F,5F) |
1 | ||
| 45253-22914 |
RX3#..LHD..(3FC,4F,5F) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22030 |
MX3#,RX3# |
1 | ||
| 45254-22031 |
MX3#,RX3#,TX30 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
MX3#,RX3#,TX30 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
MX3#,RX3#,TX30 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
MX3#,RX3# |
1 | ||
| 45269-35010 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45269-20010 |
MX3#,RX3# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30181 |
RX3#..LHD |
1 | ||
| 45280-30180 |
RX3#..LHD |
1 | ||
| 45280-22190 |
RX3#..LHD..DLX..EUR FOR TILT STEERING |
1 | ||
| 45280-30181 |
RX3#..LHD..(DLX,STD) |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2219001 |
RX3#..LHD..(3FC,4F,5F) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2219003 |
RX3#..LHD..(3FC,4F,5F) GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45286-2219005 |
RX3#..LHD..(3FC,4F,5F) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2212005 |
RX3#..LHD..(3FC,4F,5F) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2212001 |
RX3#..LHD..(3FC,4F,5F) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45287-2212003 |
RX3#..LHD..(3FC,4F,5F) GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45286-2219102 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) DARK WINE,UPPER,RED/MAROON,TRIM3# |
1 | ||
| 45286-2219101 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2219105 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45286-2224001 |
RX3#..LHD..DLX..EUR BLACK,UPPER & TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2212102 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) DARK WINE,LOWER,RED/MAROON,TRIM3# |
1 | ||
| 45287-2212101 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2224005 |
RX3#..LHD..DLX..EUR BEIGE,UPPER & TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45286-2224002 |
RX3#..LHD..DLX..EUR DARK WINE,UPPER&TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45287-2214001 |
RX3#..LHD..DLX..EUR BLACK,LOWER & TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2212105 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2214002 |
RX3#..LHD..DLX..EUR DARK WINE,LOWER&TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45287-2214005 |
RX3#..LHD..DLX..EUR BEIGE,LOWER & TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2219001 |
RX3#..LHD..(3FC,4F,5F) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2219003 |
RX3#..LHD..(3FC,4F,5F) GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45286-2219005 |
RX3#..LHD..(3FC,4F,5F) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2212005 |
RX3#..LHD..(3FC,4F,5F) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2212001 |
RX3#..LHD..(3FC,4F,5F) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45287-2212003 |
RX3#..LHD..(3FC,4F,5F) GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45286-2219102 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) DARK WINE,UPPER,RED/MAROON,TRIM3# |
1 | ||
| 45286-2219101 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2219105 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45286-2224001 |
RX3#..LHD..DLX..EUR BLACK,UPPER & TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2212102 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) DARK WINE,LOWER,RED/MAROON,TRIM3# |
1 | ||
| 45287-2212101 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2224005 |
RX3#..LHD..DLX..EUR BEIGE,UPPER & TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45286-2224002 |
RX3#..LHD..DLX..EUR DARK WINE,UPPER&TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45287-2214001 |
RX3#..LHD..DLX..EUR BLACK,LOWER & TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2212105 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2214002 |
RX3#..LHD..DLX..EUR DARK WINE,LOWER&TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45287-2214005 |
RX3#..LHD..DLX..EUR BEIGE,LOWER & TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22020 |
RX3#..LHD |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
MX3#,RX3#,TX30 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-22020 |
RX3#..LHD..DLX..EUR FOR TILT STEERING |
1 | ||
| 45807-22111 |
RX3#..LHD..(DLX,STD) |
1 | ||
| 45807-22110 |
RX3#..LHD |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91611-60616 | ||||
| 91655-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94531-01000 | ||||
| 94612-11001 | ||||
(7612-7801) ; (7801-8008)EUR,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-22080 |
RX3#..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
MX32,RX3#,TX30..EUR,GEN,SA |
2 | ||
| 90369-43001 |
MX3#,RX3# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
MX32,RX3#,TX30..EUR,GEN,SA |
2 | ||
| 90369-43001 |
MX3#,RX3# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
MX32,RX3#,TX30..EUR,GEN,SA |
1 | ||
| 90311-19001 |
MX3#,RX3# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22060 |
RX3#..LHD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22040 |
RX3#..LHD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-22080 |
RX3#..LHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
MX32,RX3#,TX30..EUR,GEN,SA |
1 | ||
| 90310-28027 |
MX3#,RX3# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-22100 |
RX3#..LHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-22040 |
RX3#..LHD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-20060 |
RX3#..LHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
MX3#,RX3# |
1 | ||
| 90170-20147 |
MX32,RX3#,TX30..EUR,GEN,SA |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-20010 |
RX3#..LHD T=1.95,T=1.95 |
1 | ||
| 45355-20010 |
RX3#..LHD T=2.10,T=2.10 |
1 | ||
| 45356-20010 |
RX3#..LHD T=2.15,T=2.15 |
1 | ||
| 45352-20010 |
RX3#..LHD T=2.00,T=2.00 |
1 | ||
| 45354-20010 |
RX3#..LHD T=2.05,T=2.05 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
MX32,RX3#,TX30..EUR,GEN,SA |
1 | ||
| 45357-30040 |
MX3#,RX3# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
MX3#,RX3# |
1 | ||
| 90930-03027 |
MX32,RX3#,TX30..EUR,GEN,SA |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-29145 |
RX3#..LHD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
MX3#,RX3# |
1 | ||
| 90171-12028 |
MX32,RX3#,TX30..EUR,GEN,SA |
1 | ||
| Common parts | ||||
| 90105-12003 | ||||
| 90461-06083 | ||||
| 90461-08183 | ||||
| 91611-60820 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||

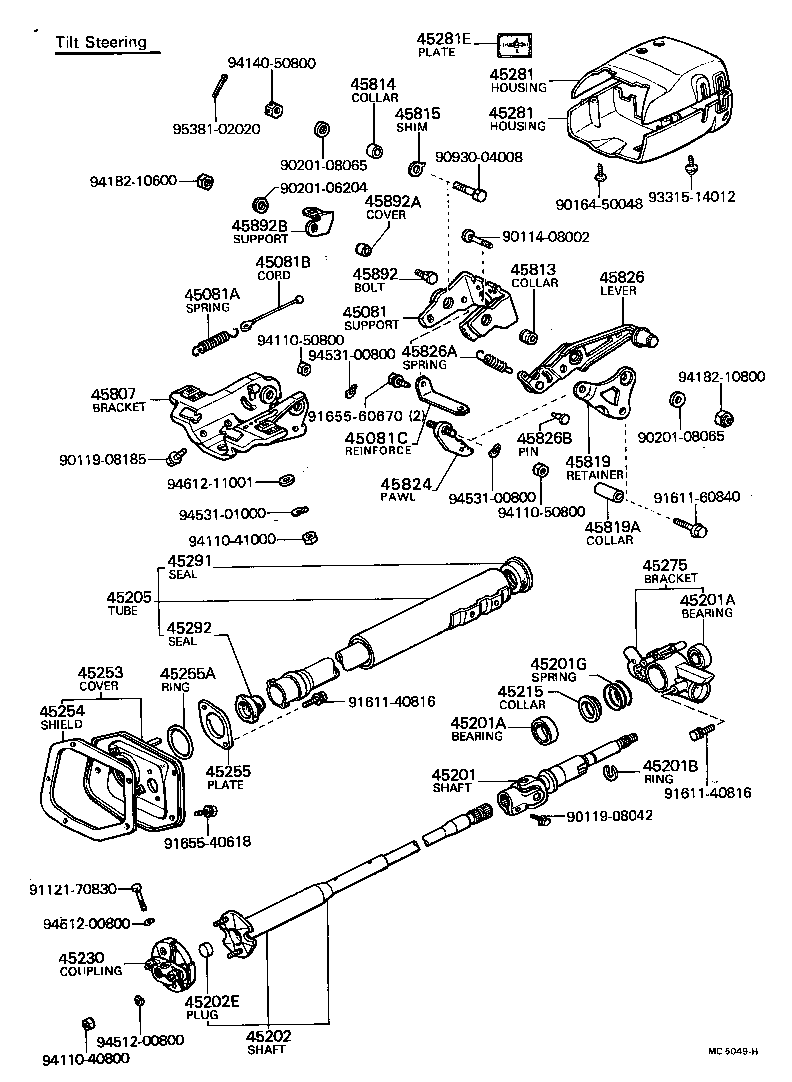

(7808-8008)GL ; (7808-8008)DLX..ARL,EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45081-22010 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
RX3#..DLX..EUR FOR TILT STEERING |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
RX3#..DLX..EUR L=107.5,FOR TILT STEERING |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22030 |
MX3#,RX3# |
1 | ||
| 45210-22030 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45210-22050 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45210-22030 |
MX32,RX3#..EUR,GEN,SA |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
MX3#,RX3# |
1 | ||
| 90363-28001 |
RX3#..DLX..EUR FOR TILT STEERING,LOWER |
1 | ||
| 90363-18038 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 90363-18001 |
RX3#..DLX..EUR FOR TILT STEERING,UPPER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
MX3#,RX3# |
1 | ||
| 90363-28001 |
RX3#..DLX..EUR FOR TILT STEERING,LOWER |
1 | ||
| 90363-18038 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 90363-18001 |
RX3#..DLX..EUR FOR TILT STEERING,UPPER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
MX3#,RX3#,TX30 T=1.20,FOR STEERING WHEEL SIDE |
1 | ||
| 90520-17042 |
MX3#,RX3#,TX30 T=1.20,T=1.2 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-22010 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45202E - PLUG, PLATE(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90333-21008 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22080 |
MX3#,RX3# |
1 | ||
| 45870-22070 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45870-22080 |
MX3#,RX3#,TX30..DLX,SDX,STD |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
RX3#..DLX..EUR FOR TILT STEERING,UPPER |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
MX3#,RX3#,TX30 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-22917 |
RX3#..LHD..(3FC,4F,5F) |
1 | ||
| 45253-22914 |
RX3#..LHD..(3FC,4F,5F) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22030 |
MX3#,RX3# |
1 | ||
| 45254-22031 |
MX3#,RX3#,TX30 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
MX3#,RX3#,TX30 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
MX3#,RX3#,TX30 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30181 |
RX3#..LHD |
1 | ||
| 45280-30180 |
RX3#..LHD |
1 | ||
| 45280-22190 |
RX3#..LHD..DLX..EUR FOR TILT STEERING |
1 | ||
| 45280-30181 |
RX3#..LHD..(DLX,STD) |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2219001 |
RX3#..LHD..(3FC,4F,5F) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2219003 |
RX3#..LHD..(3FC,4F,5F) GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45286-2219005 |
RX3#..LHD..(3FC,4F,5F) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2212005 |
RX3#..LHD..(3FC,4F,5F) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2212001 |
RX3#..LHD..(3FC,4F,5F) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45287-2212003 |
RX3#..LHD..(3FC,4F,5F) GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45286-2219102 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) DARK WINE,UPPER,RED/MAROON,TRIM3# |
1 | ||
| 45286-2219101 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2219105 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45286-2224001 |
RX3#..LHD..DLX..EUR BLACK,UPPER & TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2212102 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) DARK WINE,LOWER,RED/MAROON,TRIM3# |
1 | ||
| 45287-2212101 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2224005 |
RX3#..LHD..DLX..EUR BEIGE,UPPER & TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45286-2224002 |
RX3#..LHD..DLX..EUR DARK WINE,UPPER&TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45287-2214001 |
RX3#..LHD..DLX..EUR BLACK,LOWER & TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2212105 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2214002 |
RX3#..LHD..DLX..EUR DARK WINE,LOWER&TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45287-2214005 |
RX3#..LHD..DLX..EUR BEIGE,LOWER & TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2219001 |
RX3#..LHD..(3FC,4F,5F) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2219003 |
RX3#..LHD..(3FC,4F,5F) GRAY,UPPER,GRAY,TRIM1# |
1 | ||
| 45286-2219005 |
RX3#..LHD..(3FC,4F,5F) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45287-2212005 |
RX3#..LHD..(3FC,4F,5F) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2212001 |
RX3#..LHD..(3FC,4F,5F) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45287-2212003 |
RX3#..LHD..(3FC,4F,5F) GRAY,LOWER,GRAY,TRIM1# |
1 | ||
| 45286-2219102 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) DARK WINE,UPPER,RED/MAROON,TRIM3# |
1 | ||
| 45286-2219101 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BLACK,UPPER,BLACK,TRIM2# |
1 | ||
| 45286-2219105 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BEIGE,UPPER,BEIGE,TRIM4# |
1 | ||
| 45286-2224001 |
RX3#..LHD..DLX..EUR BLACK,UPPER & TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2212102 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) DARK WINE,LOWER,RED/MAROON,TRIM3# |
1 | ||
| 45287-2212101 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BLACK,LOWER,BLACK,TRIM2# |
1 | ||
| 45286-2224005 |
RX3#..LHD..DLX..EUR BEIGE,UPPER & TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45286-2224002 |
RX3#..LHD..DLX..EUR DARK WINE,UPPER&TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45287-2214001 |
RX3#..LHD..DLX..EUR BLACK,LOWER & TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2212105 |
RX3#..LHD..(3FC,4F,5F)..(DLX,STD) BEIGE,LOWER,BEIGE,TRIM4# |
1 | ||
| 45287-2214002 |
RX3#..LHD..DLX..EUR DARK WINE,LOWER&TILT STEERING,RED/MAROON,TRIM3# |
1 | ||
| 45287-2214005 |
RX3#..LHD..DLX..EUR BEIGE,LOWER & TILT STEERING,BEIGE,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22020 |
RX3#..LHD |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
MX3#,RX3#,TX30 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-22020 |
RX3#..LHD..DLX..EUR FOR TILT STEERING |
1 | ||
| 45807-22111 |
RX3#..LHD..(DLX,STD) |
1 | ||
| 45807-22110 |
RX3#..LHD |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
RX3#..DLX..EUR OD=17.996-18.003,D=17.996-18.003 |
1 | ||
| 45813-22040 |
RX3#..DLX..EUR OD=18.017-18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
RX3#..DLX..EUR OD=18.010-18.017,D=18.010-18.017 |
1 | ||
| 45813-22020 |
RX3#..DLX..EUR OD=18.003-18.010,D=18.003-18.010 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
RX3#..DLX..EUR OD=17.982-18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
RX3#..DLX..EUR OD=18.000-18.018,D=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22040 |
RX3#..DLX..EUR T=1.4,TILT STEERING |
2 | ||
| 45815-22020 |
RX3#..DLX..EUR T=0.5,TILT STEERING |
2 | ||
| 45815-22010 |
RX3#..DLX..EUR T=0.2,TILT STEERING |
2 | ||
| 45815-22070 |
RX3#..DLX..EUR T=0.5,T=0.5,TILT STEERING |
2 | ||
| 45815-22050 |
RX3#..DLX..EUR T=1.8,TILT STEERING |
2 | ||
| 45815-22060 |
RX3#..DLX..EUR T=0.2,T=0.2,TILT STEERING |
2 | ||
| 45815-22100 |
RX3#..DLX..EUR T=1.8,T=1.8,TILT STEERING |
2 | ||
| 45815-22090 |
RX3#..DLX..EUR T=1.4,T=1.4,TILT STEERING |
2 | ||
| 45815-22080 |
RX3#..DLX..EUR T=0.8,T=0.8,TILT STEERING |
2 | ||
| 45815-22030 |
RX3#..DLX..EUR T=0.8,TILT STEERING |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22010 |
RX3#..DLX..EUR FOR TILT STEERING |
1 | ||
| Common parts | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90930-04008 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91611-60840 | ||||
| 91655-40618 | ||||
| 91655-60670 | ||||
| 93315-14012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94531-01000 | ||||
| 94612-00800 | ||||
| 94612-11001 | ||||
| 95381-02020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
