MX83R-AEPQFQ (1988)
Toyota Cressida

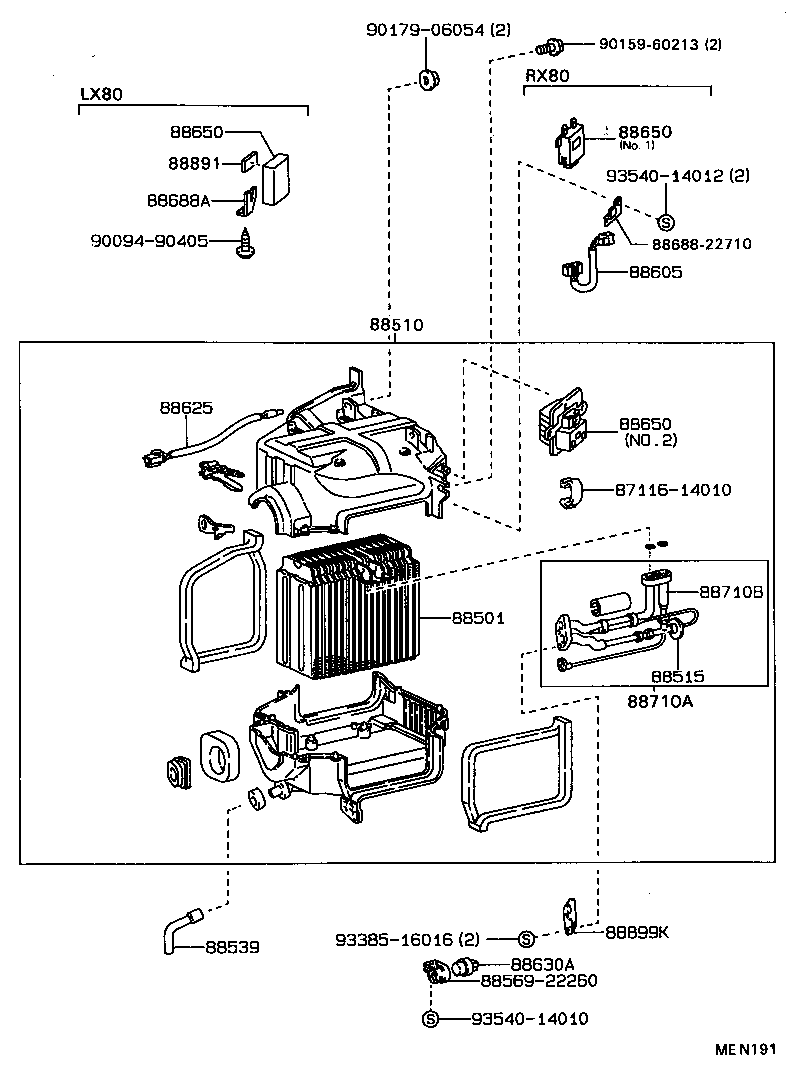

ILLUST NO. 1 OF 2(8808-9302)RHD ; (8808-9302)LX80
COOLING UNIT(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-22180 |
MX83 |
1 | ||
| 88501-22180 |
GX81,MX83,RX80..RHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-22640 |
MX83 AUTO---MAKER OPT |
1 | ||
| 88510-22520 |
MX83 AUTO |
1 | ||
| 88510-22430 |
MX83..GLX AUTO---MAKER OPT |
1 | ||
| 88510-22430 |
GX81,MX83..4FC AUTO---MAKER OPT |
1 | ||
| 88510-22640 |
MX83 AUTO---MAKER OPT,AUSTRALIA GRANDE PACKAGE |
1 | ||
| 88510-22580 |
MX83 MANUAL---DEALER OPT |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22080 |
GX81,MX8#..ARL,GEN |
1 | ||
| 88515-22082 |
GX81,MX83..4FC AUTO...MAKER OPT |
1 | ||
| 88515-22081 |
GX81,MX8#..GLX |
1 | ||
| 88515-22081 |
GX81,MX83..4FC MANUAL...DEALER OPT OR AUTO...DEALER OPT |
1 | ||
| 88515-22081 |
MX83 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22130 |
GX81,MX83,RX80..RHD |
1 | ||
| 88539-22130 |
MX83 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-22700 |
MX83 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-22170 |
GX81,MX83..RHD |
1 | ||
| 88625-22170 |
MX83 W(AIR CONDITIONER) |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
MX81..GD,GL;GX81,MX83..4FC |
1 | ||
| 90987-03001 |
MX81..GD,GLX;GX81,MX83..RHD |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22340 |
GX81,MX8#..GLX NO.2 |
1 | ||
| 88650-22340 |
GX81,MX83..4FC NO.2 |
1 | ||
| 88650-22340 |
GX81,MX83 NO.2 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22340 |
GX81,MX8#..GLX NO.2 |
1 | ||
| 88650-22340 |
GX81,MX83..4FC NO.2 |
1 | ||
| 88650-22340 |
GX81,MX83 NO.2 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22340 |
GX81,MX8#..GLX NO.2 |
1 | ||
| 88650-22340 |
GX81,MX83..4FC NO.2 |
1 | ||
| 88650-22340 |
GX81,MX83 NO.2 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-22420 |
GX81,MX83..RHD |
1 | ||
| 88710-22420 |
MX83 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-22460 |
MX83 |
1 | ||
| 88710-22460 |
GX81,MX83..RHD |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-22140 |
GX81,MX83..4FC |
1 | ||
| 88578-22140 |
LX80;GX81,MX83..RHD |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-22150 |
GX81,MX83,RX80..RHD |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88569-22260 | ||||
| 88688-22710 | ||||
| 90094-90405 | ||||
| 90159-60213 | ||||
| 90179-06054 | ||||
| 93385-16016 | ||||
| 93540-14010 | ||||
| 93540-14012 | ||||
