MX83R-AEPQFQ (1988)
Toyota Cressida
ILLUST NO. 3 OF 3(8808-9302)GX81,MX83..RHD
W(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 88899-22210 |
GX81,MX83..RHD |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-22070 |
MX83..GLX AIR MIX CONTROL |
1 | ||
| 87106-22010 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 AIR MIX CONTROL |
1 | ||
| 87106-22020 |
MX83 MODE CONTROL |
1 | ||
| 87106-22070 |
MX83..GL AIR MIX CONTROL |
1 | ||
| 87106-22030 |
MX83 AUSTRIA GRANDE PACKAGE & W(AUTO AIR CONDITIONER),AIR MIX CONTROL |
1 | ||
| 87106-22110 |
MX83 AUSTRALIA GRAND PACKAGE & W(AUTO AIR CONDITIONER),MODE CONTROL |
1 | ||
| 87106-22020 |
MX83 W(AUTO AIR CONDITIONER),MODE CONTROL |
1 | ||
| 87106-22020 |
MX83 |
1 | ||
| 87106-22090 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 W(AUTO AIR CONDITIONER),AIR MIX CONTROL |
1 | ||
| 87106-22090 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 MANUAL AIR CONDITIONER---DEALER OPT,AIR MIX CONTROL |
1 | ||
| 88585C - SHAFT | ||||
| 88585-22030 |
GX81,MX83..4FC |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-22700 |
GX81,MX83..4FC |
1 | ||
| 88648H - WIRE, AIR CONDITIONER | ||||
| 88648-22180 |
GX81,MX83..RHD |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-22241 |
MX83..GLX |
1 | ||
| 88650-22241 |
GX81,MX83 |
1 | ||
| 88650-22240 |
GX81,MX8#..ARL,GEN |
1 | ||
| 88650-22241 |
GX81,MX8#..ARL,GEN |
1 | ||
| 88650-22241 |
MX83..GL;GX81,MX81..GEN |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88790-24040 |
GX81,MX83..RHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-22250 | ||||
| 88569-22270 | ||||
| 88569-3A220 | ||||
| 88718-2A140 | ||||
| 88899-22120 | ||||
| 93510-55012 | ||||
ILLUST NO. 1 OF 3(8808- )
HEATER BLOWER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-22010 |
GX81,MX83,RX80..RHD |
1 | ||
| 87103-20050 |
GX81,MX83,RX80..RHD |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-22010 |
GX81,MX83,RX80..RHD |
1 | ||
| 87103-20050 |
GX81,MX83,RX80..RHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20100 |
GX81,MX83,RX80..RHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20100 |
GX81,MX83,RX80..RHD |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-22070 |
MX83..GLX AIR MIX CONTROL |
1 | ||
| 87106-22010 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 AIR MIX CONTROL |
1 | ||
| 87106-22020 |
MX83 MODE CONTROL |
1 | ||
| 87106-22070 |
MX83..GL AIR MIX CONTROL |
1 | ||
| 87106-22030 |
MX83 AUSTRIA GRANDE PACKAGE & W(AUTO AIR CONDITIONER),AIR MIX CONTROL |
1 | ||
| 87106-22110 |
MX83 AUSTRALIA GRAND PACKAGE & W(AUTO AIR CONDITIONER),MODE CONTROL |
1 | ||
| 87106-22020 |
MX83 W(AUTO AIR CONDITIONER),MODE CONTROL |
1 | ||
| 87106-22020 |
MX83 |
1 | ||
| 87106-22090 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 W(AUTO AIR CONDITIONER),AIR MIX CONTROL |
1 | ||
| 87106-22090 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 MANUAL AIR CONDITIONER---DEALER OPT,AIR MIX CONTROL |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-22181 |
MX83 |
1 | ||
| 87130-22182 |
MX83 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-22181 |
MX83 |
1 | ||
| 87130-22182 |
MX83 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-22060 |
GX81,LX80,MX8#,RX8#..ARL,GEN |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-22060 |
GX81,LX80,MX8#,RX8#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90179-06239 | ||||
| 91665-40616 | ||||
| 93510-55012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8808- )
BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06239 | ||||
| 90480-40014 | ||||

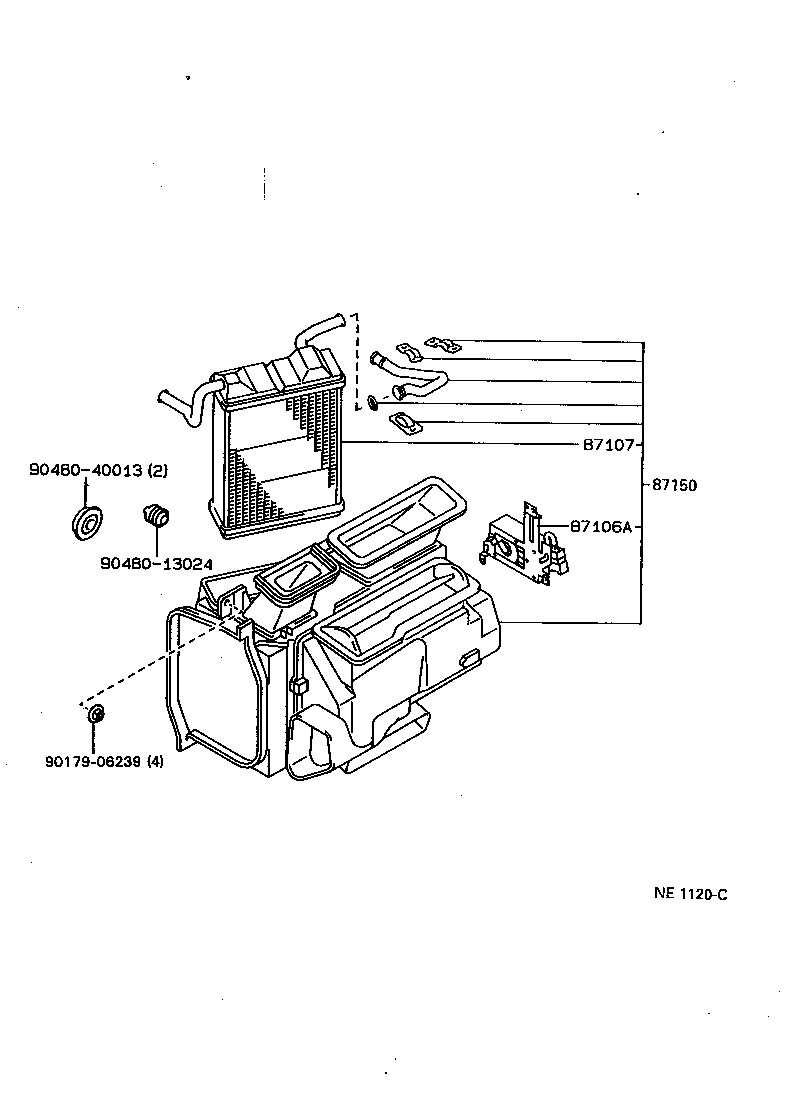

ILLUST NO. 2 OF 3(8808-9302)MX83
HEATER RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-22070 |
MX83..GLX AIR MIX CONTROL |
1 | ||
| 87106-22010 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 AIR MIX CONTROL |
1 | ||
| 87106-22020 |
MX83 MODE CONTROL |
1 | ||
| 87106-22070 |
MX83..GL AIR MIX CONTROL |
1 | ||
| 87106-22030 |
MX83 AUSTRIA GRANDE PACKAGE & W(AUTO AIR CONDITIONER),AIR MIX CONTROL |
1 | ||
| 87106-22110 |
MX83 AUSTRALIA GRAND PACKAGE & W(AUTO AIR CONDITIONER),MODE CONTROL |
1 | ||
| 87106-22020 |
MX83 W(AUTO AIR CONDITIONER),MODE CONTROL |
1 | ||
| 87106-22020 |
MX83 |
1 | ||
| 87106-22090 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 W(AUTO AIR CONDITIONER),AIR MIX CONTROL |
1 | ||
| 87106-22090 |
MX83 AIR INLET CONTROL |
1 | ||
| 87106-22070 |
MX83 MANUAL AIR CONDITIONER---DEALER OPT,AIR MIX CONTROL |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-22170 |
MX83 |
1 | ||
| 87107-22170 |
GX81,MX83,RX80..RHD |
1 | ||
| 87107-22170 |
MX83,RX80..RHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-22440 |
MX83 |
1 | ||
| 87150-22640 |
MX83 AUSTRALIA SPEC & W(AUTO AIR CONDITIONER) |
1 | ||
| 87150-22420 |
MX83..GLX NEW ZEALAND SPEC & W(AUTO AIR CONDITIONER) |
1 | ||
| 87150-22420 |
MX83 W(AUTO AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90480-13024 | ||||
| 90480-40013 | ||||
