MX83R-AEPEFQ (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

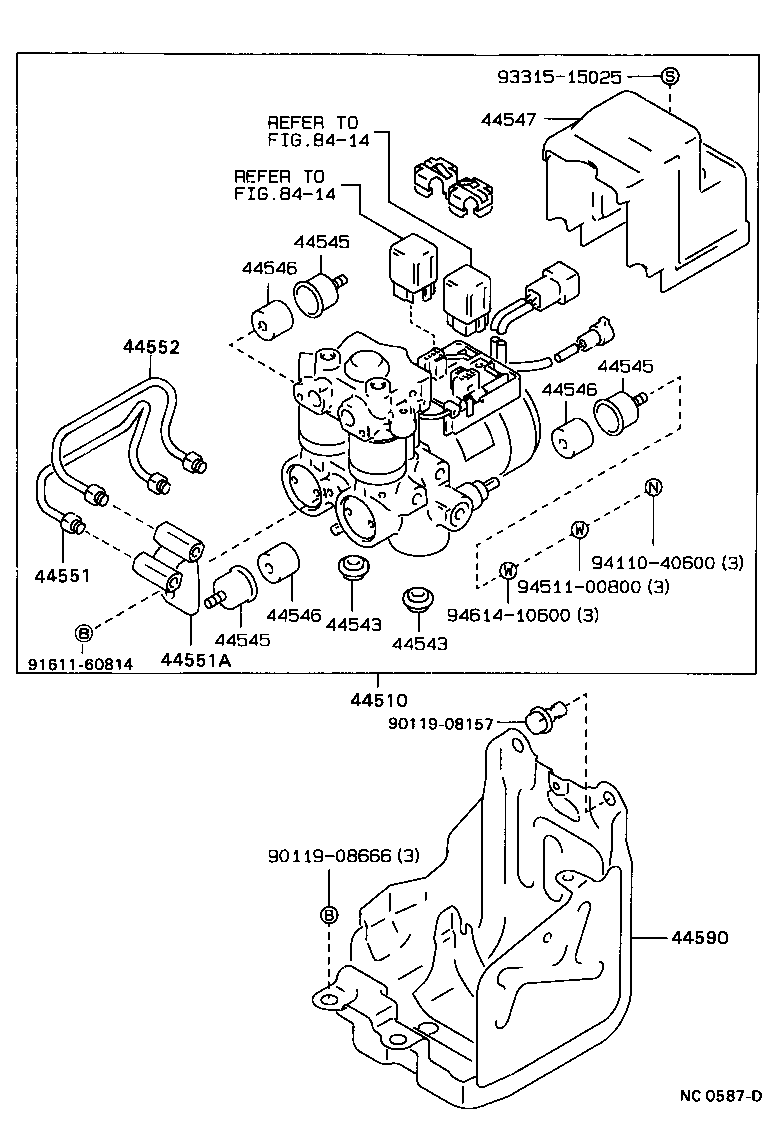

ILLUST NO. 2 OF 2(8908- )MX83

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

diagram 44510 44543 44543 44545 44545 44545 44546 44546 44546 44547 44551 44551A 44552 44590 8414 8414 9011908157 9011908666 9161160814 9331515025 9411040600 9451100800 9461410600
Part # Description Qty Price
Common parts
90119-08157
90119-08666
91611-60814
93315-15025
94110-40600
94511-00800
94614-10600
Linked diagrams
8414

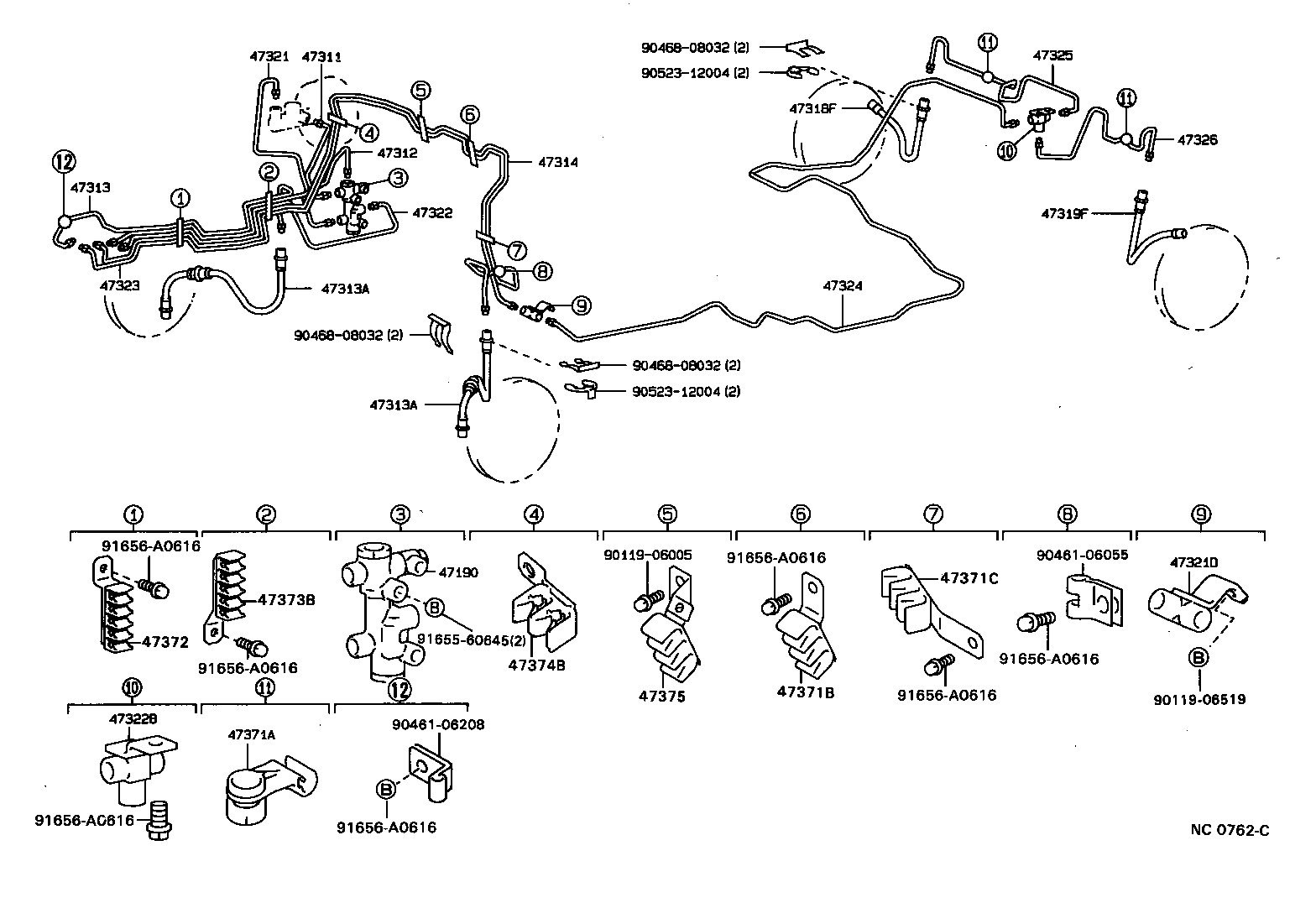

(8808- )MX83

Click highlighted areas on diagram

diagram 47190 47311 47312 47313 47313A 47318F 47319F 47321 47321D 47322 47322B 47324 47325 47326 47371A 47372 47373B 47373B 9011906005 9011906519 9046106055 9046808032 9046808032 9046808032 9052312004 9052312004 9165160645 91656A0616 91656A0616 91656A0616 91656A0616
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22080

MX83

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22390

MX83

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22180

GX81,MX83,RX80..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22350

MX83

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GX81,LX80,MX8#,RX8#..ARL,GEN

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02568

GX81,MX8#,RX81..ARL,GEN

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02568

GX81,MX8#,RX81..ARL,GEN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22190

MX83

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10118

GX81,LX80,MX8#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22210

GX81,MX83..RHD

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10228

GX81,MX8#,RX81

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22240

MX83

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-22060

GX81,MX8#,RX81

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-22070

GX81,MX8#,RX81

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22310

GX81,MX8#,RX81

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22230

MX83

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22220

MX83

LH

 1
47371-22380

MX83

RH

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22220

MX83

LH

 1
47371-22380

MX83

RH

 1
Common parts
90119-06005
90119-06519
90461-06055
90468-08032
90523-12004
91651-60645
91656-A0616

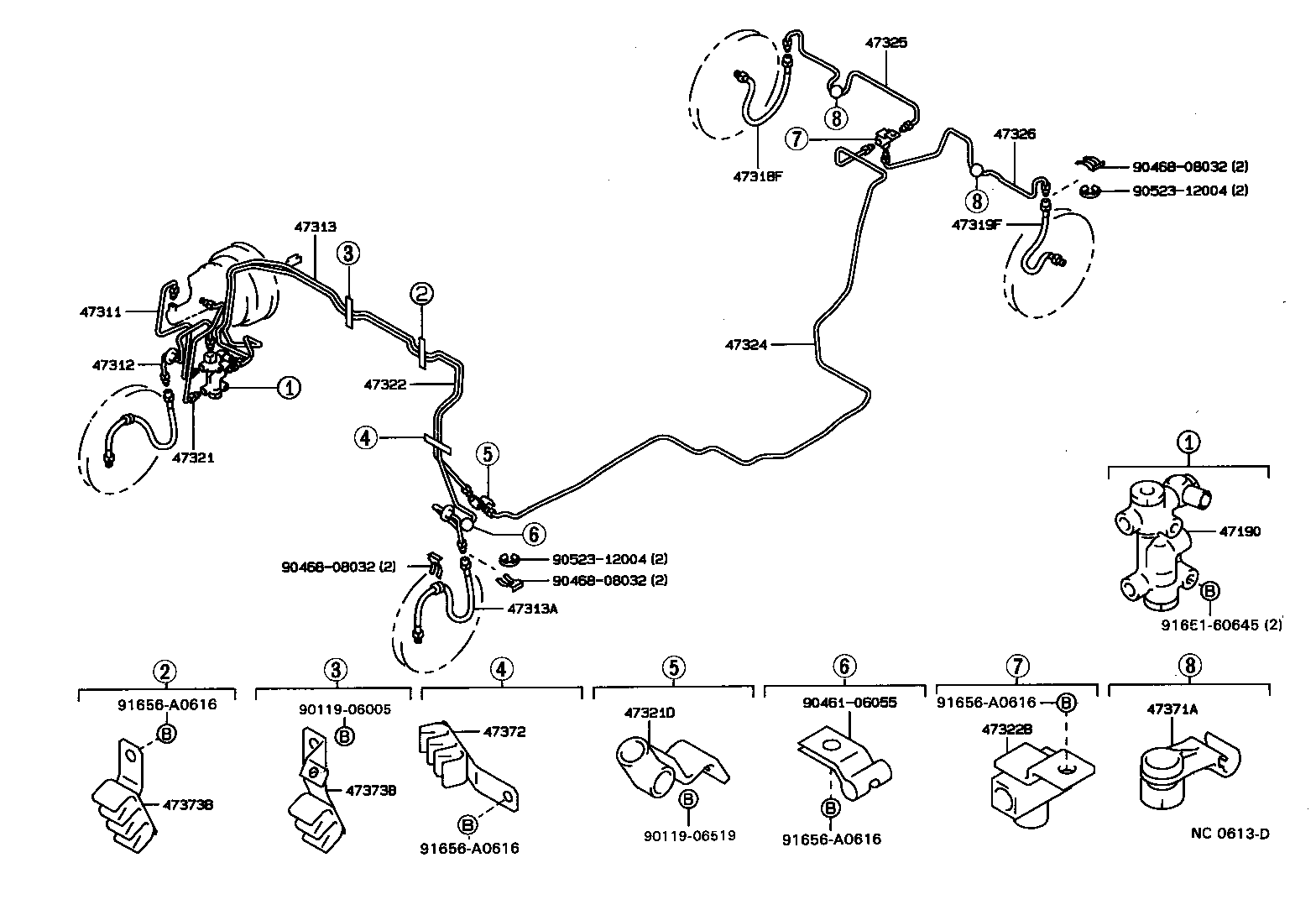

ILLUST NO. 1 OF 2(8908- )MX83

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

diagram 47190 47311 47312 47313 47313A 47313A 47314 47318F 47319F 47321 47321D 47322 47322B 47323 47324 47325 47326 47371A 47371B 47371C 47372 47373B 47374B 47375 9011906005 9011906519 9046106055 9046106208 9046808032 9046808032 9046808032 9052312004 9052312004 9165560645 91656A0616 91656A0616 91656A0616 91656A0616 91656A0616 91656A0616 91656A0616
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22080

MX83

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22390

MX83

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22180

GX81,MX83,RX80..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22350

MX83

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GX81,LX80,MX8#,RX8#..ARL,GEN

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GX81,LX80,MX8#,RX8#..ARL,GEN

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02568

GX81,MX8#,RX81..ARL,GEN

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02568

GX81,MX8#,RX81..ARL,GEN

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22190

MX83

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10118

GX81,LX80,MX8#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22210

GX81,MX83..RHD

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10228

GX81,MX8#,RX81

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22240

MX83

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-22060

GX81,MX8#,RX81

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-22070

GX81,MX8#,RX81

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22310

GX81,MX8#,RX81

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22230

MX83

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22220

MX83

LH

 1
47371-22380

MX83

RH

 1
Common parts
90119-06005
90119-06519
90461-06055
90461-06208
90468-08032
90523-12004
91655-60645
91656-A0616
