MX83R-AEPEFQ (1988)
Toyota Cressida
Production
Aug 1988
-
Aug 1990
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9302)7MGE

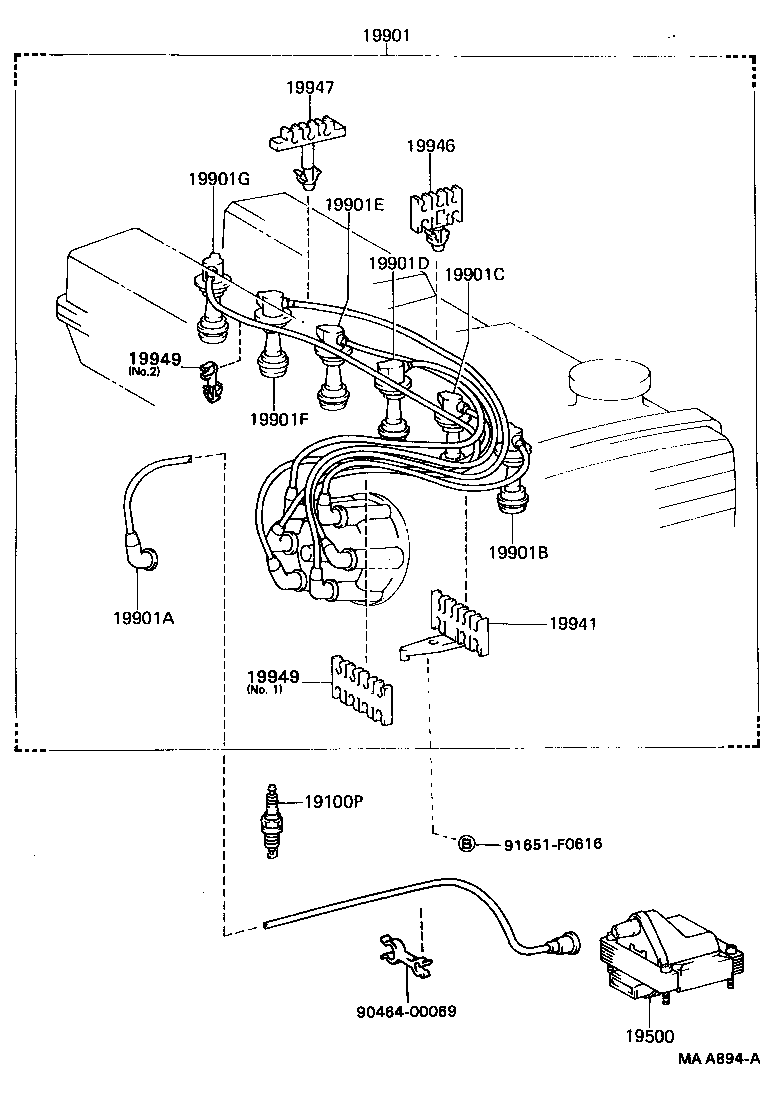

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01121 |
7MGE..MX83 PQ16R |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02154 |
7MGE..MX83 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21429 |
7MGE..MX83 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13303 |
7MGE..MX83 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12874 |
7MGE..MX83 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12875 |
7MGE..MX83 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12876 |
7MGE..MX83 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12877 |
7MGE..MX83 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12878 |
7MGE..MX83 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-12879 |
7MGE..MX83 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 19941-42010 |
7MGE..MX83 |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00424 |
7MGE..MX83 |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00425 |
7MGE..MX83 |
2 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90929-01129 |
7MGE..MX83 NO.1 |
1 | ||
| 90929-01212 |
7MGE..MX83 NO.2 |
1 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90929-01129 |
7MGE..MX83 NO.1 |
1 | ||
| 90929-01212 |
7MGE..MX83 NO.2 |
1 | ||
| Common parts | ||||
| 90464-00069 | ||||
| 91651-F0616 | ||||
