MX81L-AEPEEV (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )V

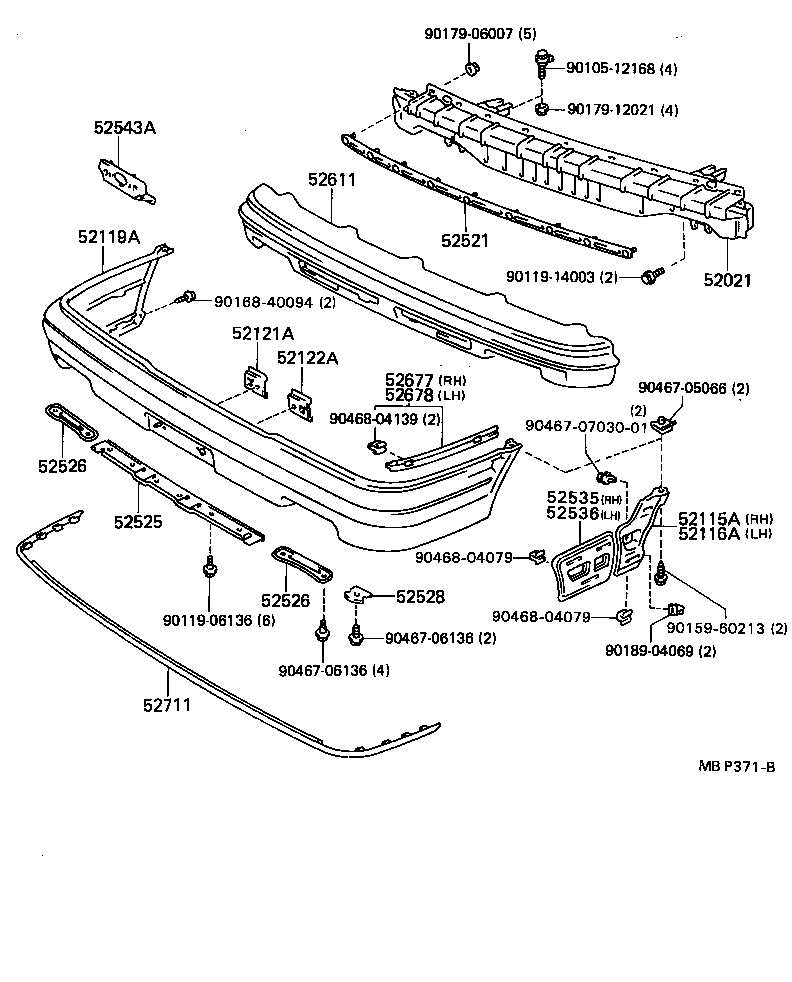

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52121A 52122A 52521 52525 52526 52526 52528 52535 52536 52543A 52611 52677 52678 52711 9010512168 9011906136 9011914003 9015960213 9016840094 9017906007 9017912021 9018904069 9046705066 9046706136 9046706136 904670703001 9046804079 9046804079 9046804139
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-22220

MX81,RX8#..V

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-22140

GX81,LX80,MX8#,RX8#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-22120

GX81,LX80,MX8#,RX8#

 1
52119A - COVER, FRONT BUMPER
52119-22620

MX81,RX8#..(GL,XL)..V

 1
52119-22918

MX81,RX8#..GL..V

W(PAINTED COLLOR BUMPER)

 1
52119-22918

MX81..GD,GL

 1
52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH
52121-22090

MX81,RX8#..V

 1
52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH
52121-22090

MX81,RX8#..V

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-22100

GX81,LX80,MX8#,RX8#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-22020

MX81,RX8#..V

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-22011

MX81,RX8#..V

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-22011

MX81,RX8#..V

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-22020

MX81,RX8#..V

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-22020

GX81,LX80,MX8#,RX8#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-22020

GX81,LX80,MX8#,RX8#

 1
52543A - SEAL, FRONT BUMPER SIDE
52543-22010

MX81,RX8#..V

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-22130

MX81,RX8#..V

 1
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52677-22010

GX81,LX80,MX8#,RX8#

 1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52677-22010

GX81,LX80,MX8#,RX8#

 1
52711 - MOULDING, FRONT BUMPER
52711-22101

MX81,RX8#..V

 1
52711-22100

MX81,RX80..V

 1
52711-22170

MX81,RX81

 1
Common parts
90105-12168
90119-06136
90119-14003
90159-60213
90168-40094
90179-06007
90179-12021
90189-04069
90467-05066
90467-06136
90467-0703001
90468-04079
90468-04139
