MX81L-AEPEEV (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5ME,7MGE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

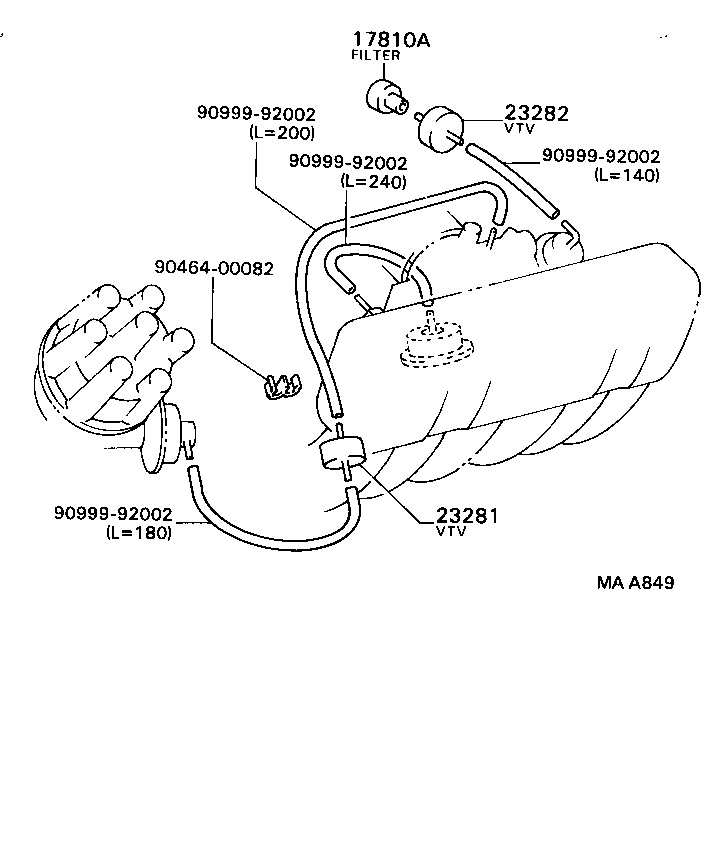

(8808-9302)5ME..V

Click highlighted areas on diagram

diagram 17810A 23281 23282 9046400082 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
17810A - FILTER ASSY, AIR
90925-06006

5ME,7MGE..MX8#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01095

5ME..MX81..V

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01021

5ME..MX81

 1
Common parts
90464-00082
90999-92002
