MX81L-AEMEEV (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 5ME
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)5ME

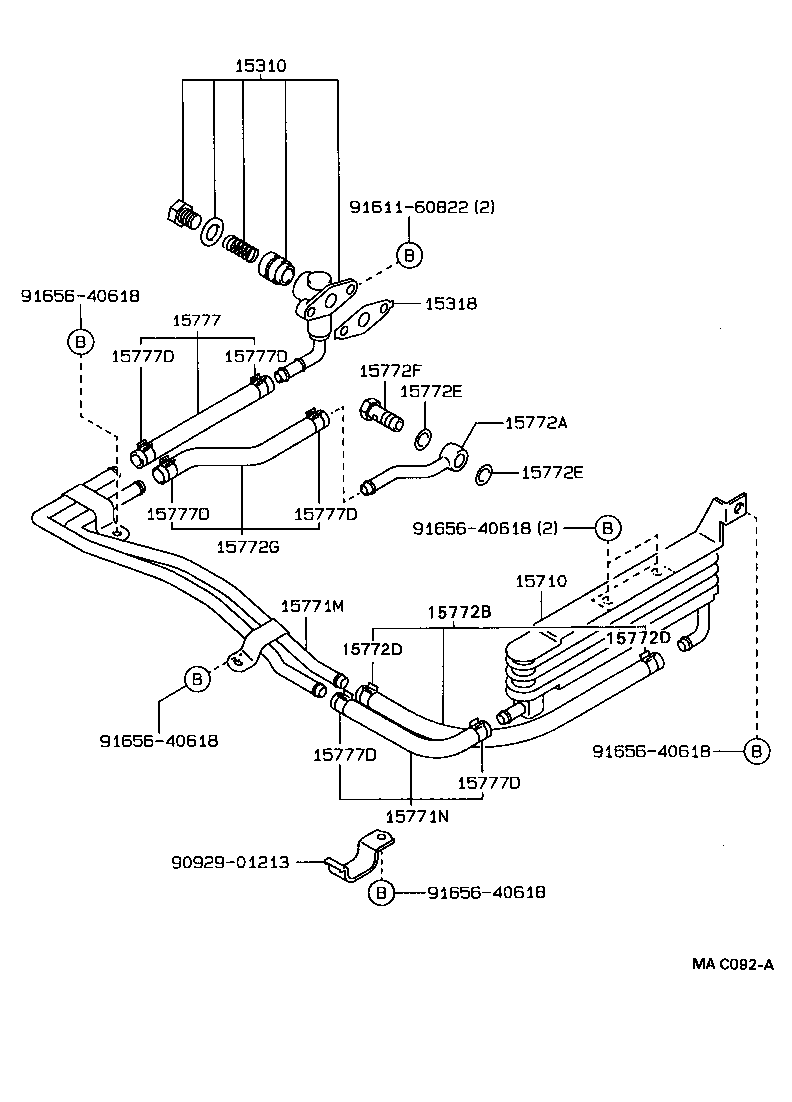

Click highlighted areas on diagram

diagram 15310 15318 15710 15771M 15771N 15772A 15772B 15772D 15772D 15772E 15772E 15772F 15772G 15777 15777D 15777D 15777D 15777D 15777D 15777D 9092901213 9161160822 9165640618 9165640618 9165640618 9165640618 9165640618
Part # Description Qty Price
15310 - REGULATOR ASSY, OIL PRESSURE
15310-43010

5ME..MX81..V

 1
15318 - GASKET, OIL PRESSURE REGULATOR BODY
15318-42011

5ME..MX81..V

 1
15318-42010

5ME..MX81..V

 1
15318-45011

5ME..MX81..V

 1
15710 - COOLER ASSY, OIL
15710-43060

5ME..MX81..V

 1
15771M - PIPE, OIL
15707-43040

5ME..MX81..V

 1
15771N - HOSE, OIL, NO.2(FOR OIL PIPE)
15778-43050

5ME..MX81..V

 1
15772A - UNION(FOR OIL PIPE)
90405-10019

5ME..MX81..V

 1
15772B - HOSE, OIL, NO.1(FOR OIL PIPE)
15779-43050

5ME..MX81..V

 1
15772D - CLAMP OR CLIP, OIL COOLER HOSE
90467-15018

5ME..MX81..V

 2
15772D - CLAMP OR CLIP, OIL COOLER HOSE
90467-15018

5ME..MX81..V

 2
15772E - GASKET(FOR OIL PIPE)
90430-12018

5ME..MX81..V

 2
90430-12023

5ME..MX81..V

 2
15772E - GASKET(FOR OIL PIPE)
90430-12018

5ME..MX81..V

 2
90430-12023

5ME..MX81..V

 2
15772F - BOLT, UNION(FOR OIL PIPE)
90401-12009

5ME..MX81..V

 1
15772G - HOSE, OIL, NO.2 (FOR OIL PIPE)
15776-43030

5ME..MX81..V

 1
15777 - HOSE, OIL COOLER
15777-43040

5ME..MX81..V

 1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-15018

5ME..MX81..V

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-15018

5ME..MX81..V

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-15018

5ME..MX81..V

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-15018

5ME..MX81..V

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-15018

5ME..MX81..V

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-15018

5ME..MX81..V

 6
Common parts
90929-01213
91611-60822
91656-40618
