MX81L-AEMEEV (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 5ME
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)5ME

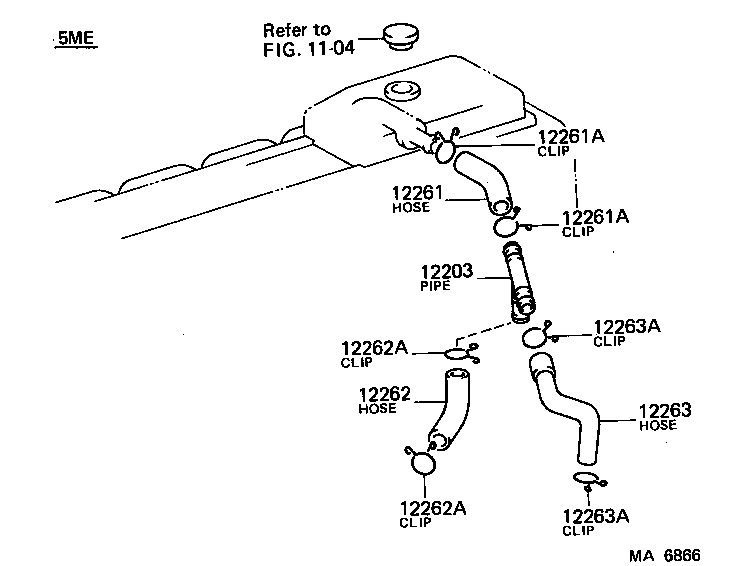

Click highlighted areas on diagram

diagram 1104 12203 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
90413-14013

5ME..MX81

 1
12261 - HOSE, VENTILATION
12261-41090

5ME..MX81

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20002

5ME..MX81

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20002

5ME..MX81

 2
12262 - HOSE, VENTILATION, NO.2
12262-43030

5ME..MX81

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-20002

5ME..MX81

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-20002

5ME..MX81

 2
12263 - HOSE, VENTILATION, NO.3
12263-41050

5ME..MX81

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-16035

5ME..MX81

THROTTLE BODY SIDE

 1
90467-19122

5ME..MX81

3WAY SIDE

 1
90467-19122

5ME..MX81

3 WAY SIDE

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-16035

5ME..MX81

THROTTLE BODY SIDE

 1
90467-19122

5ME..MX81

3WAY SIDE

 1
90467-19122

5ME..MX81

3 WAY SIDE

 1
Linked diagrams
1104
