MX73L-XEPGFW (1984)

Toyota Cressida

Production Aug 1984 - Aug 1986
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5MGE

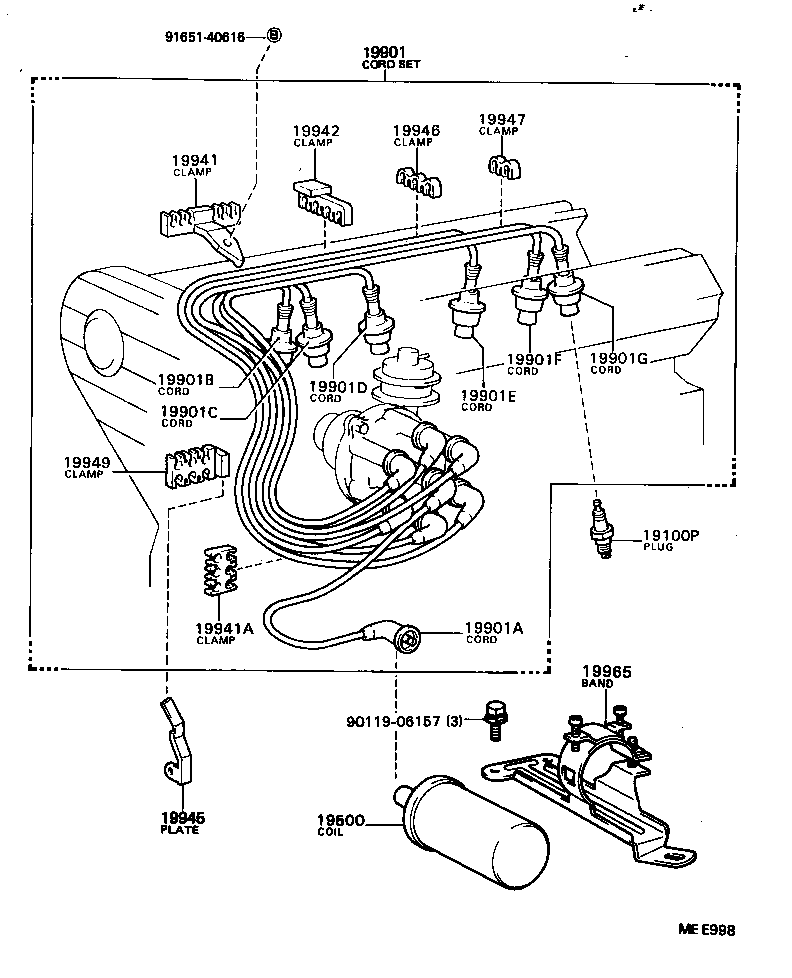

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19941A 19942 19945 19946 19947 19949 19965 9011906157 9165140616
Part # Description Qty Price
19500 - COIL ASSY, IGNITION
90919-02113

5MGE..MX73

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21356

5MGE..MX73..EUR,GEN,SA

 1
19901A - CORD, COIL RESISTIVE
90919-13178

5MGE..MX73..EUR,GEN,SA

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12419

5MGE..MX73..EUR,GEN,SA

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12420

5MGE..MX73..EUR,GEN,SA

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12421

5MGE..MX73..EUR,GEN,SA

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12422

5MGE..MX73..EUR,GEN,SA

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12423

5MGE..MX73..EUR,GEN,SA

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12424

5MGE..MX73..EUR,GEN,SA

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-43010

5MGE..MX73

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00285

5MGE..MX73..EUR,GEN,SA

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00286

5MGE..MX73

 1
19945 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.3
19945-43010

5MGE..MX73

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00287

5MGE..MX73

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00288

5MGE..MX73

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00273

5MGE..MX73

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03096

5MGE..MX73

 1
Common parts
90119-06157
91651-40616
