MX73L-XEPEEC (1984)

Toyota Cressida

Production Aug 1984 - Aug 1986
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)SWZ

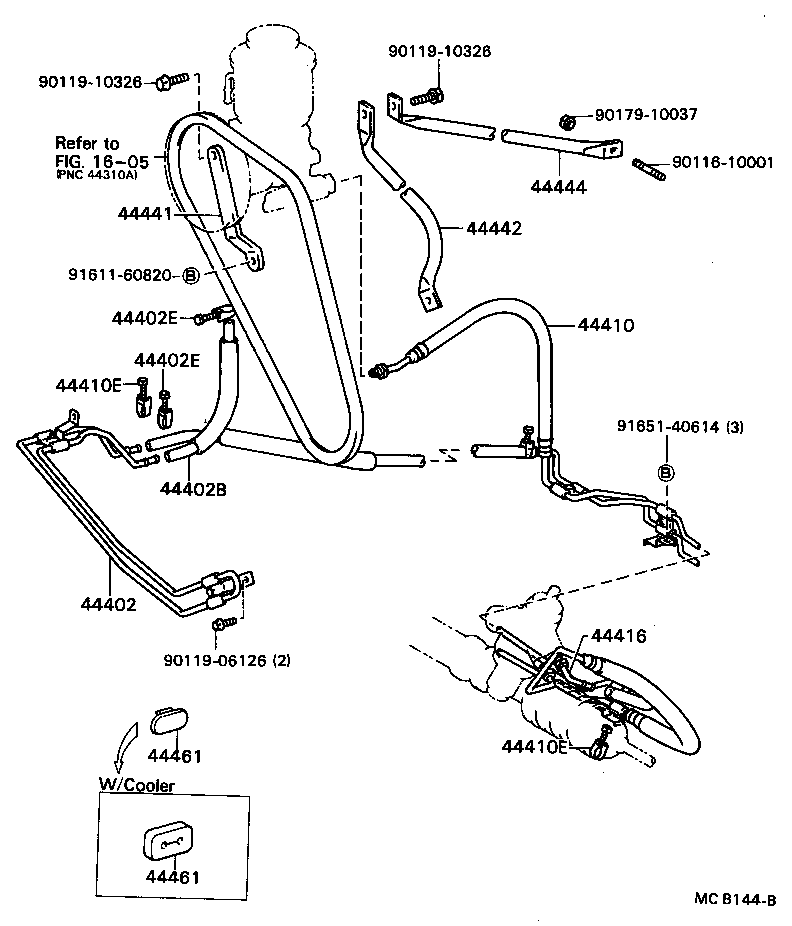

Click highlighted areas on diagram

diagram 1605 44402 44402B 44402E 44402E 44410 44410E 44410E 44416 44441 44442 44444 44461 44461 9011610001 9011906126 9011910326 9011910326 9017910037 9161160820 9165140614
Part # Description Qty Price
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-22120

MX73;GX71..LHD

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-24040

MX7#..EFI..(ARL,EUR)

 1
44412-24040

MX7#..SWZ

 1
44412-22380

MX73..EUG;MX73..GEN,ME,SA

 1
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MX73;GX71,MX72,RX7#..LHD

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MX73;GX71,MX72,RX7#..LHD

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-22200

MX73..ME;MX73..LHD..EUG

 1
44410-22220

MX7#..SWZ

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22160

GX71,MX7#..LHD

 1
44441 - BRACKET, PUMP, FRONT
44441-22050

MX7#..EFI..(ARL,EUR)

 1
44441-22050

MX7#..SWZ

 1
44442 - BRACKET, PUMP, REAR
44442-22040

MX7#..EFI..(ARL,EUR)

 1
44442-22040

MX7#..SWZ

 1
44444 - STAY, PUMP, REAR
44444-22060

MX7#..EFI..(ARL,EUR)

 1
44444-22060

MX7#..SWZ

 1
44461 - INSULATOR, TUBE REFRIGERANT
44461-22010

MX7#,RX7#

W/COOLER

 1
44461-22020

LX71,MX7#,RX7#

 2
44461 - INSULATOR, TUBE REFRIGERANT
44461-22010

MX7#,RX7#

W/COOLER

 1
44461-22020

LX71,MX7#,RX7#

 2
Common parts
90116-10001
90119-06126
90119-10326
90179-10037
91611-60820
91651-40614
Linked diagrams
1605

(8411- )MX73..ME

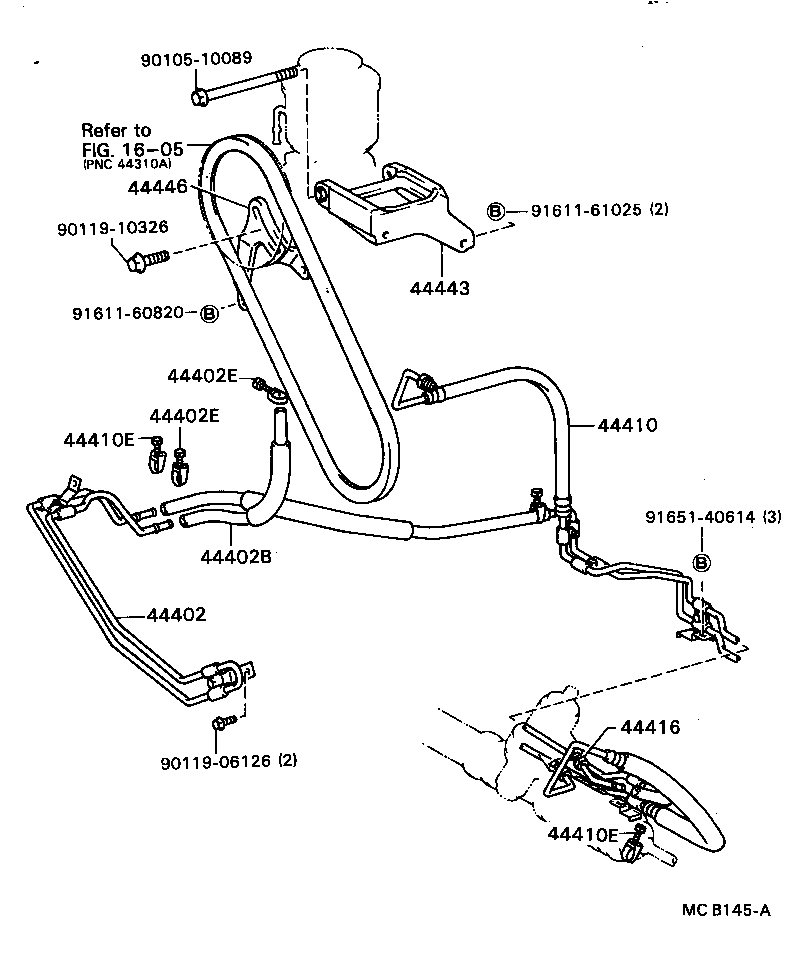

Click highlighted areas on diagram

diagram 1605 44402 44402B 44402E 44402E 44410 44410E 44410E 44416 44443 44446 9010510089 9011906126 9011910326 9161160820 9161161025 9165140614
Part # Description Qty Price
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-22120

MX73;GX71..LHD

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-24040

MX7#..EFI..(ARL,EUR)

 1
44412-24040

MX7#..SWZ

 1
44412-22380

MX73..EUG;MX73..GEN,ME,SA

 1
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MX73;GX71,MX72,RX7#..LHD

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MX73;GX71,MX72,RX7#..LHD

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-22200

MX73..ME;MX73..LHD..EUG

 1
44410-22220

MX7#..SWZ

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22160

GX71,MX7#..LHD

 1
Common parts
90105-10089
90119-06126
90119-10326
91611-60820
91611-61025
91651-40614
Linked diagrams
1605
