MX73L-XEMGEV (1984)
Toyota Cressida
(8411-8608)MX73..GEN,ME ; (8411- )MX73..SA

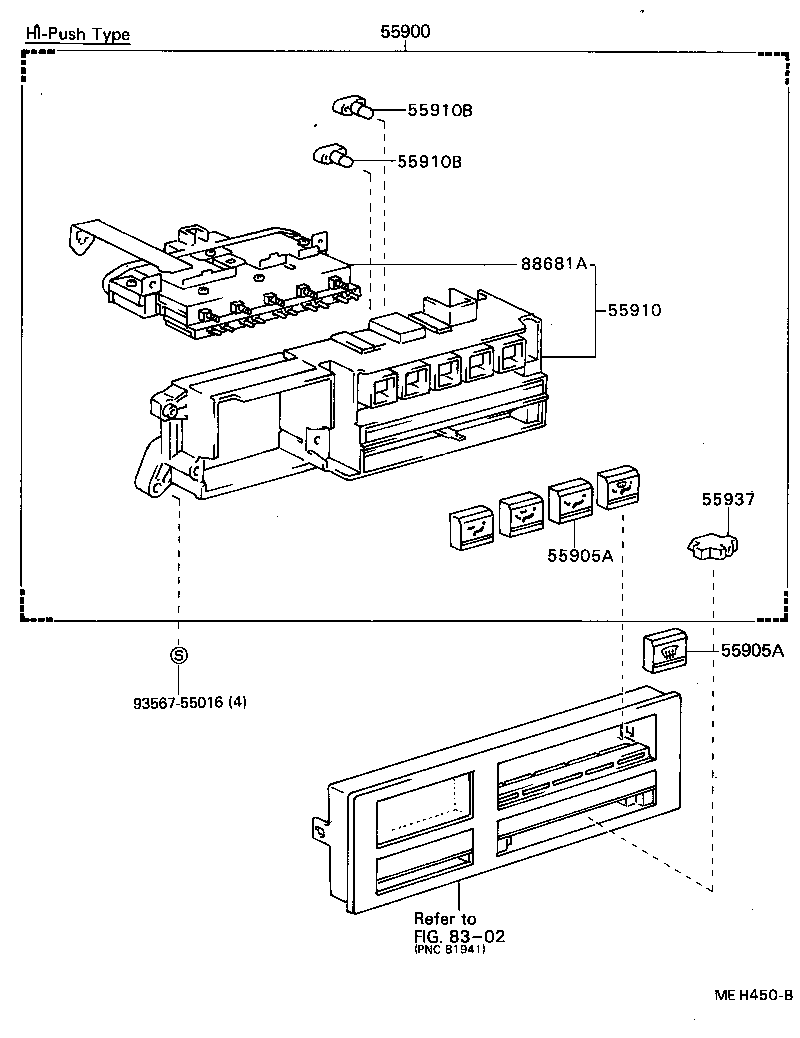

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
MX73..GEN,ME,SA AUTO |
1 | ||
| 55905-22140 |
MX73..GEN,ME,SA DEF |
1 | ||
| 55905-22160 |
MX73..ME FACE |
1 | ||
| 55905-22170 |
MX73..ME BI-LEVEL |
1 | ||
| 55905-22111 |
MX73..(GD,GLX,GTX)..(GEN,ME) BI-LEVEL |
1 | ||
| 55905-22180 |
MX73..ME FOOT |
1 | ||
| 55905-22121 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT |
1 | ||
| 55905-22131 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT & DEF |
1 | ||
| 55905-22141 |
MX73..(GD,GLX,GTX)..(GEN,ME) DEF |
1 | ||
| 55905-22101 |
MX73..(GD,GLX,GTX)..(GEN,ME) FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
MX73..GEN,ME,SA AUTO |
1 | ||
| 55905-22140 |
MX73..GEN,ME,SA DEF |
1 | ||
| 55905-22160 |
MX73..ME FACE |
1 | ||
| 55905-22170 |
MX73..ME BI-LEVEL |
1 | ||
| 55905-22111 |
MX73..(GD,GLX,GTX)..(GEN,ME) BI-LEVEL |
1 | ||
| 55905-22180 |
MX73..ME FOOT |
1 | ||
| 55905-22121 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT |
1 | ||
| 55905-22131 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT & DEF |
1 | ||
| 55905-22141 |
MX73..(GD,GLX,GTX)..(GEN,ME) DEF |
1 | ||
| 55905-22101 |
MX73..(GD,GLX,GTX)..(GEN,ME) FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
MX73..GEN,ME,SA AUTO |
1 | ||
| 55905-22140 |
MX73..GEN,ME,SA DEF |
1 | ||
| 55905-22160 |
MX73..ME FACE |
1 | ||
| 55905-22170 |
MX73..ME BI-LEVEL |
1 | ||
| 55905-22111 |
MX73..(GD,GLX,GTX)..(GEN,ME) BI-LEVEL |
1 | ||
| 55905-22180 |
MX73..ME FOOT |
1 | ||
| 55905-22121 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT |
1 | ||
| 55905-22131 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT & DEF |
1 | ||
| 55905-22141 |
MX73..(GD,GLX,GTX)..(GEN,ME) DEF |
1 | ||
| 55905-22101 |
MX73..(GD,GLX,GTX)..(GEN,ME) FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
MX73..GEN,ME,SA AUTO |
1 | ||
| 55905-22140 |
MX73..GEN,ME,SA DEF |
1 | ||
| 55905-22160 |
MX73..ME FACE |
1 | ||
| 55905-22170 |
MX73..ME BI-LEVEL |
1 | ||
| 55905-22111 |
MX73..(GD,GLX,GTX)..(GEN,ME) BI-LEVEL |
1 | ||
| 55905-22180 |
MX73..ME FOOT |
1 | ||
| 55905-22121 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT |
1 | ||
| 55905-22131 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT & DEF |
1 | ||
| 55905-22141 |
MX73..(GD,GLX,GTX)..(GEN,ME) DEF |
1 | ||
| 55905-22101 |
MX73..(GD,GLX,GTX)..(GEN,ME) FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
MX73..GEN,ME,SA AUTO |
1 | ||
| 55905-22140 |
MX73..GEN,ME,SA DEF |
1 | ||
| 55905-22160 |
MX73..ME FACE |
1 | ||
| 55905-22170 |
MX73..ME BI-LEVEL |
1 | ||
| 55905-22111 |
MX73..(GD,GLX,GTX)..(GEN,ME) BI-LEVEL |
1 | ||
| 55905-22180 |
MX73..ME FOOT |
1 | ||
| 55905-22121 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT |
1 | ||
| 55905-22131 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT & DEF |
1 | ||
| 55905-22141 |
MX73..(GD,GLX,GTX)..(GEN,ME) DEF |
1 | ||
| 55905-22101 |
MX73..(GD,GLX,GTX)..(GEN,ME) FACE |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22330 |
MX7#..LHD W/LEVER TYPE *AAC |
1 | ||
| 55910-22320 |
MX7#..EFI W/*HEA |
1 | ||
| 55910-22280 |
MX73..GEN,ME,SA W/PUSH TYPE *AAC |
1 | ||
| 55910-22390 |
MX73..GD,GTX W/*AAC |
1 | ||
| 55910-22320 |
GX71,LX70,MX73,RX7#..LHD W/*HEA |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 81850-22400 |
MX73..(GD,GLX,GTX)..(GEN,ME) 12V 1.4W,WHITE BULB |
1 | ||
| 81850-14650 |
MX73..(GD,GLX,GTX)..(GEN,ME) 12V 1.4W,GREEN BULB |
1 | ||
| 84999-22010 |
MX73..GEN,ME,SA |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
MX7#..ARL,EUR,ME W/LEVER TYPE |
4 | ||
| 55905-30081 |
GX71,LX70,MX73,RX7#..LHD |
3 | ||
| 55905-22150 |
MX73..GEN,ME,SA W/PUSH TYPE *AAC |
1 | ||
| 55905-22151 |
MX73..(GD,GLX,GTX)..(GEN,ME) W/*AAC |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-22060 |
MX7#..LHD W/LEVER TYPE *AAC |
1 | ||
| 88032-22040 |
MX73..GEN,ME,SA W/PUSH TYPE *AAC |
1 | ||
| 88681A - SWITCH, HEATER CONTROL VACUUM, NO.1 | ||||
| 88681-22020 |
GX71,LX7#,MX7#,RX70..LHD AIR INLET DAMPER CONTROL,LEVER |
1 | ||
| 88681-22041 |
MX73..(GD,GLX,GTX)..(GEN,ME) W/*AAC |
1 | ||
| 88681-22040 |
MX73..GEN,ME,SA W/PUSH TYPE *AAC |
1 | ||
| Common parts | ||||
| 87293-22010 | ||||
| 93319-14008 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8608- )MX73..GD,GLX,GTX..GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-22151 |
MX73..(GD,GLX,GTX)..(GEN,ME) W/PUSH TYPE *AAC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
MX73..GEN,ME,SA AUTO |
1 | ||
| 55905-22140 |
MX73..GEN,ME,SA DEF |
1 | ||
| 55905-22160 |
MX73..ME FACE |
1 | ||
| 55905-22170 |
MX73..ME BI-LEVEL |
1 | ||
| 55905-22111 |
MX73..(GD,GLX,GTX)..(GEN,ME) BI-LEVEL |
1 | ||
| 55905-22180 |
MX73..ME FOOT |
1 | ||
| 55905-22121 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT |
1 | ||
| 55905-22131 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT & DEF |
1 | ||
| 55905-22141 |
MX73..(GD,GLX,GTX)..(GEN,ME) DEF |
1 | ||
| 55905-22101 |
MX73..(GD,GLX,GTX)..(GEN,ME) FACE |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22100 |
MX73..GEN,ME,SA AUTO |
1 | ||
| 55905-22140 |
MX73..GEN,ME,SA DEF |
1 | ||
| 55905-22160 |
MX73..ME FACE |
1 | ||
| 55905-22170 |
MX73..ME BI-LEVEL |
1 | ||
| 55905-22111 |
MX73..(GD,GLX,GTX)..(GEN,ME) BI-LEVEL |
1 | ||
| 55905-22180 |
MX73..ME FOOT |
1 | ||
| 55905-22121 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT |
1 | ||
| 55905-22131 |
MX73..(GD,GLX,GTX)..(GEN,ME) HEAT & DEF |
1 | ||
| 55905-22141 |
MX73..(GD,GLX,GTX)..(GEN,ME) DEF |
1 | ||
| 55905-22101 |
MX73..(GD,GLX,GTX)..(GEN,ME) FACE |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22330 |
MX7#..LHD W/LEVER TYPE *AAC |
1 | ||
| 55910-22320 |
MX7#..EFI W/*HEA |
1 | ||
| 55910-22280 |
MX73..GEN,ME,SA W/PUSH TYPE *AAC |
1 | ||
| 55910-22390 |
MX73..GD,GTX W/*AAC |
1 | ||
| 55910-22320 |
GX71,LX70,MX73,RX7#..LHD W/*HEA |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 81850-22400 |
MX73..(GD,GLX,GTX)..(GEN,ME) 12V 1.4W,WHITE BULB |
1 | ||
| 81850-14650 |
MX73..(GD,GLX,GTX)..(GEN,ME) 12V 1.4W,GREEN BULB |
1 | ||
| 84999-22010 |
MX73..GEN,ME,SA |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 81850-22400 |
MX73..(GD,GLX,GTX)..(GEN,ME) 12V 1.4W,WHITE BULB |
1 | ||
| 81850-14650 |
MX73..(GD,GLX,GTX)..(GEN,ME) 12V 1.4W,GREEN BULB |
1 | ||
| 84999-22010 |
MX73..GEN,ME,SA |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
MX7#..ARL,EUR,ME W/LEVER TYPE |
4 | ||
| 55905-30081 |
GX71,LX70,MX73,RX7#..LHD |
3 | ||
| 55905-22150 |
MX73..GEN,ME,SA W/PUSH TYPE *AAC |
1 | ||
| 55905-22151 |
MX73..(GD,GLX,GTX)..(GEN,ME) W/*AAC |
1 | ||
| 88681A - SWITCH, HEATER CONTROL VACUUM, NO.1 | ||||
| 88681-22020 |
GX71,LX7#,MX7#,RX70..LHD AIR INLET DAMPER CONTROL,LEVER |
1 | ||
| 88681-22041 |
MX73..(GD,GLX,GTX)..(GEN,ME) W/*AAC |
1 | ||
| 88681-22040 |
MX73..GEN,ME,SA W/PUSH TYPE *AAC |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
