MX73L-XEMEEC (1984)

Toyota Cressida

Production Aug 1984 - Aug 1986
Engine 5ME
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5ME

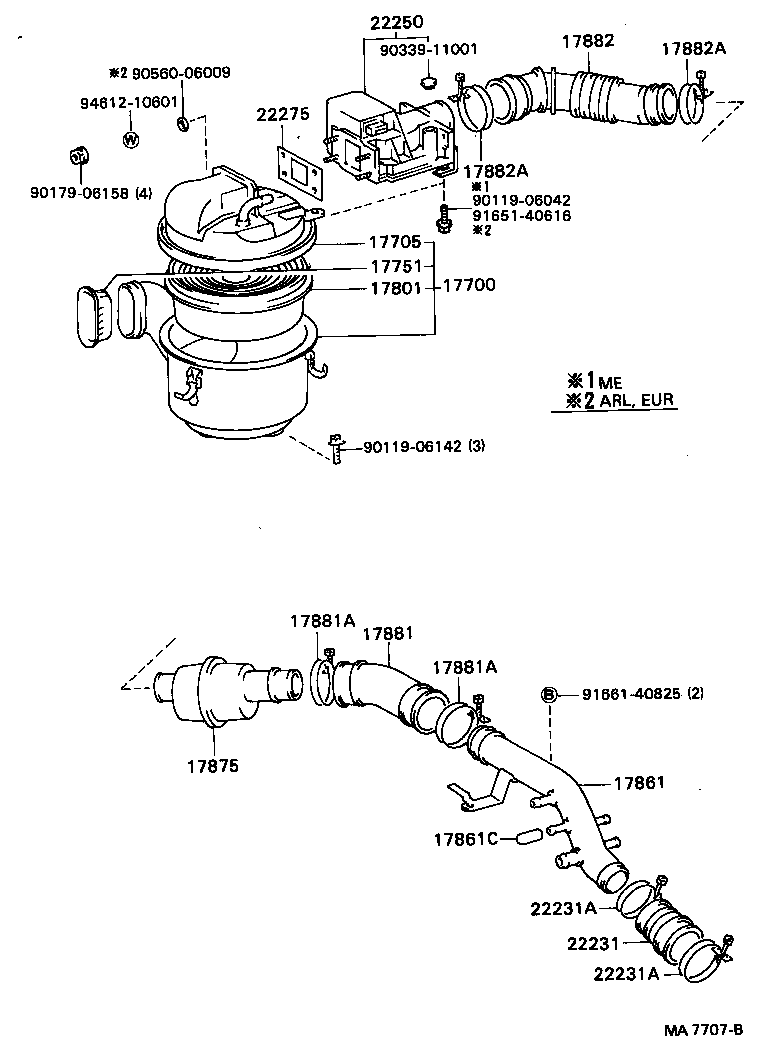

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17861 17861C 17875 17881 17881A 17881A 17882 17882A 17882A 22231 22231A 22231A 22250 22275 9011906042 9011906142 9017906158 9033911001 9056006009 9165140616 9166140825 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-43120

5ME..MX7#..ARL,EUR

 1
17700-70040

5ME..MX73..ME

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43090

5ME..MX7#..ARL,EUR

 1
17705-70040

5ME..MX73..GEN,ME

 1
17751 - INLET, AIR CLEANER, NO.1
17751-70010

5M#..MX7#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70020

5M#..MX7#

 1
17861 - CONNECTOR, INTAKE AIR
17860-43030

5ME..MX7#

 1
17861C - CAP(FOR INTAKE AIR CONNECTOR)
90339-07016

5ME..MX7#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-43070

5ME..MX7#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-43080

5ME..MX7#..ARL,EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

5ME..MX7#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

5ME..MX7#

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-43120

5ME..MX7#..ARL,EUR

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

5ME..MX7#

PIPE SIDE

 1
96111-10800

5ME..MX7#

AIR FLOW METER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

5ME..MX7#

PIPE SIDE

 1
96111-10800

5ME..MX7#

AIR FLOW METER SIDE

 1
22231 - HOSE, THROTTLE BODY
22231-41030

5ME..MX7#

 1
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

5ME..MX7#

THROTTLE BODY SIDE

 1
96111-10710

5ME..MX7#

CONNECTOR SIDE

 1
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

5ME..MX7#

THROTTLE BODY SIDE

 1
96111-10710

5ME..MX7#

CONNECTOR SIDE

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-43260

5ME..MX7#

 1
22275 - GASKET, AIR FLOW METER
22275-41010

5ME..MX7#

 1
Common parts
90119-06042
90119-06142
90179-06158
90339-11001
90560-06009
91651-40616
91661-40825
94612-10601
