MX73L-XEMEEC (1984)
Toyota Cressida

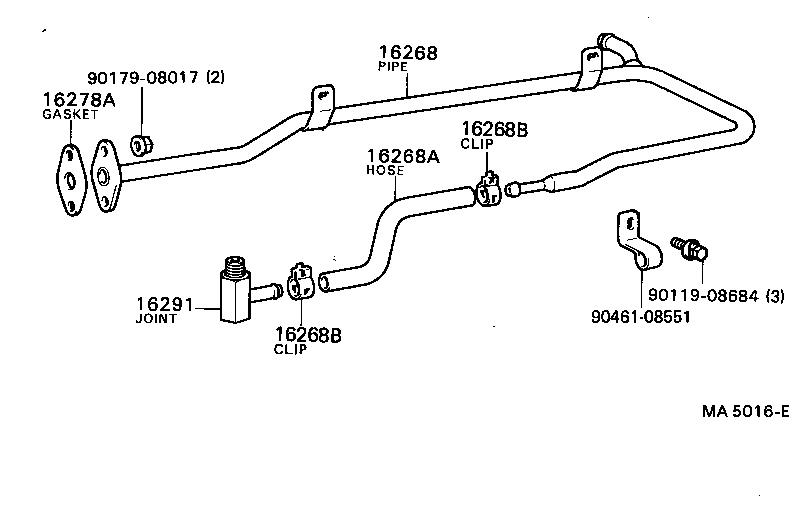

(8408- )5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41140 |
5M#..MX7# |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16267-45020 |
5ME..MX7# |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5M#..MX7# |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5M#..MX7# |
2 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5M#..MX7# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53026 |
5ME..MX7#..ARL,EUR |
1 | ||
| Common parts | ||||
| 90119-08684 | ||||
| 90179-08017 | ||||
| 90461-08551 | ||||
(8408- )5M#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-70090 |
5M#..MX73..5F..EUR |
1 | ||
| 16400-70090 |
5M#..MX73..5F..EUR |
1 | ||
| 16400-70110 |
5ME..MX73..5F..(GEN,ME) |
1 | ||
| 16400-70110 |
5ME..MX73..5F..(GEN,ME) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
5M#..MX7# |
1 | ||
| 23322-54010 |
5M#..MX7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
5M#..MX7# |
1 | ||
| 96711-19007 |
5M#..MX7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
5M#..MX7# |
1 | ||
| 16401-63010 |
5M#..MX7# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-70090 |
5M#..MX7#..EUR |
1 | ||
| 16403-70090 |
5M#..MX7#..EUR |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-70110 |
5M#..MX73..ARL,GEN,ME,SA |
1 | ||
| 16441-70110 |
5M#..MX73..ARL,GEN,ME,SA |
1 | ||
| 16441-70090 |
5M#..MX7#..EUR |
1 | ||
| 16441-70090 |
5M#..MX7#..EUR |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-63030 |
5M#..MX7#..EUR |
1 | ||
| 16442-63030 |
5M#..MX7#..EUR |
1 | ||
| 16462-63030 |
5M#..MX73..ARL,GEN,ME,SA |
1 | ||
| 16462-63030 |
5M#..MX73..ARL,GEN,ME,SA |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-15320 |
5M#..MX73..ARL,GEN,ME,SA |
2 | ||
| 16463-15320 |
5M#..MX73..ARL,GEN,ME,SA |
2 | ||
| 16443-15321 |
5M#..MX7#..EUR |
2 | ||
| 16443-15321 |
5M#..MX7#..EUR |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-63030 |
5M#..MX7#..EUR |
1 | ||
| 16451-63030 |
5M#..MX7#..EUR |
1 | ||
| 16452-64070 |
5M#..MX73..ARL,GEN,ME,SA |
1 | ||
| 16452-64070 |
5M#..MX73..ARL,GEN,ME,SA |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
5M#..MX7#..EUR |
1 | ||
| 16452-63030 |
5M#..MX7#..EUR |
1 | ||
| 16452-64070 |
5M#..MX73..ARL,GEN,ME,SA |
1 | ||
| 16452-64070 |
5M#..MX73..ARL,GEN,ME,SA |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-70090 |
5M#..MX73..5F |
1 | ||
| 16461-70090 |
5M#..MX73..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
5M#..MX7# |
1 | ||
| 16462-63030 |
5M#..MX7# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
5M#..MX7# |
2 | ||
| 16463-15320 |
5M#..MX7# |
2 | ||

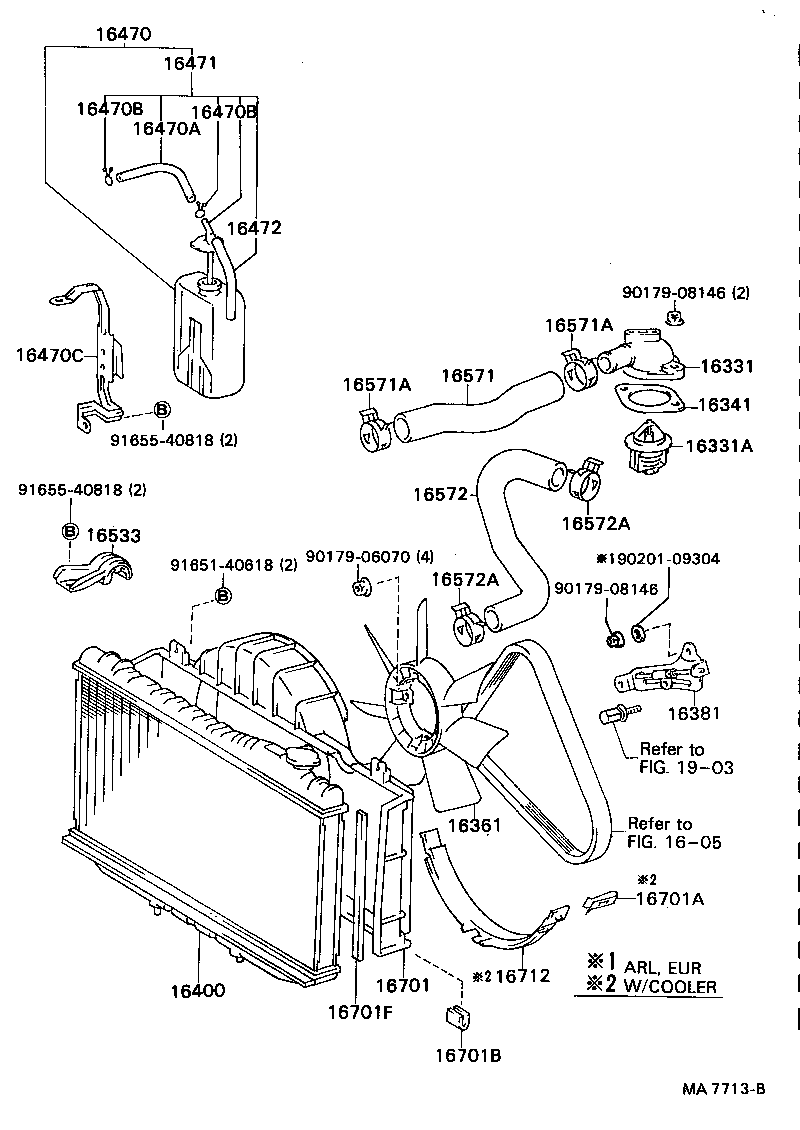

(8408- )5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-43020 |
5ME..MX7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03055 |
5M#..MX7# *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-41010 |
5ME..MX7# |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
5M#..MX7# 7 BLADES |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-43010 |
5M#..MX7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70090 |
5M#..MX73..5F..EUR |
1 | ||
| 16400-70110 |
5ME..MX73..5F..(GEN,ME) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-70050 |
5ME..MX7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
5M#..MX7# *H,L=220 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5M#..MX7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5M#..MX7# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-70030 |
5M#..MX7# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70030 |
5M#..MX7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
5M#..MX73 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70010 |
5M#..MX7# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-43070 |
5ME..MX7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5M#..MX7# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#..MX7# OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5M#..MX7# RADIATOR SIDE |
1 | ||
| 90467-37002 |
5M#..MX7# OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-43060 |
5ME..MX7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
5M#..MX7# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
5M#..MX7# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-41080 |
5M#..MX7# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
5M#..MX7# W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
5M#..MX7# |
2 | ||
| 16701F - SEAL(FOR FAN SHROUD) | ||||
| 16832-41010 |
5M#..MX7# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-41070 |
5M#..MX7# W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90201-09304 | ||||
| 91651-40618 | ||||
| 91655-40818 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1903 | ||||
