MX62R-XEPNEQ (1980)
Toyota Cressida
Production
Sep 1980
-
Jul 1984
Engine
5ME
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )5ME

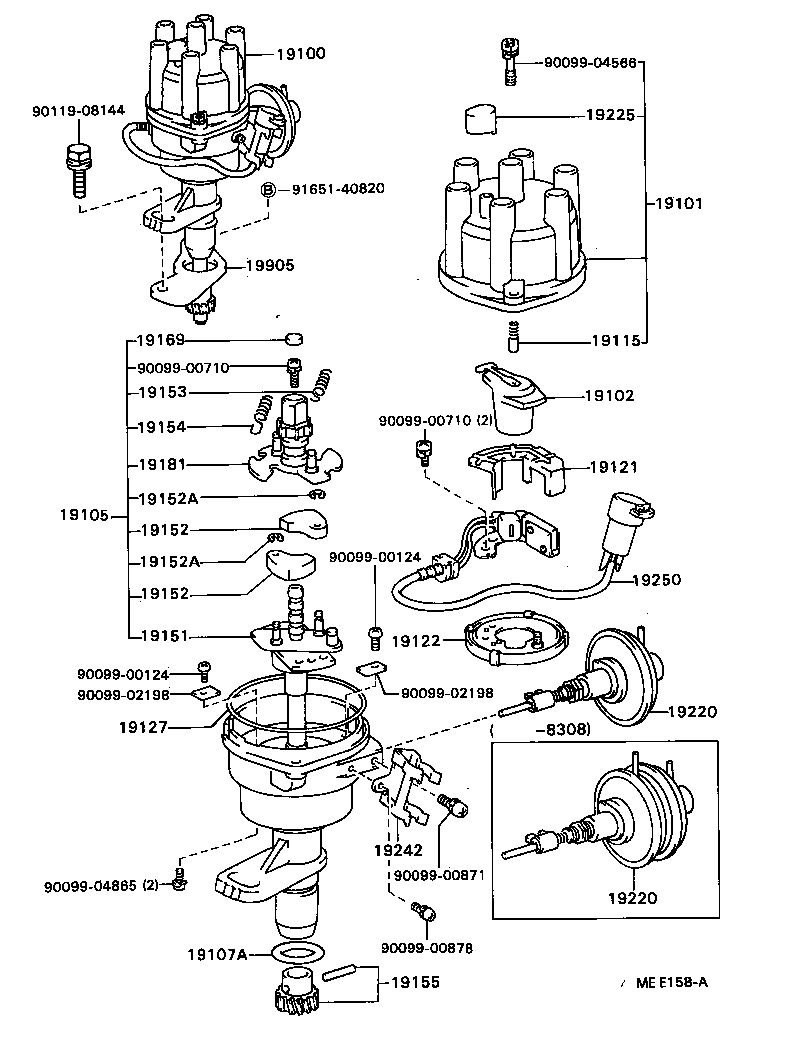

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-43040 |
5ME..MX62 |
1 | ||
| 19100-43140 |
5ME..MX62 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-41140 |
5ME..MX62 |
1 | ||
| 19101-45191 |
5ME..MX62 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-45060 |
5ME..MX62 |
1 | ||
| 19102-45191 |
5ME..MX62 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-43140 |
5ME..MX62 |
1 | ||
| 19105-43040 |
5ME..MX62 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14018 |
5ME..MX6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
5ME..MX6# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-27020 |
5ME..MX62 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-45070 |
5ME..MX6# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-41141 |
5ME..MX62 |
1 | ||
| 19127-45190 |
5ME..MX62 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-41200 |
5ME..MX62 |
1 | ||
| 19151-41250 |
5ME..MX62 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
5ME..MX6# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
5ME..MX6# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
5ME..MX6# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
5ME..MX6# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-43140 |
5ME..MX62 |
1 | ||
| 19153-43040 |
5ME..MX62 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19153-43140 |
5ME..MX62 |
1 | ||
| 19153-43040 |
5ME..MX62 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-45190 |
5ME..MX62 |
1 | ||
| 19195-41130 |
5ME..MX62 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
5ME..MX62 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-43140 |
5ME..MX62 |
1 | ||
| 19181-43020 |
5ME..MX62 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-43041 |
5ME..MX62 |
1 | ||
| 19220-43140 |
5ME..MX62 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-43041 |
5ME..MX62 |
1 | ||
| 19220-43140 |
5ME..MX62 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-26231 |
5ME..MX62 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-45150 |
5ME..MX62 |
1 | ||
| 19250-41260 |
5ME..MX62 |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19955-45020 |
5ME..MX62 |
1 | ||
| 19955-45010 |
5ME..MX62 |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-02198 | ||||
| 90099-04566 | ||||
| 90099-04865 | ||||
| 90119-08144 | ||||
| 91651-40820 | ||||
