MX32R-EKDQ (1976)

Toyota Cressida

Production Dec 1976 - Aug 1980
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)4M

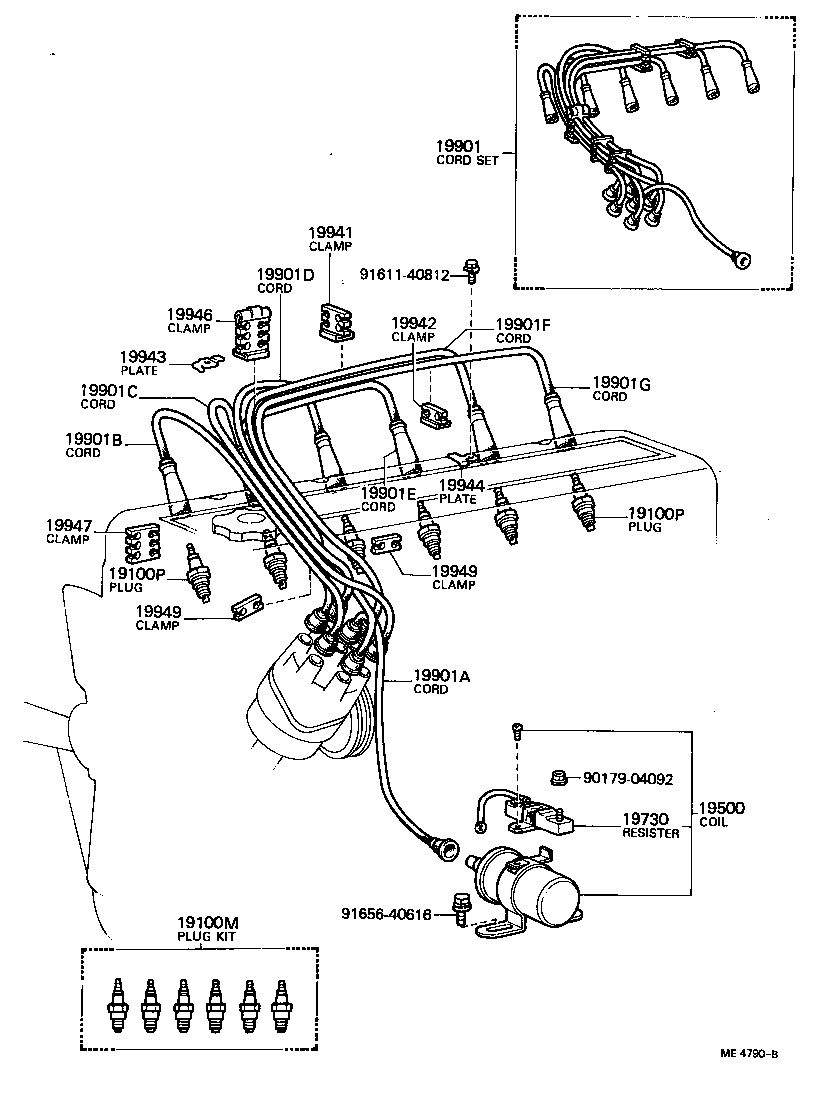

Click highlighted areas on diagram

diagram 19100M 19100P 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19943 19944 19946 19947 19949 19949 9017904092 9161140812 9165640616
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-41010

4M..MX3#..ARL

W16EP

 1
19100P - PLUG, SPARK
90919-01064

4M..MX3#

W16EXR-U,W16EXR-U

 6
90919-01027

4M..MX3#..ARL

W16EP OR W16EX-U,W16EP

 6
19100P - PLUG, SPARK
90919-01064

4M..MX3#

W16EXR-U,W16EXR-U

 6
90919-01027

4M..MX3#..ARL

W16EP OR W16EX-U,W16EP

 6
19500 - COIL ASSY, IGNITION
90919-02087

4M..MX3#

 1
19730 - RESISTOR, IGNITION COIL
90919-04019

4M..MX3#

 1
90919-04033

4M..MX3#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21064

4M..MX3#

 1
19901A - CORD, COIL RESISTIVE
90919-13039

4M..MX3#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12180

4M..MX3#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12181

4M..MX3#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12182

4M..MX3#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12183

4M..MX3#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12184

4M..MX3#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12185

4M..MX3#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00068

4M..MX3#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00069

4M..MX3#

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-45020

4M..MX3#

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-45021

4M..MX3#

 2
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00070

4M..MX3#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00071

4M..MX3#

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00116

4M..MX3#

 2
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00116

4M..MX3#

 2
Common parts
90179-04092
91611-40812
91656-40616
