MX32R-EHNN (1977)
Toyota Cressida
Production
Jul 1977
-
Jan 1980
Engine
4M
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7707-8001)4M..MX32..SA

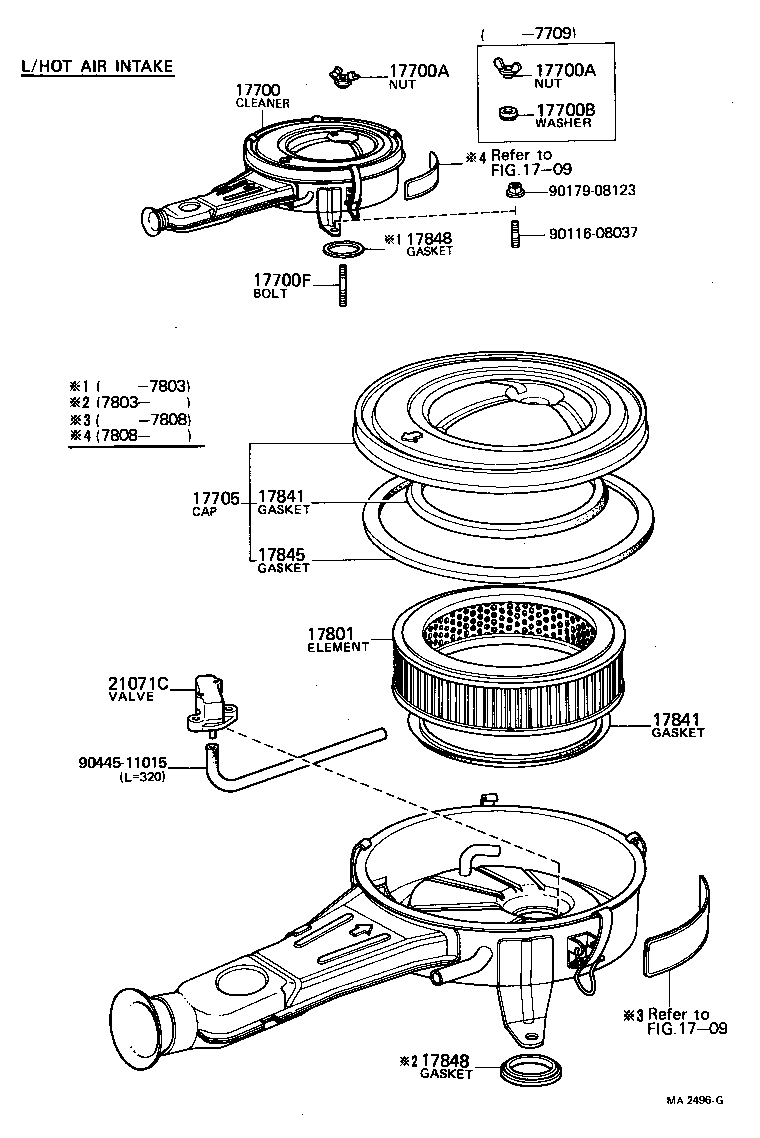

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-45121 |
4M..MX32..SA L/HOT AIR INTAKE |
1 | ||
| 17700-45202 |
4M..MX32..SA L/HOT AIR INTAKE |
1 | ||
| 17700-45201 |
4M..MX32..SA L/HOT AIR INTAKE |
1 | ||
| 17700-45200 |
4M..MX32..SA L/HOT AIR INTAKE |
1 | ||
| 17700-45160 |
4M..MX3# W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00600 |
4M..MX3# |
1 | ||
| 90175-06026 |
4M..MX3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00600 |
4M..MX3# |
1 | ||
| 90175-06026 |
4M..MX3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MX3# |
1 | ||
| 90210-09026 |
4M..MX3# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4M..MX3# L=80,S=12&28 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41090 |
4M..MX3# |
1 | ||
| 17705-41120 |
4M..MX32..SA |
1 | ||
| 17705-41120 |
4M..MX3# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41090 |
4M..MX3# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M..MX3# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M..MX3# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M..MX3# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
4M..MX3# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
4M..MX3# |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 21071-45021 |
4M..MX32..SA L/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90116-08037 | ||||
| 90179-08123 | ||||
| 90445-11015 | ||||
| Linked diagrams | ||||
| 1709 | ||||
