MX32R-EHNN (1977)
Toyota Cressida
Production
Jul 1977
-
Jan 1980
Engine
4M
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

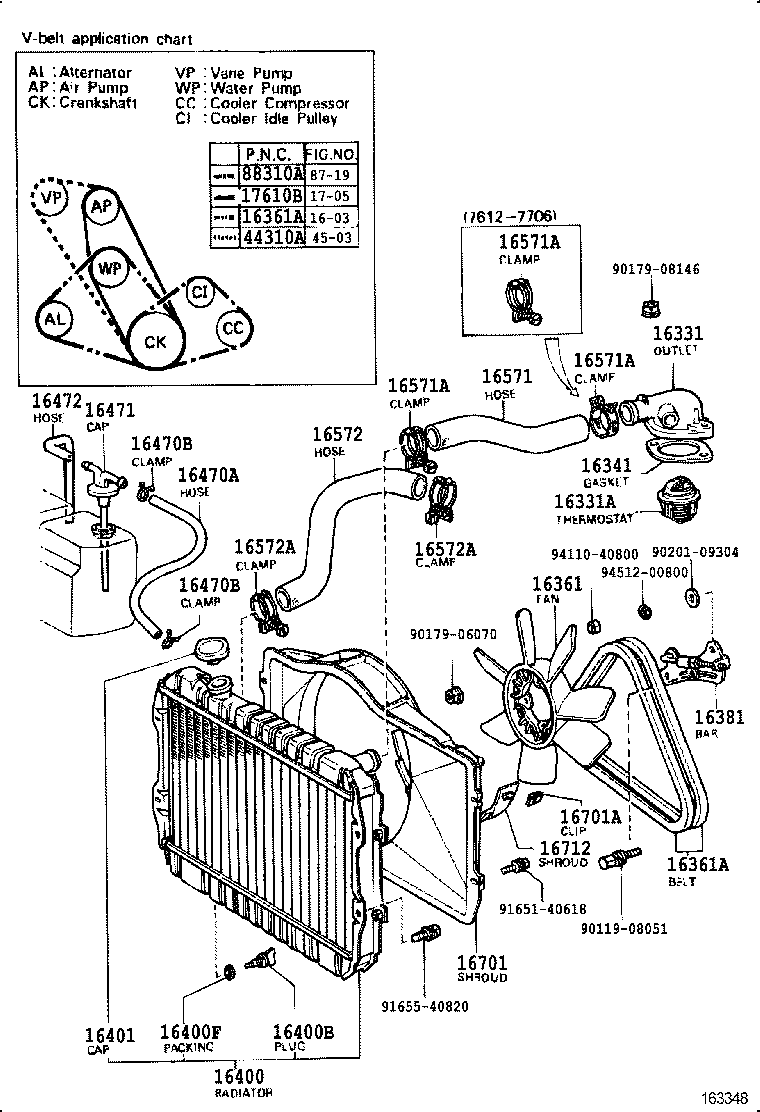

(7612-8008)4M
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-45020 |
4M..MX3# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
4M..MX3# WAX 82-95 FUJI-THOMSON |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-49010 |
4M..MX3# |
1 | ||
| 16341-38010 |
4M..MX3# |
1 | ||
| 16361 - FAN | ||||
| 16361-41060 |
4M..MX3# 7 BLADES OD=410 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99522-10904 |
4M..MX3# |
1 | ||
| 90916-02074 |
4M..MX3# DOUBLE V BELTS |
1 | ||
| 90916-02074 |
4M..MX32..SA DOUBLE V BELTS |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99522-10904 |
4M..MX3# |
1 | ||
| 90916-02074 |
4M..MX3# DOUBLE V BELTS |
1 | ||
| 90916-02074 |
4M..MX32..SA DOUBLE V BELTS |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-45011 |
4M..MX3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-41190 |
4M..MX3#..3FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
4M..MX3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
4M..MX3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36010 |
4M..MX3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12048 |
4M..MX3# *H,L=200 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4M..MX3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4M..MX3# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85037-22010 |
4M..MX3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41060 |
4M..MX3# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10450 |
4M..MX3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10450 |
4M..MX3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10450 |
4M..MX3# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41040 |
4M..MX3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
4M..MX3# ID=45 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
4M..MX3# ID=45 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-41040 |
4M..MX3# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-41040 |
4M..MX3# W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08051 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90201-09304 | ||||
| 91651-40618 | ||||
| 91655-40820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
(7612-8008)4M
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-45021 |
4M..MX3# |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16264-45020 |
4M..MX3# |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
4M..MX3# |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
4M..MX3# |
2 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
4M..MX3# |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-08154 | ||||
| 91611-40820 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1701 | ||||
