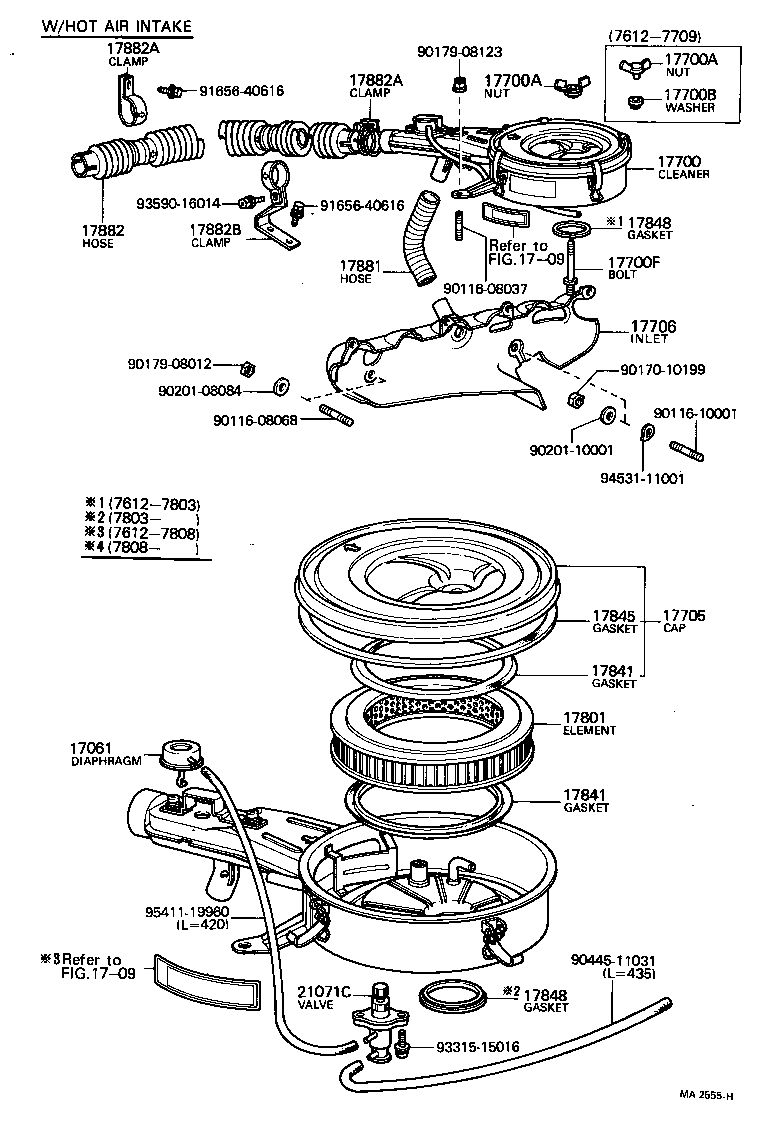

MX32R-EHDQ (1976)
Toyota Cressida
(7612-8008)4M..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-41010 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-45161 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-45180 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-45220 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-45221 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-45160 |
4M..MX3# W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M..MX3# |
1 | ||
| 94271-00600 |
4M..MX3# |
1 | ||
| 90175-06026 |
4M..MX3# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M..MX3# |
1 | ||
| 94271-00600 |
4M..MX3# |
1 | ||
| 90175-06026 |
4M..MX3# |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MX3# |
1 | ||
| 90210-09026 |
4M..MX3# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4M..MX3# L=80,S=12&28 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41090 |
4M..MX3# |
1 | ||
| 17705-41130 |
4M..MX3#..ARL |
1 | ||
| 17705-41120 |
4M..MX3# |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17895-45020 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17902-41020 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17895-45021 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41090 |
4M..MX3# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M..MX3# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M..MX3# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M..MX3# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
4M..MX3# |
1 | ||
| 90430-72003 |
4M..MX3# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
4M..MX3# |
1 | ||
| 90430-72003 |
4M..MX3# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26010 |
4M..MX3# W/HOT AIR INTAKE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-41050 |
4M..MX3#..ARL |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90461-12070 |
4M..MX3#..ARL FOR BODY SET |
1 | ||
| 96111-10670 |
4M..MX3#..ARL FOR AIR CLEANER SET |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90461-12070 |
4M..MX3#..ARL FOR BODY SET |
1 | ||
| 96111-10670 |
4M..MX3#..ARL FOR AIR CLEANER SET |
1 | ||
| 17882B - CLAMP(FOR COOL AIR INTAKE) | ||||
| 90461-12071 |
4M..MX3#..ARL |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17728-41030 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| 17728-41020 |
4M..MX3#..ARL W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90116-08037 | ||||
| 90116-08068 | ||||
| 90116-10001 | ||||
| 90170-10199 | ||||
| 90179-08012 | ||||
| 90179-08123 | ||||
| 90201-08084 | ||||
| 90201-10001 | ||||
| 90445-11031 | ||||
| 91656-40616 | ||||
| 93315-15016 | ||||
| 93590-16014 | ||||
| 94531-11001 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1709 | ||||
