LX80L-AEMES (1988)
Toyota Cressida
Production
Aug 1988
-
Feb 1993
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

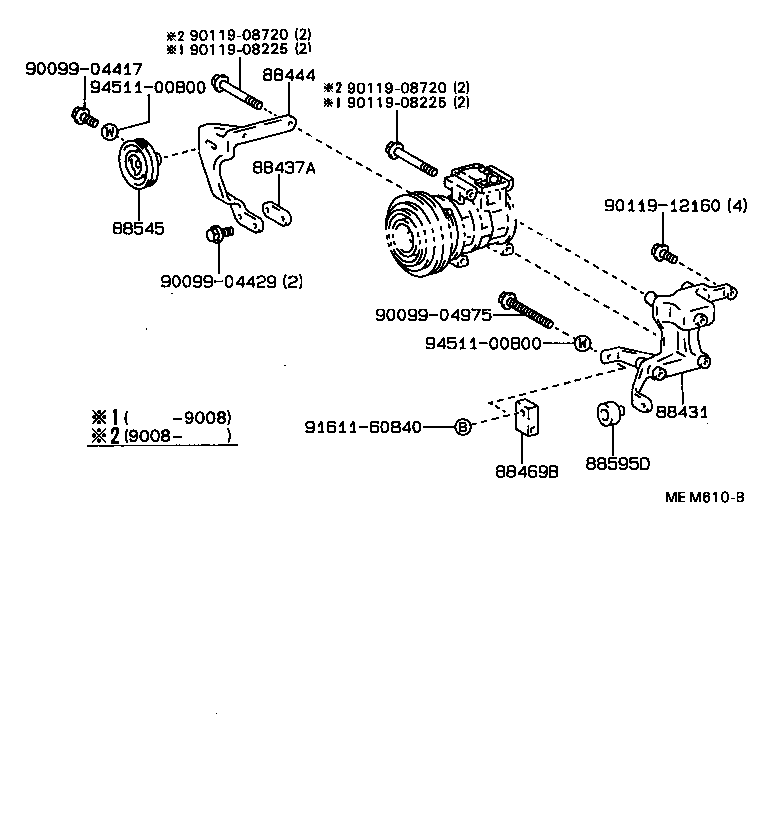

ILLUST NO. 1 OF 3(8808-9302)LX80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22270 |
LX80 |
1 | ||
| 88431-22331 |
LX80 |
1 | ||
| 88431-22330 |
LX80 |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-22050 |
LX80 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-22080 |
LX80 |
1 | ||
| 88444-30280 |
LX80 RH |
1 | ||
| 88444-30280 |
LX80 RH |
1 | ||
| 88444-22100 |
LX80 LH |
1 | ||
| 88469B - COLLAR | ||||
| 88469-30280 |
LX80 |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
LX80,RX8#..LHD |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LX80 |
1 | ||
| Common parts | ||||
| 90099-04417 | ||||
| 90099-04429 | ||||
| 90099-04975 | ||||
| 90119-08225 | ||||
| 90119-08720 | ||||
| 90119-12160 | ||||
| 91611-60840 | ||||
| 94511-00800 | ||||
ILLUST NO. 2 OF 3(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22230 |
LX80 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2B080 |
LX80,MX83,RX8#..ARL,GEN |
1 | ||
| 88411-2B080 |
RX80..RHD;GX81,LX80,MX83 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-22550 |
LX80 |
1 | ||
| 88320-22551 |
LX80 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16010 |
LX80 BOOST VENTILATOR |
1 | ||
| 88403-16011 |
LX80 |
1 | ||
| 88403-16011 |
LX80 MANUAL |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22280 |
LX80 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
