LX80L-AEMES (1988)
Toyota Cressida
Production
Aug 1988
-
Feb 1993
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9302)LX80,MX81

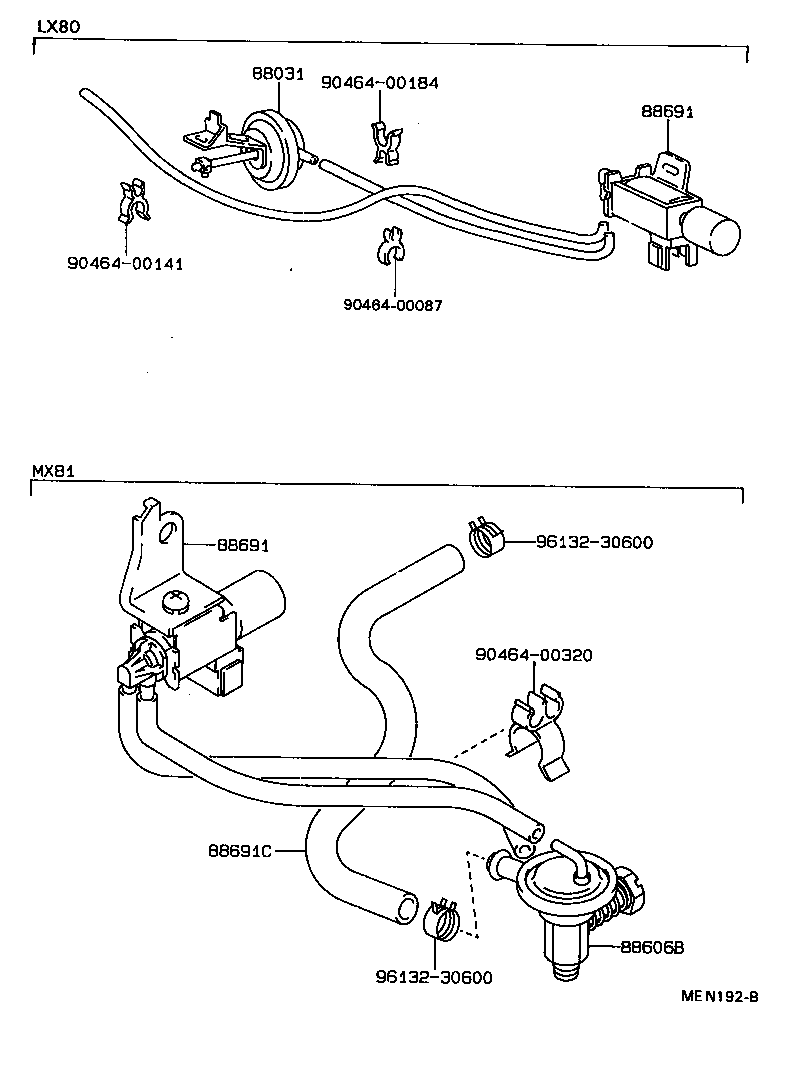

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-35040 |
LX80 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22550 |
LX80 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22550 |
LX80 |
1 | ||
| Common parts | ||||
| 90464-00087 | ||||
| 90464-00141 | ||||
| 90464-00184 | ||||
| 90464-00320 | ||||
| 96132-30600 | ||||
