LX80L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LX80

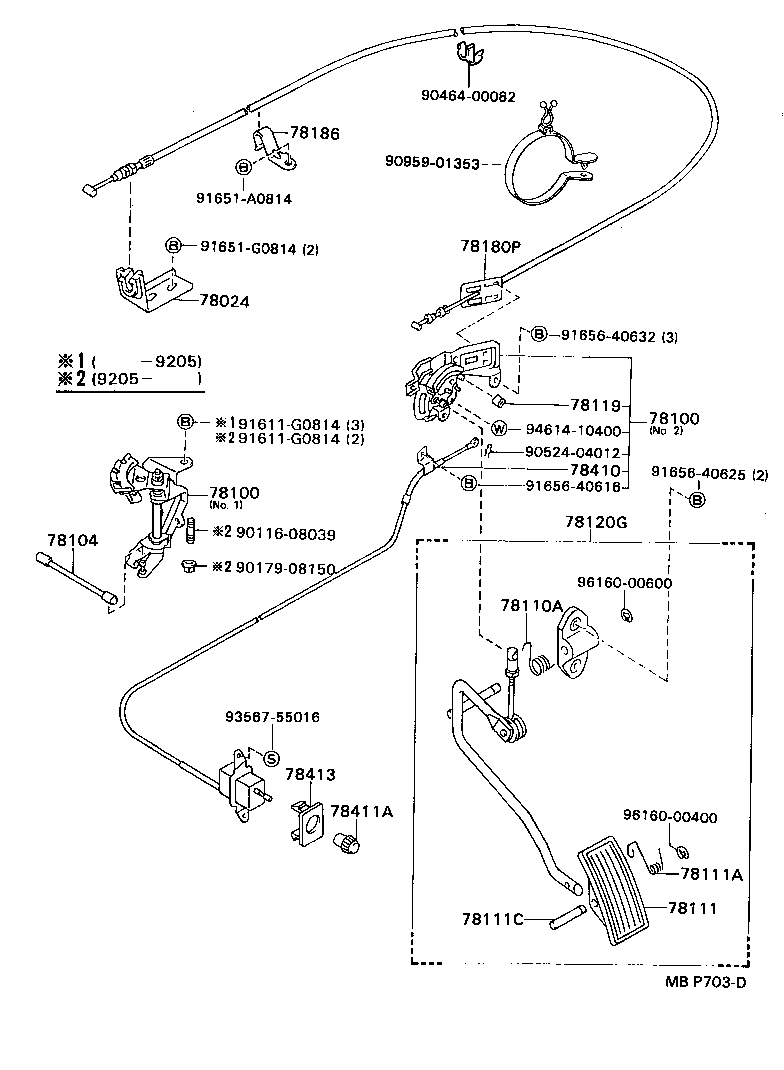

Click highlighted areas on diagram

diagram 78024 78100 78100 78104 78110A 78111 78111A 78111C 78119 78120G 78180P 78186 78410 78411A 78413 9011608039 9017908150 9046400082 9052404012 9095901353 91611G0814 91611G0814 91651A0814 91651G0814 9165640616 9165640625 9165640632 9356755016 9461410400 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22100

LX80

 1
78100 - LINK ASSY, ACCELERATOR
78100-35070

LX80

 1
78100-35071

LX80

NO.2

 1
78100-22120

LX80

NO.1

 1
78100 - LINK ASSY, ACCELERATOR
78100-35070

LX80

 1
78100-35071

LX80

NO.2

 1
78100-22120

LX80

NO.1

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-22140

LX80

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-30007

GX81,LX80,MX81..LHD..5F

 1
78111 - PEDAL, ACCELERATOR
78111-12100

GX81,LX80,MX8#,RX8#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23108

GX81,LX80,MX8#,RX8#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GX81,LX80,MX8#,RX8#

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-30050

GX81,LX80,MX81..LHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-22290

GX81,LX80,MX81..LHD..5F

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2A020

LX80

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-22040

LX80

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-22100

LX80

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

LX80

 1
78413 - COVER, THROTTLE CONTROL CABLE
78413-22010

LX80

 1
Common parts
90116-08039
90179-08150
90464-00082
90524-04012
90959-01353
91611-G0814
91651-A0814
91651-G0814
91656-40616
91656-40625
91656-40632
93567-55016
94614-10400
96160-00400
96160-00600
