LX80L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

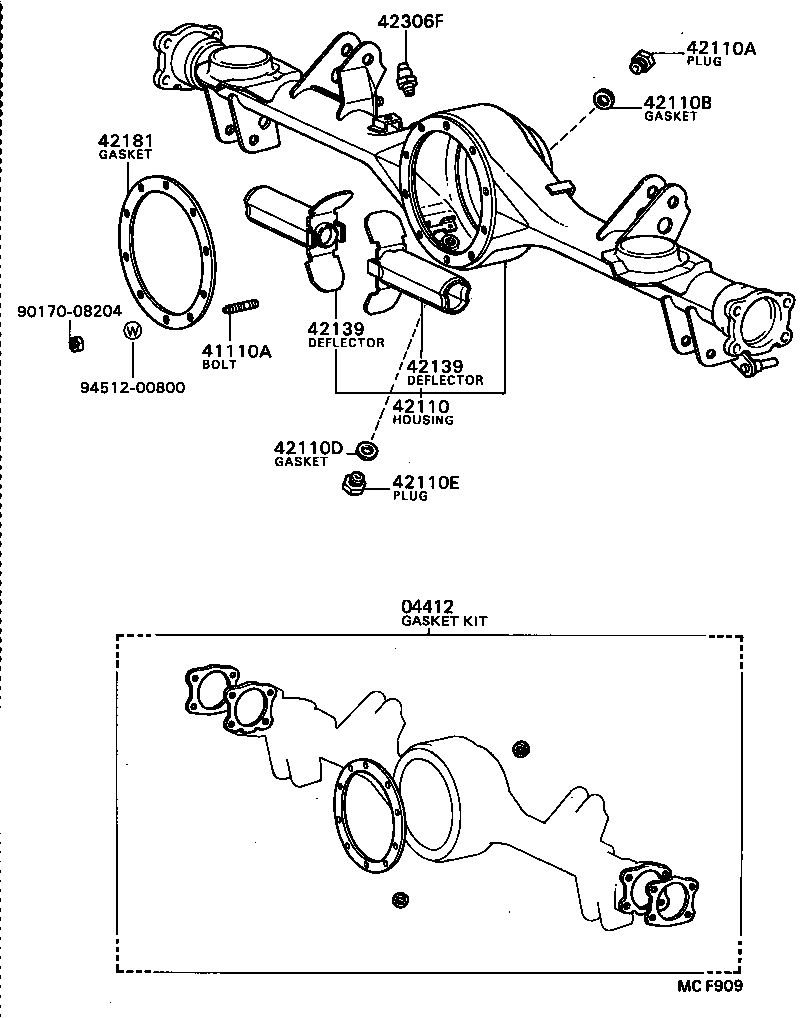

ILLUST NO. 1 OF 2(8808- )LX80,RX80

Click highlighted areas on diagram

diagram 04412 41110A 42110 42110A 42110B 42110D 42110E 42139 42139 42181 42306F 9017008204 9451200800
Part # Description Qty Price
04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER
04412-20030

LX80;RX80..4FC

 1
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-08235

LX80,RX80

S=12 & 15,L=34

 10
42110 - HOUSING ASSY, REAR AXLE
42110-22260

LX80..5F

TAXI PACKAGE FOR CHINA OR HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

 1
42110-22240

LX80;RX80..4FC

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006

LX80,RX80

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

LX80,RX80

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

LX80,RX80

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

LX80,RX80

 1
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-22030

LX80;RX80..4FC

 2
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-22030

LX80;RX80..4FC

 2
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-30010

LX80;RX80..4FC

 1
42306F - PLUG, BREATHER (FOR REAR AXLE)
90930-03031

LX80,RX80

 1
Common parts
90170-08204
94512-00800

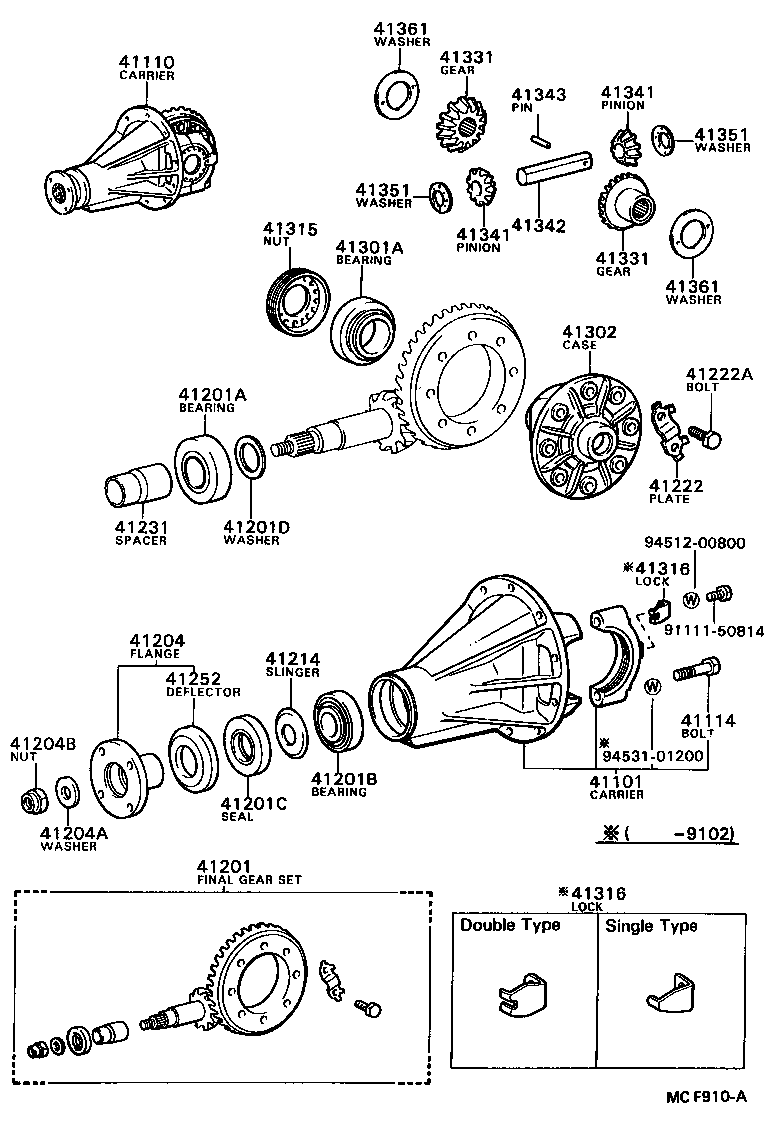

ILLUST NO. 2 OF 2(8808- )LX80,RX80

Click highlighted areas on diagram

diagram 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41204 41204A 41204B 41214 41222 41222A 41231 41252 41301A 41302 41315 41316 41316 41331 41331 41341 41341 41342 41343 41351 41351 41361 41361 9111150814 9451200800 9453101200
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-30010

LX80;RX80..4FC

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-22240

LX80;RX80..4FC

*FGR=43:11=3.909

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90101-12376

LX80,RX80

 4
90101-12376

LX80;RX80..4FC

 4
90105-12240

LX80;RX80..4FC

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-29765

LX80;RX80..4FC

*FGR=43:11=3.909

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90366-35031

LX80;RX80..4FC

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-30022

LX80;RX80..4FC

 2
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-38133

LX80,RX80

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90201-35435

GX81,LX80,MX81,RX8#

T=2.27,MARK 02

 1
90201-35436

GX81,LX80,MX81,RX8#

T=2.30,MARK 03

 1
90201-35434

GX81,LX80,MX81,RX8#

T=2.24,MARK 01

 1
90201-35437

GX81,LX80,MX81,RX8#

T=2.33,MARK 04

 1
90201-35397

GX81,LX80,MX81,RX8#

T=2.39,MARK 06

 1
90201-35401

GX81,LX80,MX81,RX8#

T=2.51,MARK 10

 1
90201-35400

GX81,LX80,MX81,RX8#

T=2.48,MARK 09

 1
90201-35402

GX81,LX80,MX81,RX8#

T=2.54,MARK 11

 1
90201-35398

GX81,LX80,MX81,RX8#

T=2.42,MARK 07

 1
90201-35404

GX81,LX80,MX81,RX8#

T=2.60,MARK 13

 1
90201-35399

GX81,LX80,MX81,RX8#

T=2.43,MARK 08

 1
90201-35438

GX81,LX80,MX81,RX8#

T=2.63,MARK 14

 1
90201-35441

GX81,LX80,MX81,RX8#

T=2.72,MARK 17

 1
90201-35439

GX81,LX80,MX81,RX8#

T=2.66,MARK 15

 1
90201-35440

GX81,LX80,MX81,RX8#

T=2.69,MARK 16

 1
90201-35396

GX81,LX80,MX81,RX8#

T=2.36,MARK 05

 1
90201-35403

GX81,LX80,MX81,RX8#

T=2.57,MARK 12

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-20030

GX81,LX80,RX8#

 1
41204A - WASHER, PLATE (FOR REAR DRIVE PINION)
90201-18485

GX81,LX80,MX81,RX8#

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-18001

GX81,LX80,MX81,RX8#

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-30021

GX81,LX80,MX81,RX8#

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-28010

LX80;RX80..4FC

 4
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11353

LX80;RX80..4FC

 8
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-22020

LX80;RX80..4FC

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-30010

GX81,LX80,MX81,RX8#

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45011

LX80;RX80..4FC

 2
90368-45014

LX80;RX80..4FC

 2
90368-45066

LX80,RX80

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-30022

LX80;RX80..4FC

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010

LX80;RX80..4FC

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-30010

LX80,RX80

SINGLE TYPE

 2
41317-30010

LX80,RX80

DOUBLE TYPE

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-30010

LX80,RX80

SINGLE TYPE

 2
41317-30010

LX80,RX80

DOUBLE TYPE

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-30021

LX80;RX80..4FC

 2
41331-22070

LX80;RX80..4FC

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-30021

LX80;RX80..4FC

 2
41331-22070

LX80;RX80..4FC

 2
41341 - PINION, REAR DIFFERENTIAL
41341-22030

LX80;RX80..4FC

 2
41341-30011

LX80;RX80..4FC

 2
41341 - PINION, REAR DIFFERENTIAL
41341-22030

LX80;RX80..4FC

 2
41341-30011

LX80;RX80..4FC

 2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-30011

LX80;RX80..4FC

 1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
90250-06058

GX81,LX80,MX8#,RX8#

 1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30032

LX80;RX80..4FC

 2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30032

LX80;RX80..4FC

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

LX80;RX80..4FC

T=1.20,MARK 04

 2
41361-22030

LX80;RX80..4FC

T=1.10,MARK 03

 2
41361-22160

LX80;RX80..4FC

T=1.15,MARK 16

 2
41361-22020

LX80;RX80..4FC

T=1.00,MARK 02

 2
41361-22140

LX80;RX80..4FC

T=0.95,MARK 14

 2
41361-22150

LX80;RX80..4FC

T=1.05,MARK 15

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

LX80;RX80..4FC

T=1.20,MARK 04

 2
41361-22030

LX80;RX80..4FC

T=1.10,MARK 03

 2
41361-22160

LX80;RX80..4FC

T=1.15,MARK 16

 2
41361-22020

LX80;RX80..4FC

T=1.00,MARK 02

 2
41361-22140

LX80;RX80..4FC

T=0.95,MARK 14

 2
41361-22150

LX80;RX80..4FC

T=1.05,MARK 15

 2
Common parts
91111-50814
94512-00800
94531-01200
