LX80L-AEMES (1988)
Toyota Cressida
Production
Aug 1988
-
Feb 1993
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9302)2L

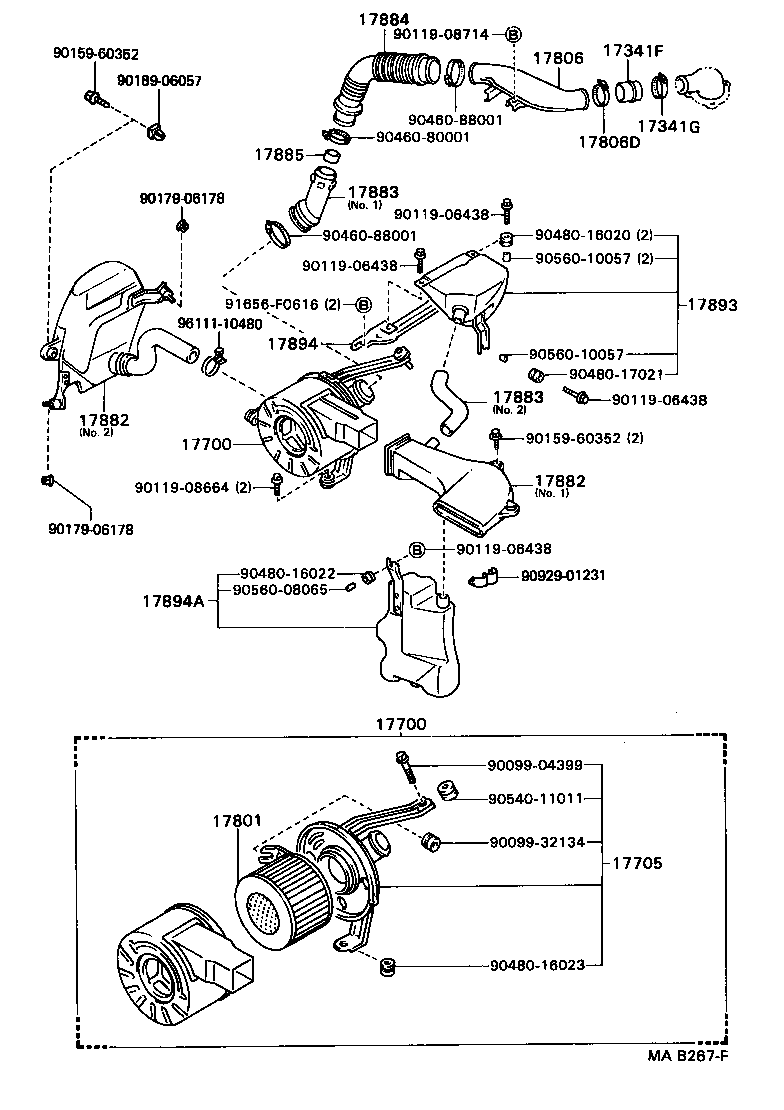

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-54010 |
2L..LX80 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-75001 |
2L..LX80 |
1 | ||
| 90460-73001 |
2L..LX80 |
1 | ||
| 90467-60001 |
2L..LX80 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54440 |
2L..LX80 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54440 |
2L..LX80 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54220 |
2L..LX80 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54090 |
2L..LX80 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17103-54060 |
2L..LX80 |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-70002 |
2L..LX80 |
1 | ||
| 90467-56001 |
2L..LX80 |
1 | ||
| 90460-67004 |
2L..LX80 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54350 |
2L..LX80 NO.1 |
1 | ||
| 17890-54010 |
2L..LX80 NO.2 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54350 |
2L..LX80 NO.1 |
1 | ||
| 17890-54010 |
2L..LX80 NO.2 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17881-54360 |
2L..LX80 NO.1 |
1 | ||
| 17883-54111 |
2L..LX80 NO.2 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17881-54360 |
2L..LX80 NO.1 |
1 | ||
| 17883-54111 |
2L..LX80 NO.2 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17882-54261 |
2L..LX80 |
1 | ||
| 17882-54260 |
2L..LX80 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-54140 |
2L..LX80 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17805-54110 |
2L..LX80 |
1 | ||
| 17805-54111 |
2L..LX80 |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-54050 |
2L..LX80 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17806-54050 |
2L..LX80 |
1 | ||
| Common parts | ||||
| 90099-04399 | ||||
| 90099-32134 | ||||
| 90119-06438 | ||||
| 90119-08664 | ||||
| 90119-08714 | ||||
| 90159-60352 | ||||
| 90179-06178 | ||||
| 90189-06057 | ||||
| 90460-80001 | ||||
| 90460-88001 | ||||
| 90480-16020 | ||||
| 90480-16022 | ||||
| 90480-16023 | ||||
| 90480-17021 | ||||
| 90540-11011 | ||||
| 90560-08065 | ||||
| 90560-10057 | ||||
| 90929-01231 | ||||
| 91656-F0616 | ||||
| 96111-10480 | ||||
