LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)LHD..EUR

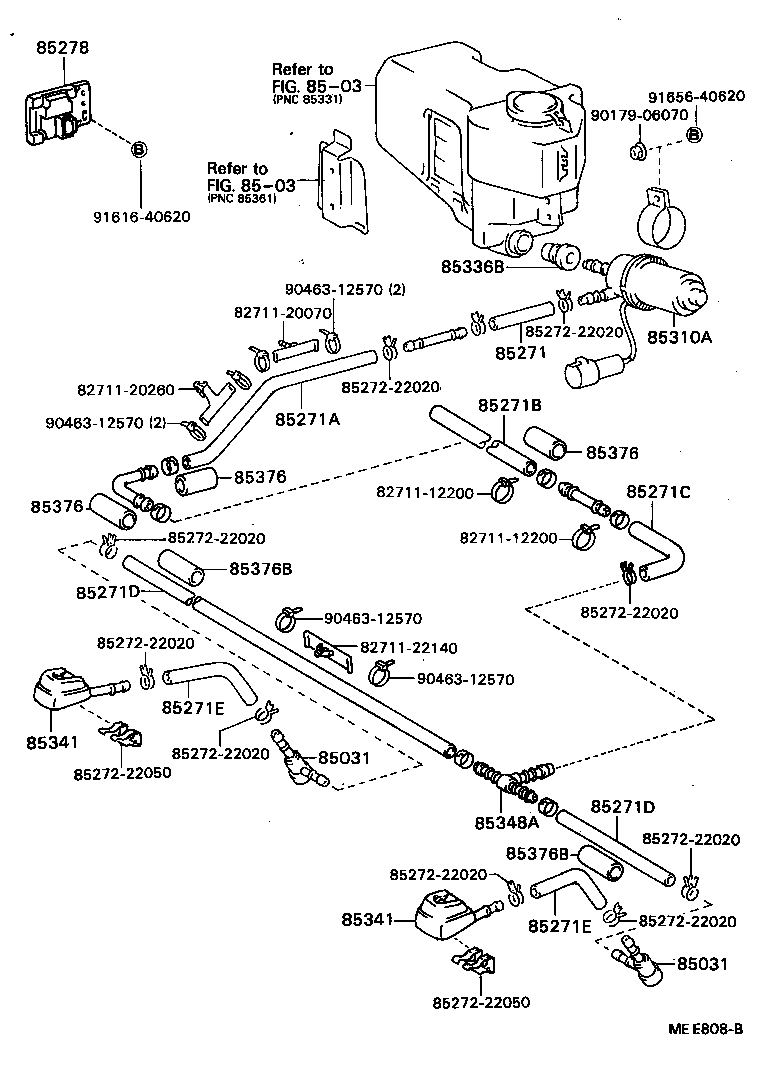

Click highlighted areas on diagram

diagram 8271112200 8271112200 8271120070 8271120260 8271122140 8503 8503 85031 85031 85271 85271A 85271B 85271C 85271D 85271D 85271E 85271E 8527222020 8527222020 8527222020 8527222020 8527222020 8527222020 8527222020 8527222020 8527222020 8527222050 8527222050 85278 85310A 85336B 85341 85341 85348A 85376 85376 85376 85376B 85376B 9017906070 9046312570 9046312570 9046312570 9046312570 9161640620 9165640620
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

GX71,LX7#,MX7#..EUR

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

GX71,LX7#,MX7#..EUR

 2
85271 - HOSE, HEADLAMP CLEANER, NO.1
85375-20190

GX71,LX7#,MX7#..LHD..EUR

L=90

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85375-22100

GX71,LX7#,MX7#..LHD..EUR

L=760

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-22070

GX71,LX7#,MX7#..LHD..EUR

L=610

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
85271-22060

GX71,LX7#,MX7#..LHD..EUR

L=1070

 1
85271D - HOSE, HEADLAMP CLEANER, NO.5
85376-10150

GX71,LX7#,MX7#..EUR

*H,L=750,L=750

 1
85376-16020

GX71,LX7#,MX7#..EUR

L=260

 1
85271D - HOSE, HEADLAMP CLEANER, NO.5
85376-10150

GX71,LX7#,MX7#..EUR

*H,L=750,L=750

 1
85376-16020

GX71,LX7#,MX7#..EUR

L=260

 1
85271E - HOSE, HEADLAMP CLEANER, NO.6
85271-22020

GX71,LX7#,MX7#..EUR

 2
85271E - HOSE, HEADLAMP CLEANER, NO.6
85271-22020

GX71,LX7#,MX7#..EUR

 2
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-22070

GX71,LX7#,MX7#..EUR

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-22100

GX71,LX7#,MX7#..EUR

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
85336-10010

GX71,LX7#,MX7#..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22120

GX71,LX7#,MX7#..EUR

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22120

GX71,LX7#,MX7#..EUR

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

GX71,LX7#,MX7#..EUR

 1
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376-22140

GX71,LX7#,MX7#..EUR

 3
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376-22140

GX71,LX7#,MX7#..EUR

 3
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376-22140

GX71,LX7#,MX7#..EUR

 3
85376B - PROTECTOR, HEADLAMP CLEANER HOSE, NO.3
85376-22140

GX71,LX7#,MX7#..EUR

 2
85376B - PROTECTOR, HEADLAMP CLEANER HOSE, NO.3
85376-22140

GX71,LX7#,MX7#..EUR

 2
Common parts
82711-12200
82711-20070
82711-20260
82711-22140
85272-22020
85272-22050
90179-06070
90463-12570
91616-40620
91656-40620
Linked diagrams
8503
