LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )WG

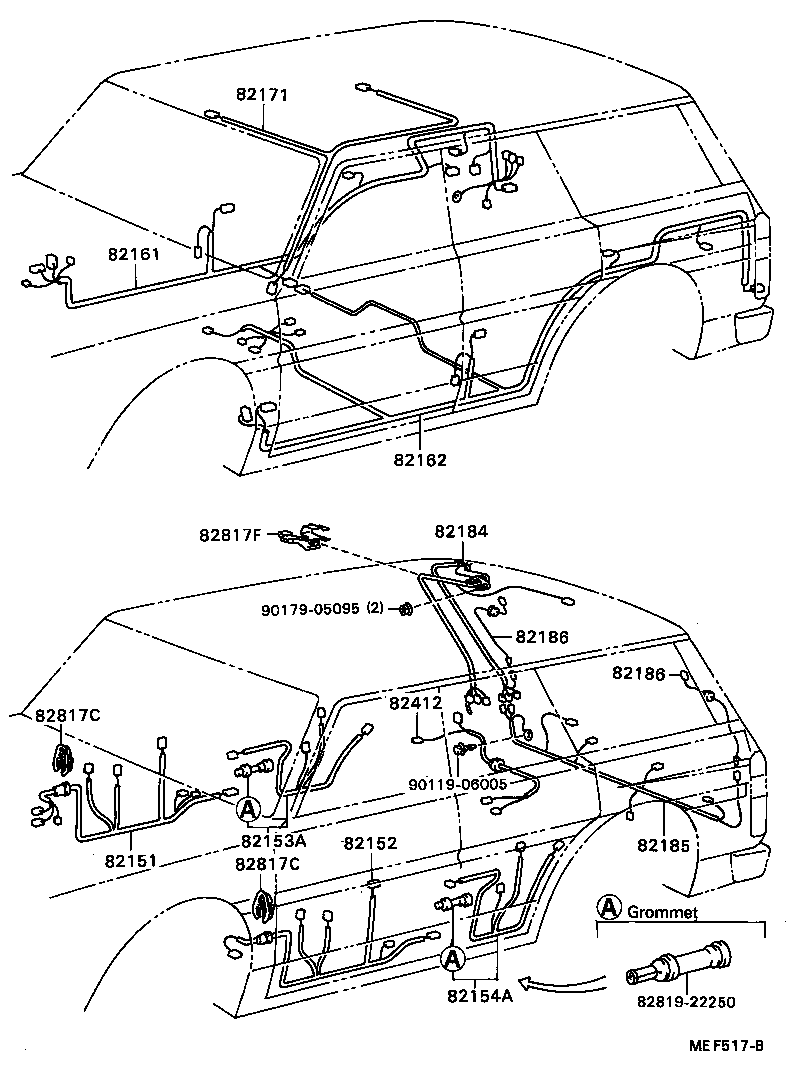

Click highlighted areas on diagram

diagram 82151 82152 82153A 82154A 82161 82162 82171 82184 82185 82186 82186 82412 82817C 82817C 82817F 8281922250 9011906005 9017905095
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-22171

GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX)

W/*PW

 1
82151-22170

GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX)

W/*PW

 1
82151-22180

GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GL,XL)

W/*RCM,W/O *PW

 1
82152 - WIRE, FRONT DOOR, LH
82152-22141

GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX)

W/*PW

 1
82152-22140

GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX)

W/*PW

 1
82152-22150

GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GL,XL)

W/*RCM,W/O *PW

 1
82153A - WIRE, REAR DOOR, RH
82153-22040

GX71,LX7#,MX7#,RX70..(SED,WG)..(GD,GL,GLX)

 1
82154A - WIRE, REAR DOOR, LH
82154-22010

GX71,LX7#,MX7#,RX70..(SED,WG)..(GD,GL,GLX)

 1
82162 - WIRE, FLOOR, NO.2
82162-22240

LX70,MX72..EUR

 1
82171 - WIRE, ROOF, NO.1
82171-22150

GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GL,XL)

 1
82184 - WIRE, BACK DOOR, NO.1
82184-22011

RX70..WG..(GEN,SA);LX70,MX72,RX70..WG..GL

W/REAR WIPER

 1
82184-22010

RX70..WG..GEN;LX70,MX72,RX70..WG..GL

W/REAR WIPER

 1
82185 - WIRE, BACK DOOR, NO.2
82185-22020

LX70,MX72..EUR

 1
82412 - WIRE, FUEL GAGE
82412-22100

LX70,MX72,RX70..WG

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-22360

GX71,LX7#,MX73,RX70

 2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-22360

GX71,LX7#,MX73,RX70

 2
Common parts
82819-22250
90119-06005
90179-05095
