LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )LX70,MX72..EUR

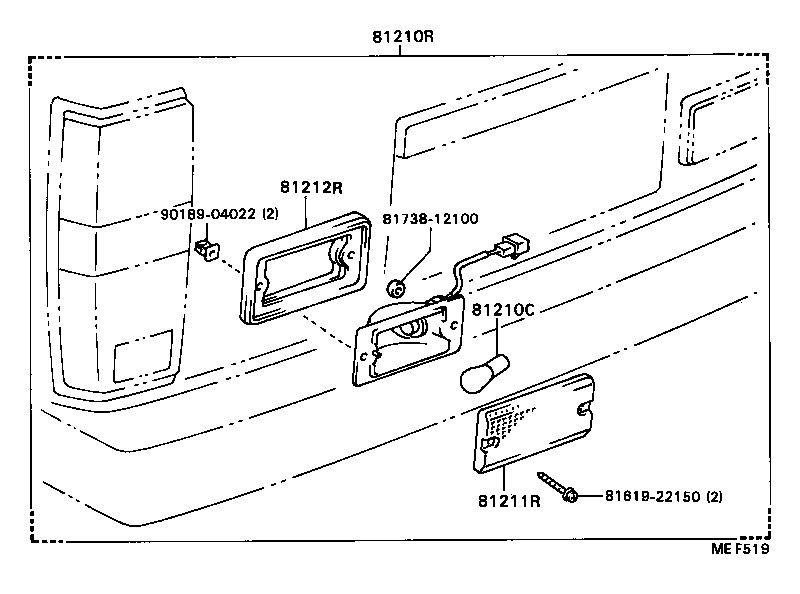

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81212R 8161922150 8173812100 9018904022
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

LX70,MX72..EUR

12V 21W,12V 21W

 2
81210R - LAMP ASSY, REAR FOG
81220-23010

LX70,MX72..EUR

LH

 1
81210-23010

LX70,MX72..EUR

RH

 1
81211R - LENS, REAR FOG LAMP
81211-20030

LX70,MX72..EUR

 2
81212R - GASKET, REAR FOG LAMP, NO.1
81214-23010

LX70,MX72..EUR

RH

 1
81224-23010

LX70,MX72..EUR

LH

 1
Common parts
81619-22150
81738-12100
90189-04022
