LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )WG

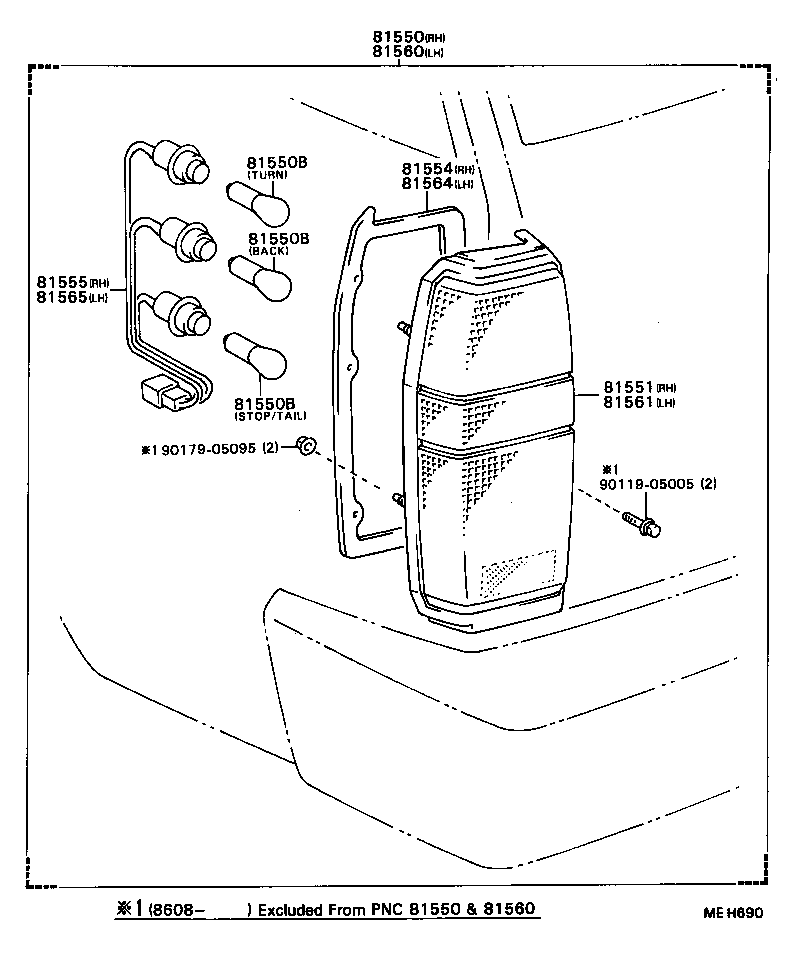

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9011905005 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80248

LX70,MX72..EUR

 1
81550-80248

LX70,MX72,RX70..WG..(EUR,SA)

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA

12V 23W,12V 23W(TURN OR BACK)

 4
99132-21210

GX71,LX7#,MX7#,RX7#,YX70

12V 21/5W,12V 21/5W(STOP/TAIL OR TAIL)

 4
99132-11210

GX71,LX7#,MX7#..EUR

12V 21W,12V 21W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA

12V 23W,12V 23W(TURN OR BACK)

 4
99132-21210

GX71,LX7#,MX7#,RX7#,YX70

12V 21/5W,12V 21/5W(STOP/TAIL OR TAIL)

 4
99132-11210

GX71,LX7#,MX7#..EUR

12V 21W,12V 21W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

GX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA

12V 23W,12V 23W(TURN OR BACK)

 4
99132-21210

GX71,LX7#,MX7#,RX7#,YX70

12V 21/5W,12V 21/5W(STOP/TAIL OR TAIL)

 4
99132-11210

GX71,LX7#,MX7#..EUR

12V 21W,12V 21W(TURN OR BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-23210

LX70,MX72..EUR

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-23210

LX70,MX72..EUR

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80258

LX70,MX72,RX70..WG..(EUR,SA)

 1
81560-80258

LX70,MX72..EUR

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-23210

LX70,MX72..EUR

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-23210

LX70,MX72..EUR

 1
Common parts
90119-05005
90179-05095
