LX70LG-XWMEXW (1984)
Toyota Cressida

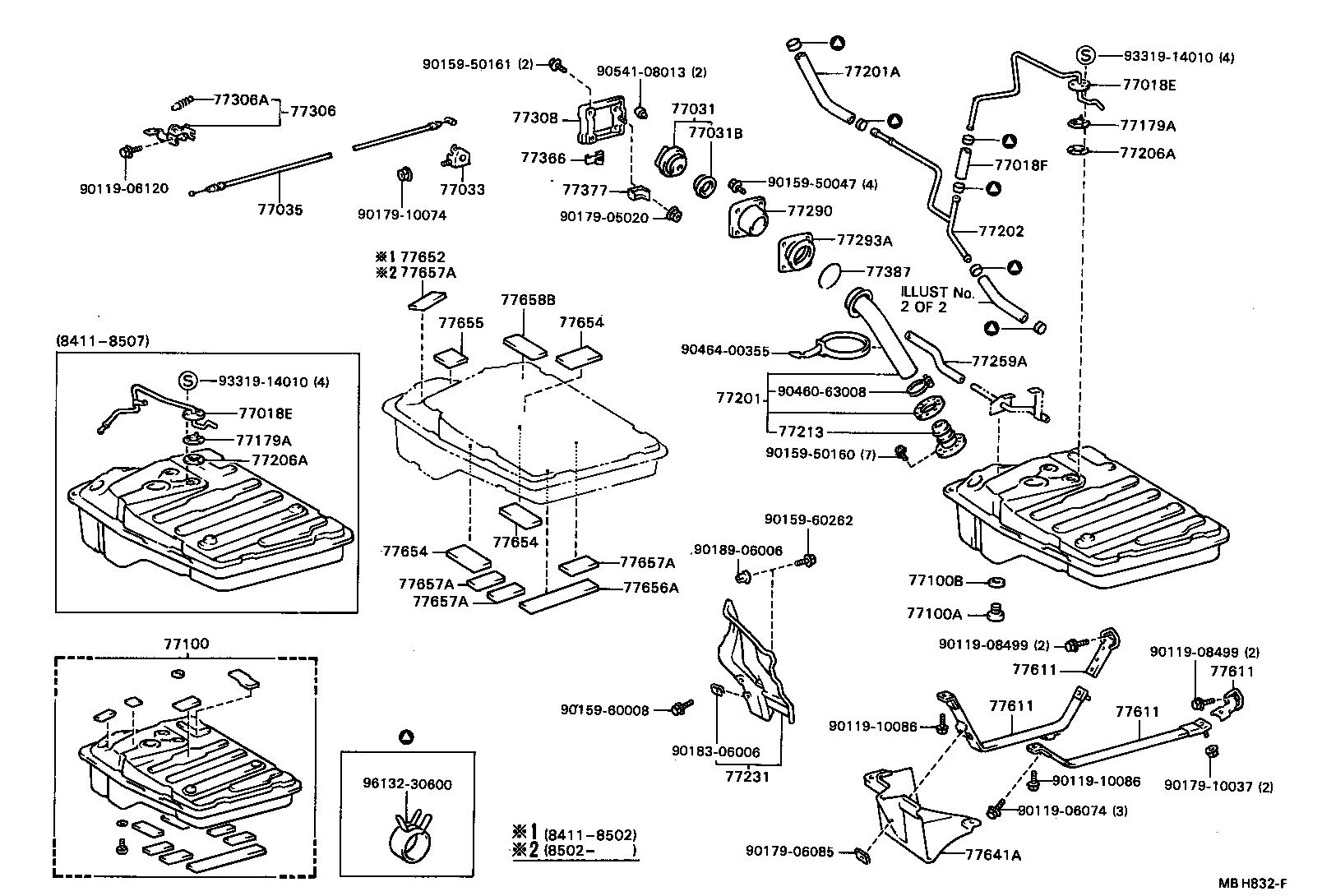

(8411- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
LX7# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-14010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22110 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29195 |
LX70,MX72..EUR |
1 | ||
| 77001-29196 |
LX70,MX72..EUR |
1 | ||
| 77001-29235 |
LX70,MX72..EUR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-23050 |
LX70,MX72,RX70..WG |
1 | ||
| 77201-23040 |
LX70,MX72,RX70..WG |
1 | ||
| 77201-23010 |
LX70,MX72,RX70..WG |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-14090 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-23020 |
LX70,MX72,RX70..WG |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-22020 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-23010 |
LX70,MX72,RX70..WG..LHD |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-22060 |
GX71,LX7#,MX7#,RX70,YX70..SED,WG |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22030 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-23010 |
LX70,MX72,RX70..WG |
1 | ||
| Common parts | ||||
| 90119-06074 | ||||
| 90119-06120 | ||||
| 90119-08499 | ||||
| 90119-10086 | ||||
| 90159-50047 | ||||
| 90159-50160 | ||||
| 90159-50161 | ||||
| 90159-60008 | ||||
| 90159-60262 | ||||
| 90179-05020 | ||||
| 90179-06085 | ||||
| 90179-10037 | ||||
| 90179-10074 | ||||
| 90183-06006 | ||||
| 90189-06006 | ||||
| 90460-63008 | ||||
| 90464-00355 | ||||
| 90541-08013 | ||||
| 93319-14010 | ||||
| 96132-30600 | ||||

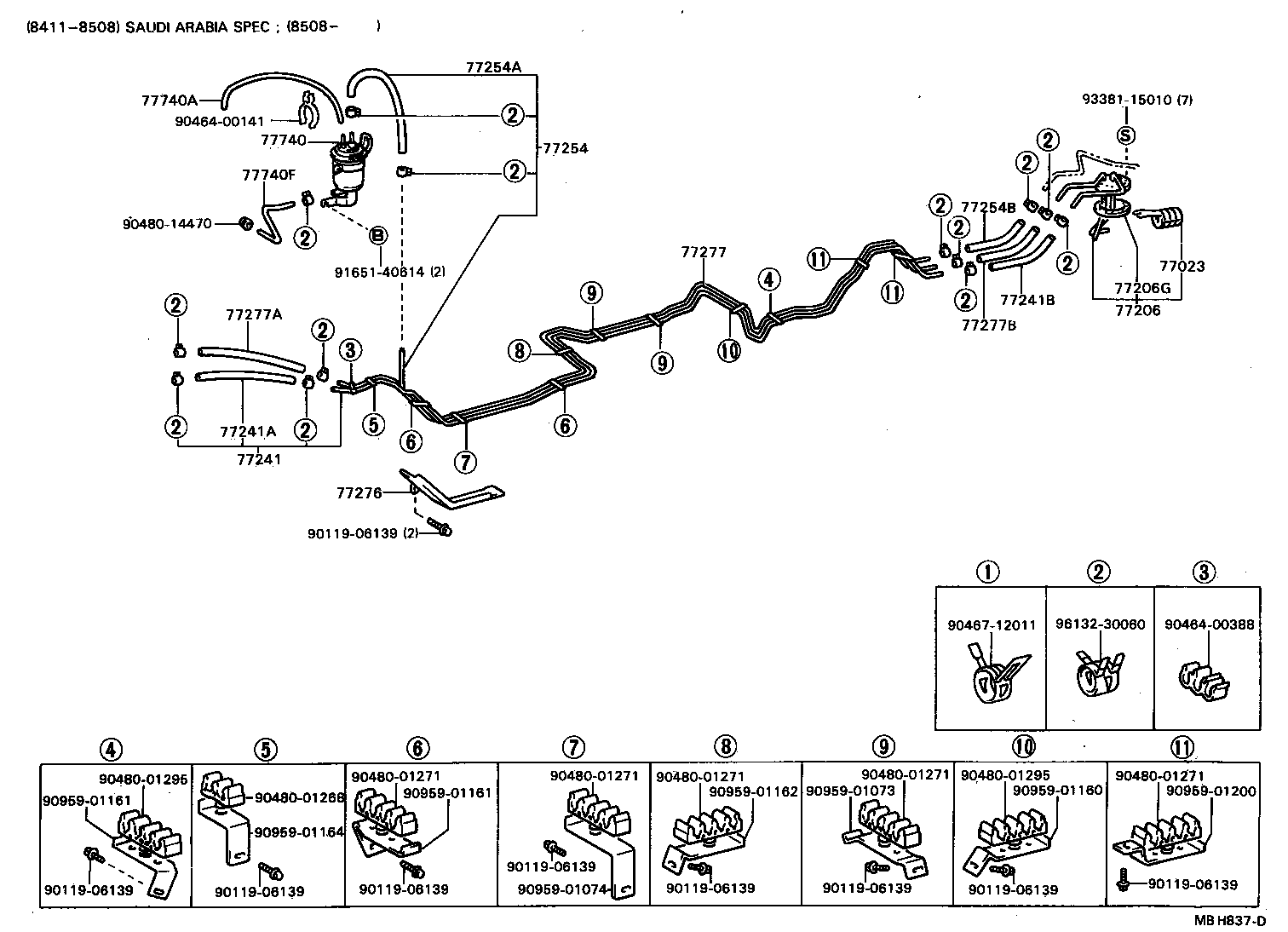

(8411- )WG..ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
LX7# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-23020 |
LX70..EUG |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
LX7#,RX7#,YX70 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-23020 |
LX70..EUG |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LX7# *H,L=220,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LX70..EUG *H,L=260,ID=7.6 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
LX70,MX72,RX70..WG *H,L=280 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22040 |
LX7# |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-23050 |
LX70..EUG |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12054 |
LX7# |
1 | ||
| Common parts | ||||
| 90119-06139 | ||||
| 90464-00141 | ||||
| 90464-00388 | ||||
| 90467-12011 | ||||
| 90480-01268 | ||||
| 90480-01271 | ||||
| 90480-01295 | ||||
| 90480-14470 | ||||
| 90959-01073 | ||||
| 90959-01074 | ||||
| 90959-01160 | ||||
| 90959-01161 | ||||
| 90959-01162 | ||||
| 90959-01164 | ||||
| 90959-01200 | ||||
| 91651-40614 | ||||
| 93381-15010 | ||||
| 96132-30060 | ||||

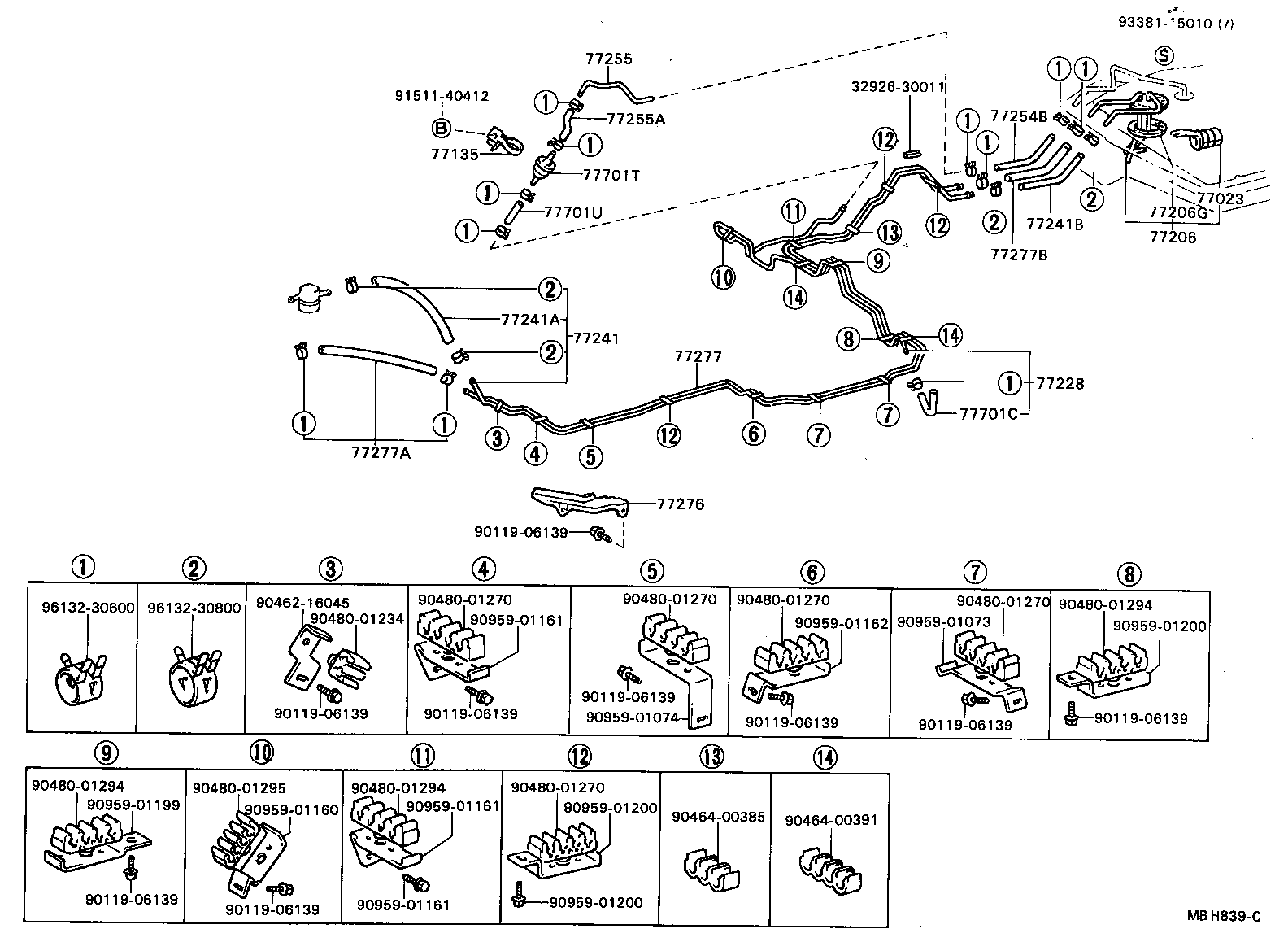

(8411-8608)LX70..EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
LX7# |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-23020 |
LX70,MX72..EUR |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-23020 |
LX70..EUG |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
LX7#,RX7#,YX70 |
1 | ||
| 77228 - TUBE, FUEL TANK EVAPORATION VENT, NO.2 | ||||
| 77027-23010 |
LX70,MX72..EUR |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-23020 |
LX70..EUG |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LX7# *H,L=220,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LX70..EUG *H,L=260,ID=7.6 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
LX70,MX72,RX70..WG *H,L=280 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77227-23020 |
LX70,MX72..EUR |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06010 |
GX71,LX7#,MX7#,RX70,YX70..EUR,GEN,SA *H,L=60 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22040 |
LX7# |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-23050 |
LX70..EUG |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12054 |
LX7# |
1 | ||
| 77701C - HOSE, FUEL, NO.3 (FOR BREATHER VALVE) | ||||
| 95332-06018 |
LX70,MX72..EUR *H,L=180 |
1 | ||
| 95332-06020 |
LX70,MX72..EUR *H,L=180 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
GX71,LX7#,MX7#,RX7#,YX70..EUR,GEN,SA |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06010 |
LX70,MX72..EUR *H,L=100 |
1 | ||
| Common parts | ||||
| 30959-01160 | ||||
| 32926-30011 | ||||
| 90119-06139 | ||||
| 90462-16045 | ||||
| 90464-00385 | ||||
| 90464-00391 | ||||
| 90480-01234 | ||||
| 90480-01270 | ||||
| 90480-01294 | ||||
| 90480-01295 | ||||
| 90959-01073 | ||||
| 90959-01074 | ||||
| 90959-01161 | ||||
| 90959-01162 | ||||
| 90959-01199 | ||||
| 90959-01200 | ||||
| 91511-40412 | ||||
| 93381-15010 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
