LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )WG

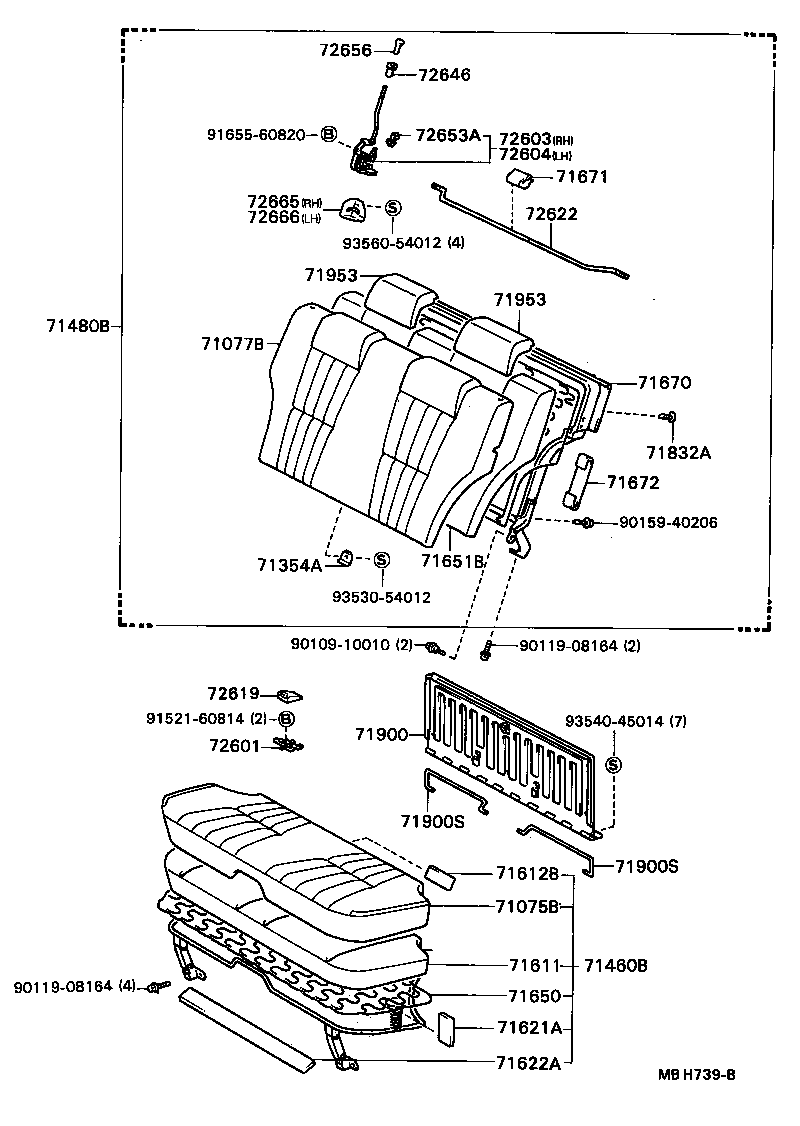

Click highlighted areas on diagram

diagram 71075B 71077B 71354A 71460B 71480B 71611 71612B 71621A 71622A 71650 71651B 71670 71671 71672 71832A 71900 71900S 71900S 71953 71953 72601 72603 72604 72619 72622 72646 72653A 72656 72665 72666 9010910010 9011908164 9011908164 9015940206 9152160814 9165560820 9353054012 9354045014 9356054012
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2301005

LX70,MX72,RX70..WG..GL

FB,BEIGE,BEIGE

 1
71075-2301002

LX70,MX72,RX70..WG..GL

FB,MAROON,MAROON

 1
71075-2301003

LX70,MX72,RX70..WG..GL

FB,GRAY,COOL GRAY

 1
71075-2301002

LX70,MX72..EUR

FB,MAROON,MAROON

 1
71075-2301005

LX70,MX72..EUR

FB,BEIGE,BEIGE

 1
71075-2301003

LX70,MX72..EUR

FB,GRAY,COOL GRAY

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2306003

LX70,MX72,RX70..WG..GL

FB,GRAY,COOL GRAY

 1
71077-2306005

LX70,MX72,RX70..WG..GL

FB,BEIGE,BEIGE

 1
71077-2306002

LX70,MX72,RX70..WG..GL

FB,MAROON,MAROON

 1
71077-2306002

LX70,MX72..EUR

FB,MAROON,MAROON

 1
71077-2306003

LX70,MX72..EUR

FB,GRAY,COOL GRAY

 1
71077-2306005

LX70,MX72..EUR

FB,BEIGE,BEIGE

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-2303002

LX70,MX72,RX70..WG..GL

FB,MAROON,MAROON

 1
71460-2303003

LX70,MX72,RX70..WG..GL

FB,GRAY,COOL GRAY

 1
71460-2303005

LX70,MX72,RX70..WG..GL

FB,BEIGE,BEIGE

 1
71460-2303005

LX70,MX72..EUR

FB,BEIGE,BEIGE

 1
71460-2303003

LX70,MX72..EUR

FB,GRAY,COOL GRAY

 1
71460-2303002

LX70,MX72..EUR

FB,MAROON,MAROON

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2307003

LX70,MX72,RX70..WG..GL

FB,GRAY,COOL GRAY

 1
71480-2307005

LX70,MX72,RX70..WG..GL

FB,BEIGE,BEIGE

 1
71480-2307002

LX70,MX72,RX70..WG..GL

FB,MAROON,MAROON

 1
71480-2307003

LX70,MX72..EUR

FB,GRAY,COOL GRAY

 1
71480-2307002

LX70,MX72..EUR

FB,MAROON,MAROON

 1
71480-2307005

LX70,MX72..EUR

FB,BEIGE,BEIGE

 1
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-0603715

LX70,MX72,RX70..WG

BEIGE,BEIGE

 4
90467-0603723

LX70,MX72,RX70..WG

GRAY,COOL GRAY

 4
72619 - COVER, REAR SEAT BACK LOCK STRIKER
72615-2301003

LX70,MX72,RX70..WG

GRAY,COOL GRAY

 2
72615-2301002

LX70,MX72,RX70..WG

MAROON,MAROON

 2
72615-2301005

LX70,MX72,RX70..WG

BEIGE.,BEIGE

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72655-2002053

LX70,MX72,RX70..WG

GRAY,GRAY

 2
72655-2002010

LX70,MX72,RX70..WG

BEIGE,BEIGE

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72658-2301005

LX70,MX72,RX70..WG

BEIGE,BEIGE

 2
72658-2301003

LX70,MX72,RX70..WG

GRAY,COOL GRAY

 2
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-2301003

LX70,MX72,RX70..WG

GRAY,COOL GRAY

 1
72665-2301005

LX70,MX72,RX70..WG

BEIGE,BEIGE

 1
72666 - COVER, REAR SEAT BACK LOCK, LH
72666-2301005

LX70,MX72,RX70..WG

BEIGE,BEIGE

 1
72666-2301003

LX70,MX72,RX70..WG

GRAY,COOL GRAY

 1
Common parts
90109-10010
90119-08164
90159-40206
91521-60814
91655-60820
93530-54012
93540-45014
93560-54012
