LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )WG

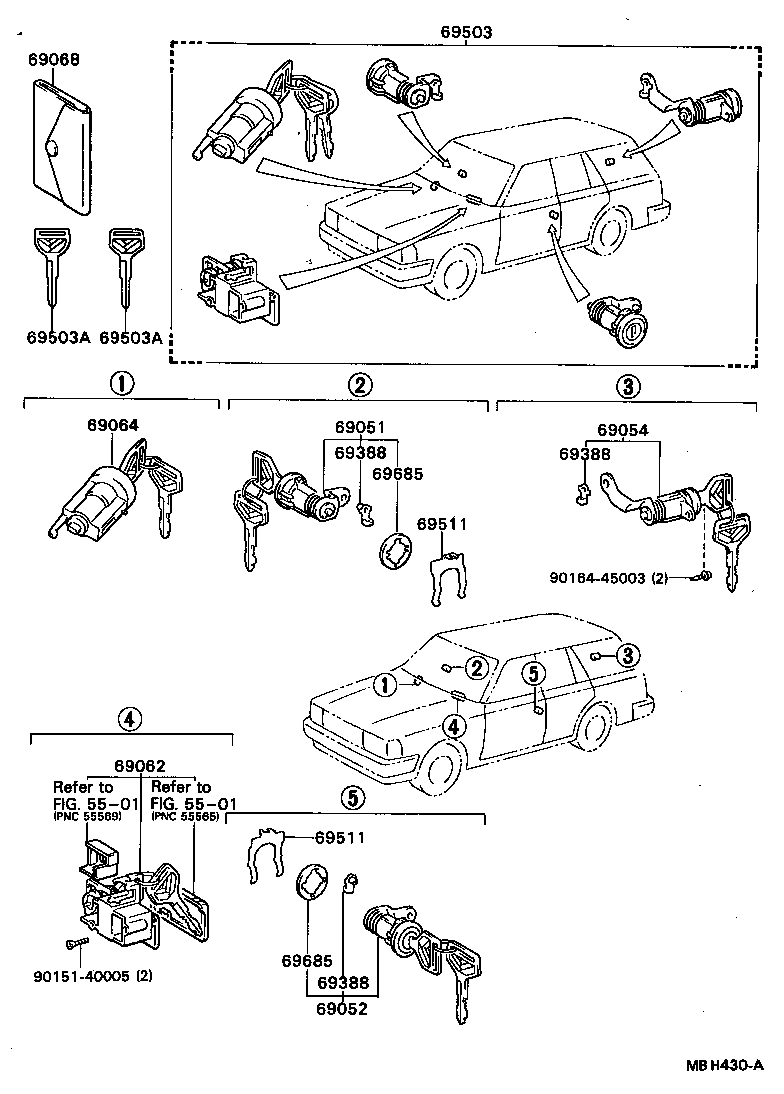

Click highlighted areas on diagram

diagram 5501 5501 69051 69052 69054 69062 69064 69068 69388 69388 69388 69503 69503A 69503A 69511 69511 69685 69685 9015140005 9016445003
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-23070

LX70,MX72..EUR

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-23070

LX70,MX72..EUR

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-23040

LX70,MX72..EUR

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-2304005

LX70,MX72..EUR

BEIGE,BEIGE

 1
69056-2304003

LX70,MX72..EUR

GRAY,COOL GRAY

 1
69056-2304002

LX70,MX72..EUR

MAROON,MAROON

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-23040

LX70,MX72..EUR

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

GX71,LX7#,MX7#,RX7#,YX70

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

LX70,MX72,RX70,72..WG

BACK DOOR

 1
69759-20090

GX71,LX7#,MX7#,RX7#,YX70

LH,FR DOOR

 1
69759-20080

GX71,LX7#,MX7#,RX7#,YX70

RH,FR DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

LX70,MX72,RX70,72..WG

BACK DOOR

 1
69759-20090

GX71,LX7#,MX7#,RX7#,YX70

LH,FR DOOR

 1
69759-20080

GX71,LX7#,MX7#,RX7#,YX70

RH,FR DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

LX70,MX72,RX70,72..WG

BACK DOOR

 1
69759-20090

GX71,LX7#,MX7#,RX7#,YX70

LH,FR DOOR

 1
69759-20080

GX71,LX7#,MX7#,RX7#,YX70

RH,FR DOOR

 1
69503 - CYLINDER SET, LOCK
69005-23050

LX70,MX72..EUR

 1
69503A - KEY, BLANK
90999-00098

LX70,MX72..EUR

SUB KEY,W(*68),SUB

 1
90999-00097

LX70,MX72..EUR

MASTER KEY,W(*68),MASTER

 1
69503A - KEY, BLANK
90999-00098

LX70,MX72..EUR

SUB KEY,W(*68),SUB

 1
90999-00097

LX70,MX72..EUR

MASTER KEY,W(*68),MASTER

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

GX71,LX7#,MX7#,RX7#,YX70

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

GX71,LX7#,MX7#,RX7#,YX70

 2
Common parts
90151-40005
90164-45003
Linked diagrams
5501
