LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )WG

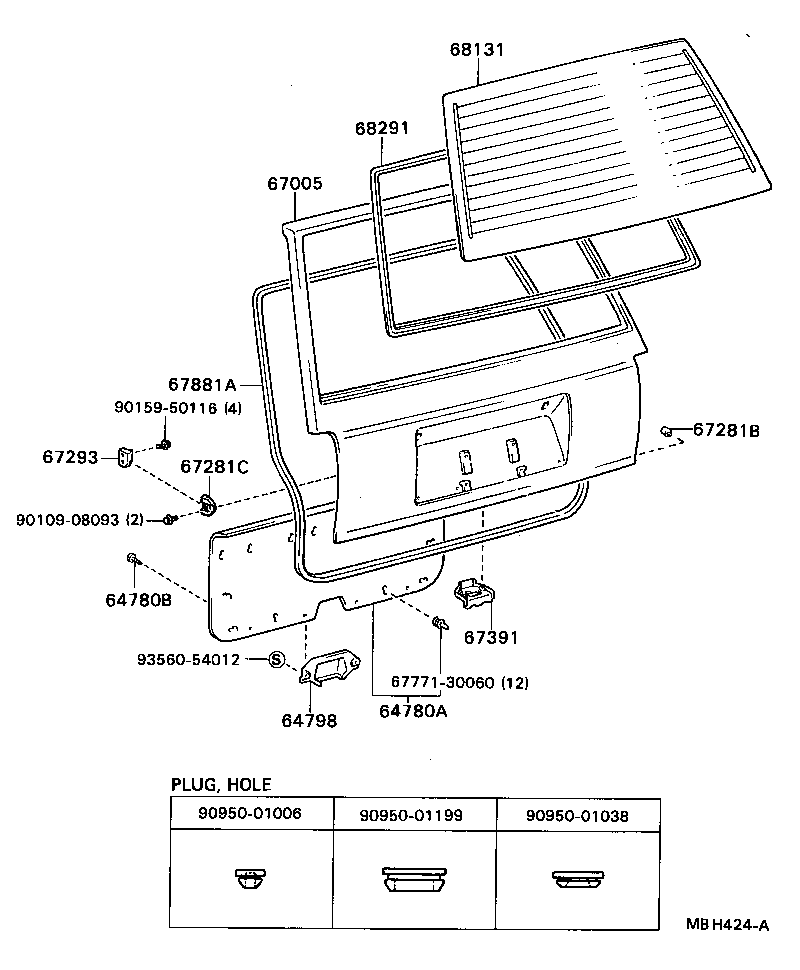

Click highlighted areas on diagram

diagram 64780A 64780B 64798 67005 67281B 67281C 67293 67391 6777130060 67881A 68131 68291 9010908093 9015950116 9095001006 9095001038 9095001199 9356054012
Part # Description Qty Price
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-0811440

LX70,MX72,RX70..WG

GRAY,GRAY

 6
90467-0811450

LX70,MX72,RX70..WG

BEIGE,BEIGE

 6
67005 - PANEL SUB-ASSY, BACK DOOR
67005-23030

LX70,MX72..EUR

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-23010

LX70,MX72,RX70..WG

 1
68131 - GLASS, BACK DOOR
68105-23020

LX70,MX72..EUR

*EHTT,T=3.5,COLD SPEC,*EHTT,T=3.5

 1
Common parts
67771-30060
90109-08093
90159-50116
90950-01006
90950-01038
90950-01199
93560-54012
