LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )WG

Click highlighted areas on diagram

diagram 57207 57207 57458 58101 58101A 58101M 58171 58173 58183 58183 58191 58193 58208 58212C 58233 58235 58236B 58255B 58286 58288 58307 58311 58311E 58313 58314 58318B 58319A 58336B 58336B 58338A 58381 58389 58401D 58616C 58617A 58709 61685A 9016450051 9017605007 9018905023 9165540616 9165540620 9166640616
Part # Description Qty Price
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57208-22030

GX71,LX7#,MX7#,RX7#,YX70

LH

 1
57207-22040

GX71,LX7#,MX7#,RX7#,YX70

RH

 1
57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
57208-22030

GX71,LX7#,MX7#,RX7#,YX70

LH

 1
57207-22040

GX71,LX7#,MX7#,RX7#,YX70

RH

 1
57458 - MEMBER, FRONT FLOOR CROSS, NO.1
57408-22030

GX71,LX7#,MX7#,RX70,YX70

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58111-22130

GX71,LX7#,MX7#,RX7#,YX70

 1
58101A - COVER, TRANSMISSION AUXILIARY
58261-22190

LX7#..5F

 1
58101M - BRACKET, MOUNTING, FLOOR, NO.7
58346-20070

LX70,MX72..EUR

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-22050

GX71,LX7#,MX7#,RX7#,YX70

 1
58173 - DEFLECTOR, FRONT FLOOR STONE
58173-22040

GX71,LX7#,MX7#,RX7#,YX70

RH

 1
58174-22020

GX71,LX7#,MX7#,RX7#,YX70

LH

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-22010

GX71,LX7#,MX7#,RX7#,YX70

LH

 1
58183-22010

GX71,LX7#,MX7#,RX7#,YX70

RH

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-22010

GX71,LX7#,MX7#,RX7#,YX70

LH

 1
58183-22010

GX71,LX7#,MX7#,RX7#,YX70

RH

 1
58191 - FOOTREST, FRONT FLOOR
58192-22020

GX71,LX7#,MX7#,RX7#..LHD

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-22030

GX71,LX7#,MX7#,RX7#,YX70

 1
58212C - PAN, CENTER FLOOR, FRONT
58212-22050

GX71,LX7#,MX7#,RX7#,YX70

 1
58233 - BRACKET, EXHAUST PIPE MOUNTING
58233-22020

GX71,LX7#,MX7#,RX70,YX70

 1
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
90461-07015

LX70,MX72..EUR

 1
58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1
58264-22040

GX71,LX7#,MX7#,RX7#,YX70

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-22070

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
58288 - SEAL, SHIFT LEVER BOOT
58288-22030

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
58616C - PANEL, FRONT FLOOR SILENCER, NO.1
58616-22060

GX71,LX7#,MX7#,RX70,YX70

 1
58617A - PANEL, FRONT FLOOR SILENCER, NO.2
58617-22070

GX71,LX7#,MX7#,RX70,YX70

 1
58709 - BRACKET SUB-ASSY, JACK CLAMP
58709-91601

LX70,MX72,RX70..WG

 1
Common parts
90164-50051
90176-05007
90189-05023
91655-40616
91655-40620
91666-40616

(8411- )WG

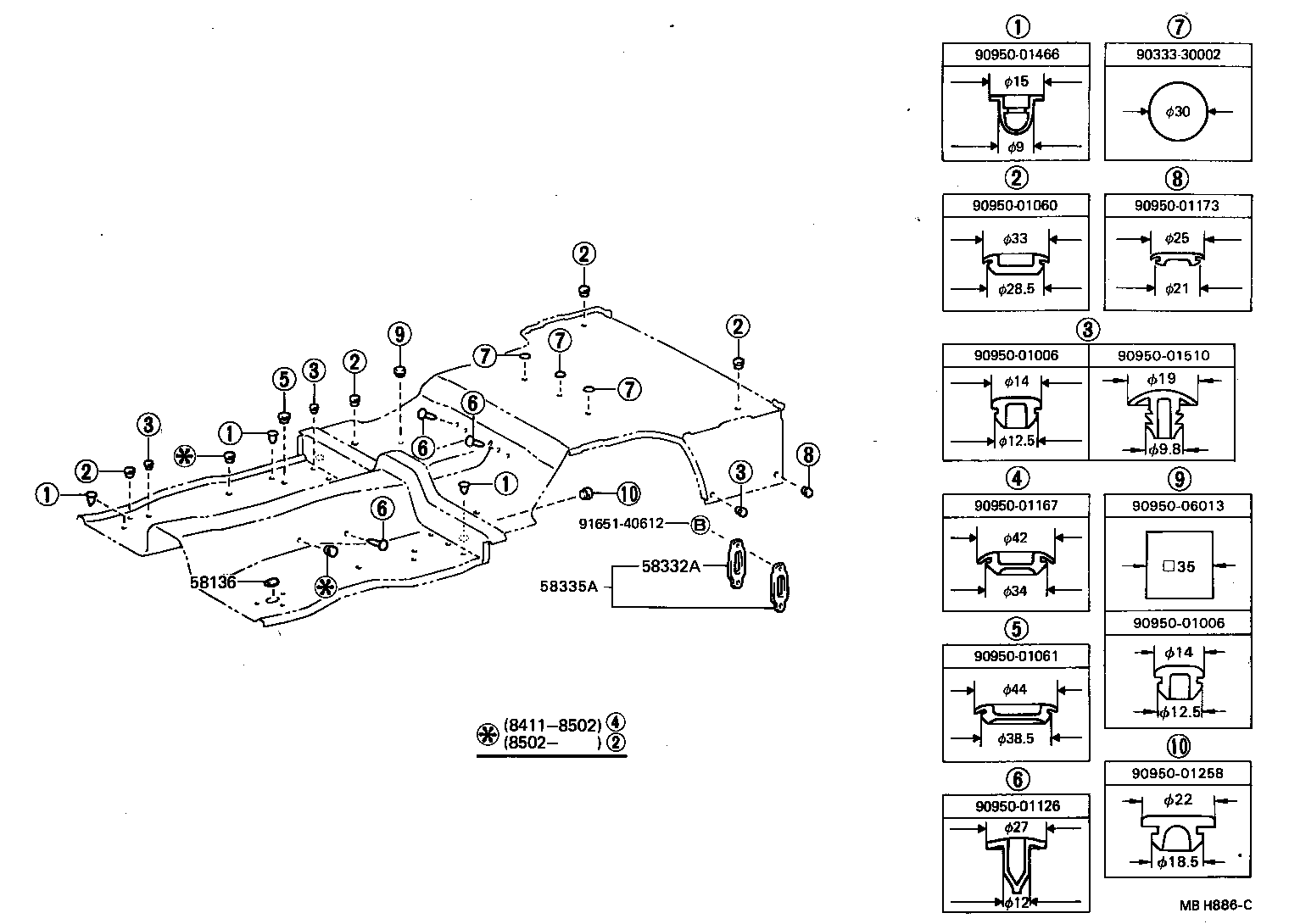

Click highlighted areas on diagram

diagram 58136 58332A 58335A 9033330002 9095001006 9095001006 9095001060 9095001061 9095001126 9095001167 9095001173 9095001258 9095001466 9095001510 9095006013 9165140612
Part # Description Qty Price
Common parts
90333-30002
90950-01006
90950-01060
90950-01061
90950-01126
90950-01167
90950-01173
90950-01258
90950-01466
90950-01510
90950-06013
91651-40612
