LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )WG

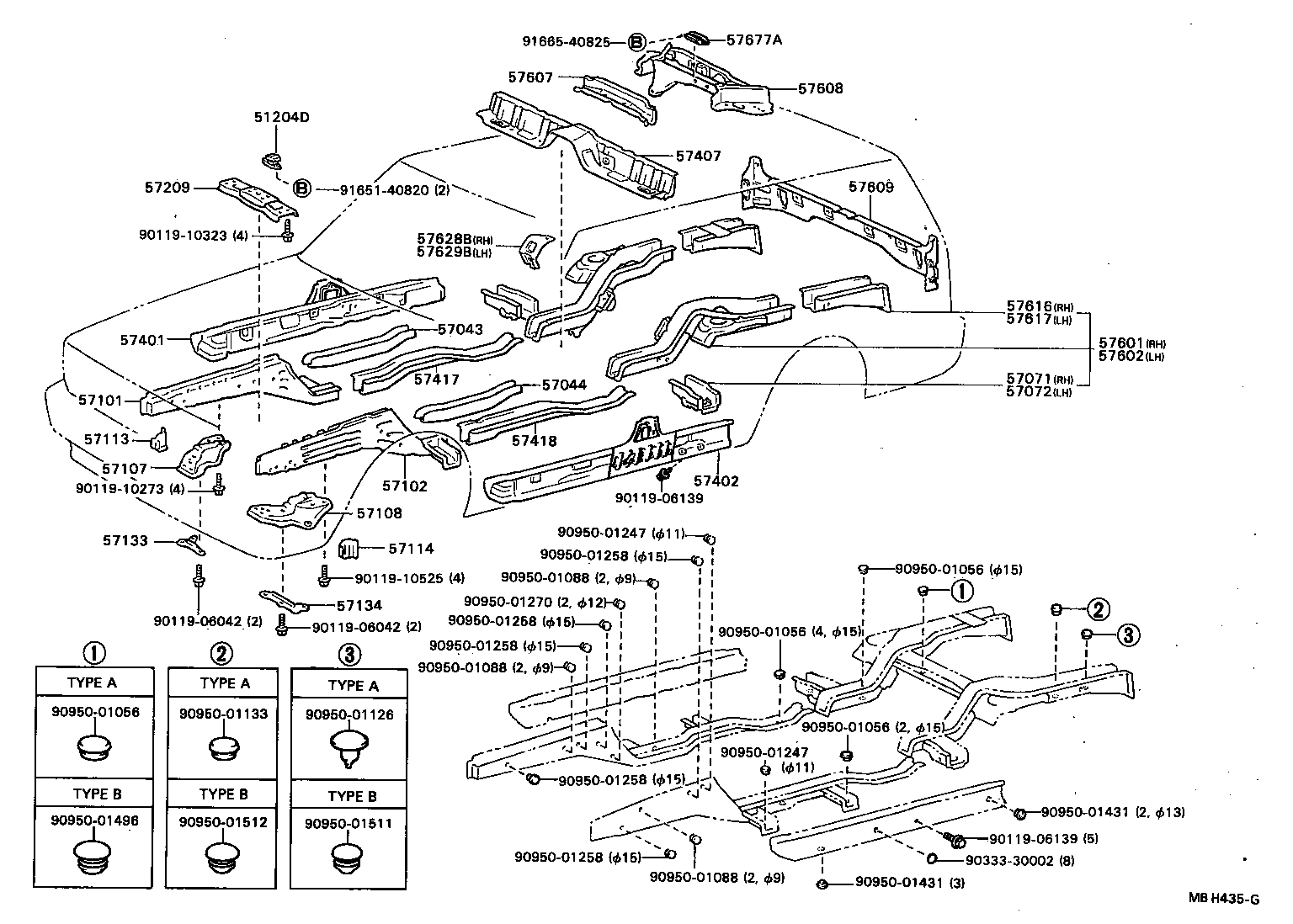

Click highlighted areas on diagram

diagram 51204D 57043 57044 57071 57072 57101 57102 57107 57108 57113 57114 57133 57134 57209 57401 57402 57407 57417 57418 57601 57602 57607 57608 57609 57616 57617 57628B 57629B 57677A 9011906042 9011906042 9011906139 9011906139 9011910273 9011910323 9011910525 9033330002 9095001056 9095001056 9095001056 9095001056 9095001088 9095001088 9095001088 9095001126 9095001133 9095001247 9095001247 9095001258 9095001258 9095001258 9095001258 9095001258 9095001270 9095001431 9095001431 9095001496 9095001511 9095001512 9165140820 9166540825
Part # Description Qty Price
51204D - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51204-22050

LX7#,RX7#

 1
57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57241-22020

GX71,LX7#,MX7#,RX70..LHD

 1
57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57242-22020

GX71,LX7#,MX7#,RX70..LHD

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-22270

GX71,LX7#,MX7#,RX70..LHD

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-22310

GX71,LX7#,MX7#,RX70..LHD

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22070

GX71,LX7#,MX7#,RX7#,YX70

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22140

GX71,LX7#,MX7#,RX7#,YX70

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22060

GX71,LX7#,MX7#,RX70,YX70

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22060

GX71,LX7#,MX7#,RX70,YX70

 1
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-22020

LX70,RX7#..GEN,ME

 1
57134 - PROTECTOR, STRUT BAR BRACKET, LH
57134-22010

LX70,RX7#..GEN,ME

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-22190

LX7#,RX7#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22110

GX71,LX7#,MX7#,RX70,72..(SED,WG)..(EUR,ME)

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22110

GX71,LX7#,MX7#,RX70,72..(SED,WG)..(EUR,ME)

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-22050

GX71,LX7#,MX7#,RX70..LHD

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-22050

GX71,LX7#,MX7#,RX70..LHD

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-23010

LX70,MX72,RX70..WG

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-23010

LX70,MX72,RX70..WG

 1
57629B - PLATE, REAR FLOOR SIDE MEMBER, LH
57629-91604

LX70,MX72,RX70,72..WG

 1
Common parts
90119-06042
90119-06139
90119-10273
90119-10323
90119-10525
90333-30002
90950-01056
90950-01088
90950-01126
90950-01133
90950-01247
90950-01258
90950-01270
90950-01431
90950-01496
90950-01511
90950-01512
91651-40820
91665-40825
