LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

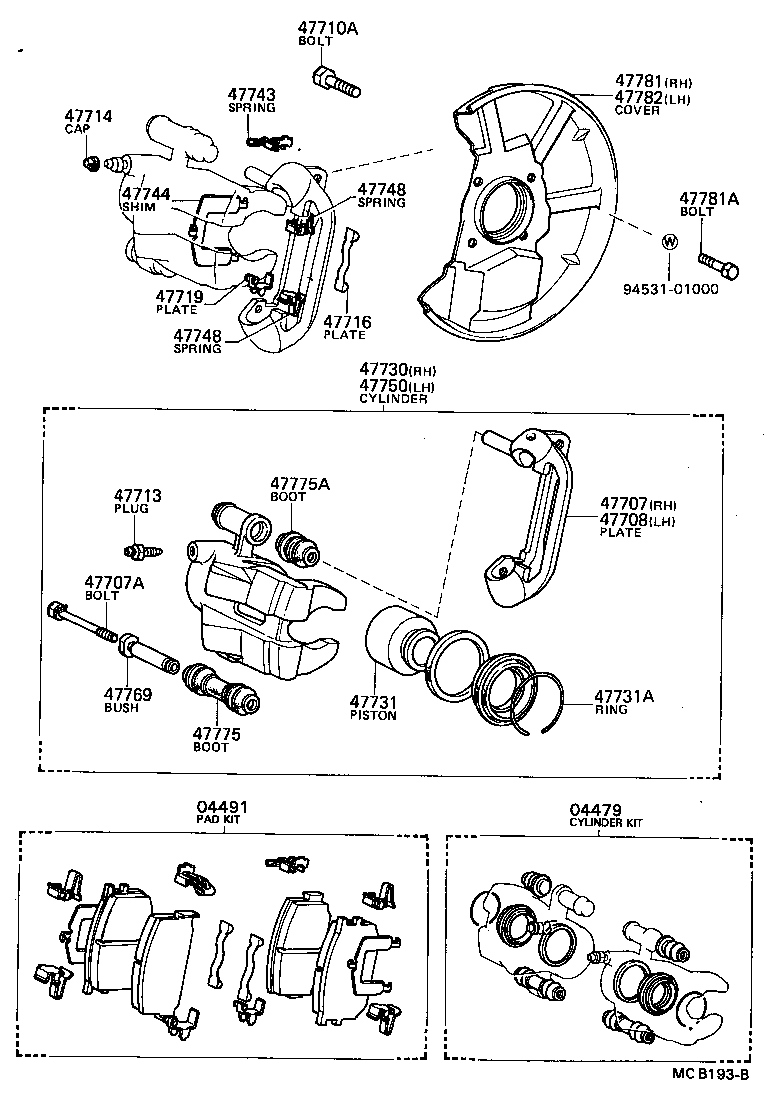

ILLUST NO. 1 OF 2(8408-8608)EUR

Click highlighted areas on diagram

diagram 04479 04491 47707 47707A 47708 47710A 47713 47714 47716 47719 47730 47731 47731A 47743 47744 47748 47748 47750 47769 47775 47775A 47781 47781A 47782 9453101000
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-22010

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

 1
04479-14070

GX71,LX7#,MX7#..EUR

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-14160

GX71,LX7#,MX7#..EUR

 1
04491-22161

GX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA

 1
47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707-14030

GX71,LX7#,MX7#..EUR

 1
47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
90119-08431

GX71,LX7#,MX7#..EUR

 2
47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47708-14030

GX71,LX7#,MX7#..EUR

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12058

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

*12-1.25PX31-20

 4
90119-12080

GX71,LX7#,MX7#..EUR

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12040

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

 2
47547-20010

GX71,LX7#,MX7#..EUR

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GX71,LX7#,MX7#,RX7#,YX70

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-14100

GX71,LX7#,MX7#..EUR

 2
47716-22010

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

 4
47719 - PLATE, FRONT DISC BRAKE PAD GUIDE
47736-14030

GX71,LX7#,MX7#..EUR

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-14140

GX71,LX7#,MX7#..EUR

 1
47730-22150

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 1
47731 - PISTON, FRONT DISC BRAKE
47731-14090

GX71,LX7#,MX7#..EUR

 2
47731-22010

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-69002

GX71,LX7#,MX7#..EUR

 2
47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47717-14050

GX71,LX7#,MX7#..EUR

RH

 1
47718-14090

GX71,LX7#,MX7#..EUR

LH

 1
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-14080

GX71,LX7#,MX7#..EUR

 2
47744-22040

GX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-14050

GX71,LX7#,MX7#..EUR

UPR

 2
47743-14040

GX71,LX7#,MX7#..EUR

LWR

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-14050

GX71,LX7#,MX7#..EUR

UPR

 2
47743-14040

GX71,LX7#,MX7#..EUR

LWR

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-22150

GX71,LX70,RX70..(GL,XL)..(GEN,ME)

 1
47750-14150

GX71,LX7#,MX7#..EUR

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-28010

GX71,LX7#,MX7#..EUR

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-14010

GX71,LX7#,MX7#..EUR

 2
47775A - BOOT, PIN
47776-14010

GX71,LX7#,MX7#..EUR

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-24010

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

 1
47781-22090

GX71,LX7#,MX7#..EUR

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-08341

GX71,LX7#,MX7#,RX7#,YX70

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-24010

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA

 1
47782-22090

GX71,LX7#,MX7#..EUR

 1
Common parts
94531-01000
