LX70LG-XWMEXW (1984)

Toyota Cressida

Production Nov 1984 - Aug 1986
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)2LT

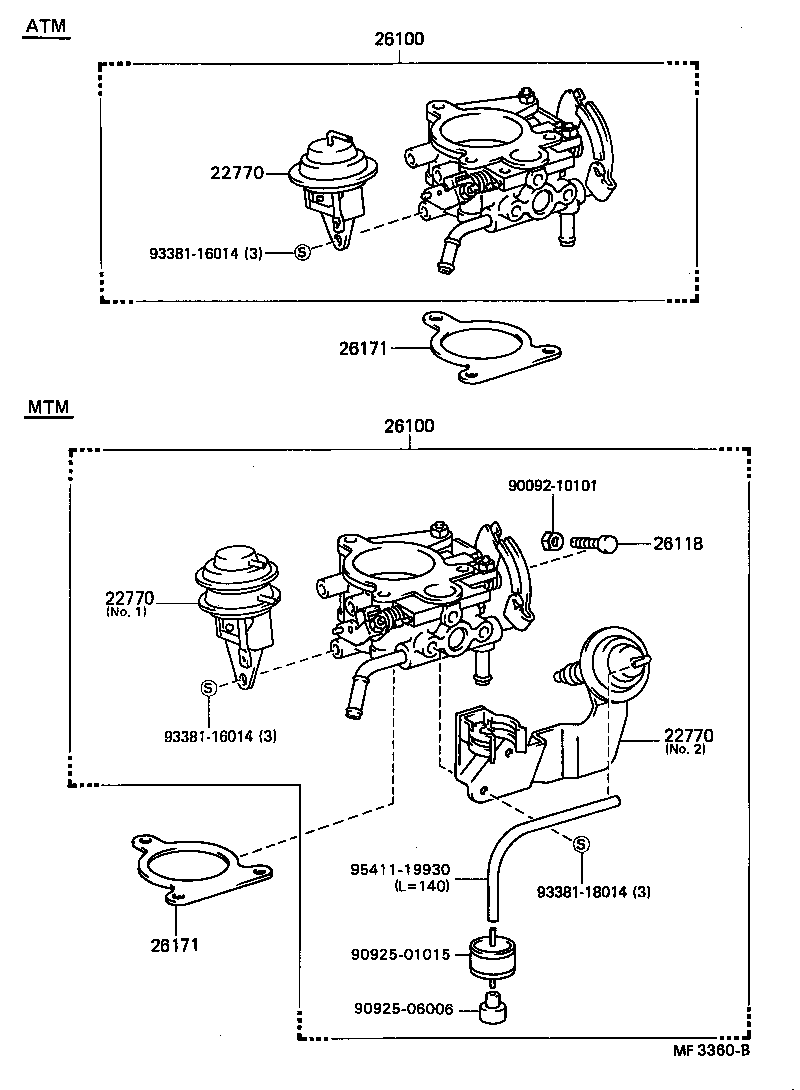

Click highlighted areas on diagram

diagram 22770 22770 22770 26100 26100 26118 26171 26171 9009210101 9092501015 9092506006 9338116014 9338116014 9338118014 9541119930
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-54070

2LT..LX7#..5F

NO.1

 1
26133-54040

2LT..LX7#..5F

NO.2

 1
22770 - ACTUATOR, IDEL UP
26133-54070

2LT..LX7#..5F

NO.1

 1
26133-54040

2LT..LX7#..5F

NO.2

 1
22770 - ACTUATOR, IDEL UP
26133-54070

2LT..LX7#..5F

NO.1

 1
26133-54040

2LT..LX7#..5F

NO.2

 1
26100 - VENTURI ASSY
26100-54032

2LT..LX7#..5F

 1
26100 - VENTURI ASSY
26100-54032

2LT..LX7#..5F

 1
26118 - SCREW, STOP PLATE ADJUSTING
26118-54030

2LT..LX7#..5F

 1
26171 - GASKET, VENTURI
26171-54010

2LT..LX7#

 1
26171 - GASKET, VENTURI
26171-54010

2LT..LX7#

 1
Common parts
90092-10101
90925-01015
90925-06006
93381-16014
93381-18014
95411-19930
