LX70LG-XWMEXW (1984)
Toyota Cressida
Production
Nov 1984
-
Aug 1986
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408-8608)2LT..5F

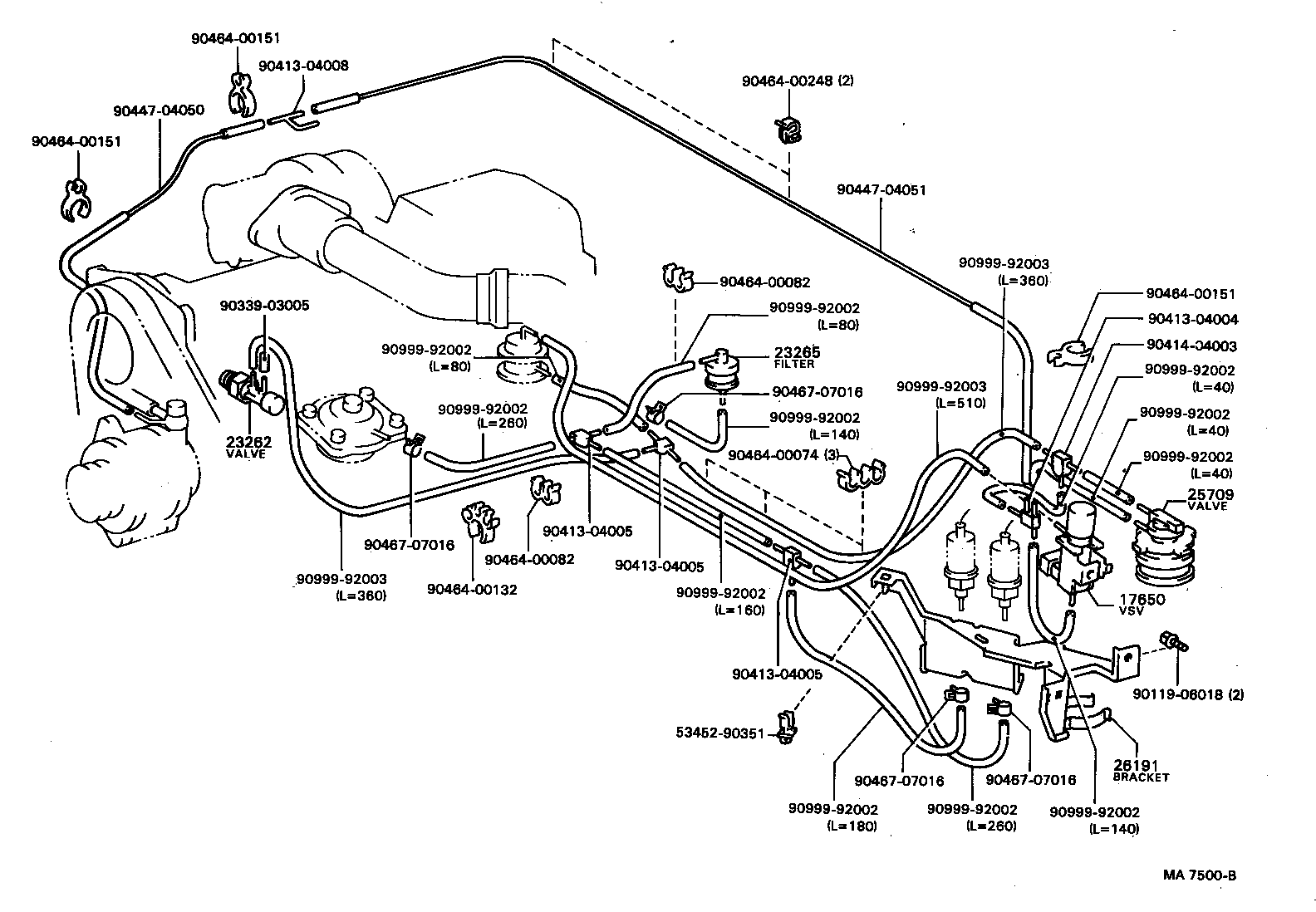

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30110 |
2LT..LX7#..5F |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-13020 |
2LT..LX7#..5F |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11009 |
2LT..LX7# |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-37010 |
2LT..LX7#..5F |
1 | ||
| 26191 - BRACKET, INTAKE AIR CONTROL VALVE | ||||
| 26191-54070 |
2LT..LX7#..5F |
1 | ||
| Common parts | ||||
| 53452-90351 | ||||
| 90119-06018 | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90414-04003 | ||||
| 90447-04050 | ||||
| 90447-04051 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00132 | ||||
| 90464-00151 | ||||
| 90464-00248 | ||||
| 90467-07016 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
