LX70L-XEPES (1984)

Toyota Cressida

Production Aug 1984 - Aug 1988
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)MX73..LHD..EUG ; (8408- )LHD..GEN

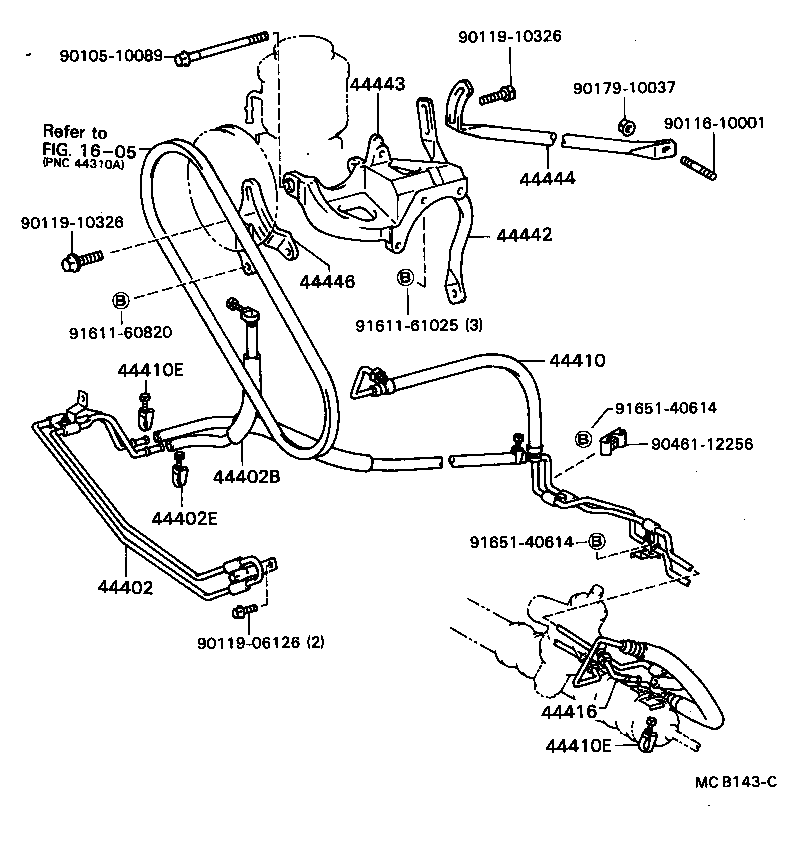

Click highlighted areas on diagram

diagram 1605 44402 44402B 44402E 44410 44410E 44410E 44416 44442 44443 44444 44446 9010510089 9011610001 9011906126 9011910326 9011910326 9017910037 9046112256 9161160820 9161161025 9165140614 9165140614
Part # Description Qty Price
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22190

LX7#

 1
44443 - BRACKET, PUMP
44443-22080

LX7#

 1
44446 - STRUT, ADJUSTING
44446-30070

LX7#

 1
Common parts
90105-10089
90116-10001
90119-06126
90119-10326
90179-10037
90461-12256
91611-60820
91611-61025
91651-40614
Linked diagrams
1605

(8408- )LX7#

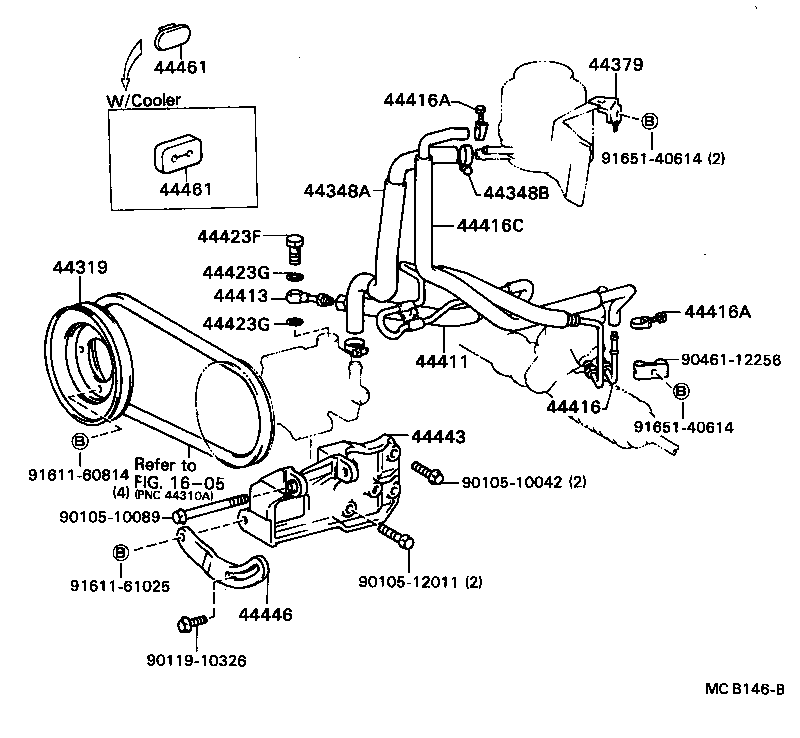

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44379 44411 44413 44416 44416A 44416A 44416C 44423F 44423G 44423G 44443 44446 44461 44461 9010510042 9010510089 9010512011 9011910326 9046112256 9161160814 9161161025 9165140614 9165140614
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-30030

LX7#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-22110

LX7#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LX7#,RX7#

 1
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-22050

LX7#

 1
44411 - HOSE, PRESSURE FEED
44411-22380

LX7#

 1
44413 - TUBE, PRESSURE FEED, NO.1
44413-22180

LX7#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22190

LX7#

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LX7#;GX71,RX70..RHD

 2
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LX7#;GX71,RX70..RHD

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
44412-22290

LX7#

 1
44423F - BOLT, UNION
90401-16008

LX7#

 1
44423G - GASKET, UNION BOLT
90430-16242

LX7#

 2
44423G - GASKET, UNION BOLT
90430-16242

LX7#

 2
44443 - BRACKET, PUMP
44443-22080

LX7#

 1
44446 - STRUT, ADJUSTING
44446-30070

LX7#

 1
Common parts
90105-10042
90105-10089
90105-12011
90119-10326
90461-12256
91611-60814
91611-61025
91651-40614
Linked diagrams
1605
