LX60RG-XWPDS (1980)
Toyota Cressida
(8009-8208)LX60

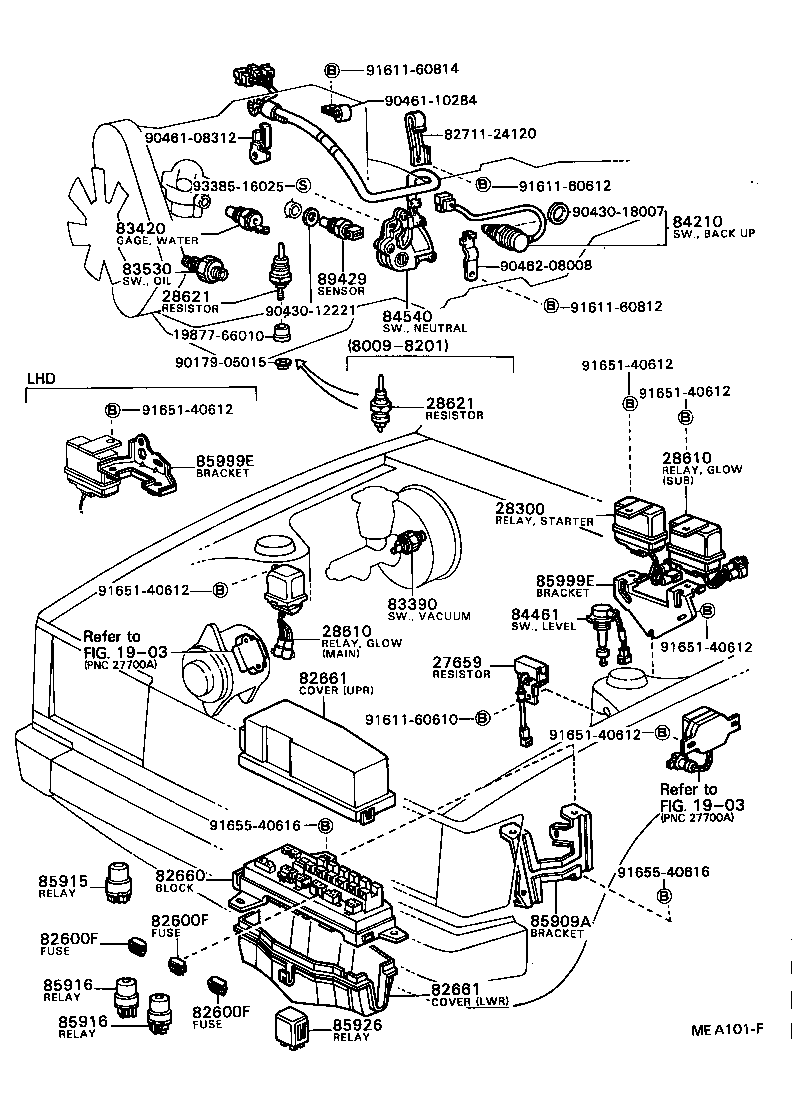

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27659 - RESISTOR, SOLENOID | ||||
| 27659-54070 |
L..LX60 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-54030 |
L..LX60 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54031 |
L..LX60 SUB |
1 | ||
| 28610-54030 |
L..LX60 SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54031 |
L..LX60 SUB |
1 | ||
| 28610-54030 |
L..LX60 SUB |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22071 |
LX60,RX6#,TX62..GEN,ME,SA,SAA SUMITOMO |
1 | ||
| 82660-22080 |
LX60,RX6#,TX62..GEN,ME,SA,SAA YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22011 |
LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA UPR,SUMITOMO |
1 | ||
| 82661-22040 |
LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA UPR,YAZAKI |
1 | ||
| 82661-22060 |
GX6#,LX60,MX6#,RX6#,TX62 LWR,YAZAKI |
1 | ||
| 82661-22030 |
GX6#,LX60,MX6#,RX6#,TX62 LWR,SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22011 |
LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA UPR,SUMITOMO |
1 | ||
| 82661-22040 |
LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA UPR,YAZAKI |
1 | ||
| 82661-22060 |
GX6#,LX60,MX6#,RX6#,TX62 LWR,YAZAKI |
1 | ||
| 82661-22030 |
GX6#,LX60,MX6#,RX6#,TX62 LWR,SUMITOMO |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LX60 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
GX6#,LX60,MX6#,RX6#,TX62 DENSO |
1 | ||
| 83420-20020 |
GX6#,LX60,MX6#,RX6#,TX62 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
LX60 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
RX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,5F |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-30040 |
LX60 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30191 |
LX60,MX62..4FC |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX60,MX62,RX6#,TX62 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX60,MX62,RX6#,TX62 |
2 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-22080 |
LX60..RHD |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-22080 |
LX60..RHD |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LX60 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 82711-24120 | ||||
| 90179-05015 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-10284 | ||||
| 90462-08008 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69025 |
LX60,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL)..GEN W/*TIS |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12030 |
GX6#,LX60,MX6#,RX6#..DLX,GL,SXL,XL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-22032 |
LX60,MX62,RX6#..DLX,GL,SXL,XL |
1 | ||
| 84119-22031 |
LX60,MX62,RX6#..DLX,GL,SXL,XL |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
GX6#,LX60,MX6#,RX6#..DLX,GL,SXL,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29075 |
LX60,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL)..GEN W/*TIS |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22190 |
RX60..RHD..GEN;LX60,TX62..RHD..(3FC,4F,5F)..(GEN,SA) |
1 | ||
| 84310-60120 |
LX60,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL)..GEN W/*IW & *TIS |
1 | ||
| 84310-22200 |
LX60,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL)..GEN W/*TIS |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39095 |
LX60,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL)..GEN W/*TIS |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22080 |
LX60,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL)..GEN W/*TIS |
1 | ||
| 84450-27030 |
LX60,RX60..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29385 |
RX60..RHD..GEN;LX60,TX62..RHD..(3FC,4F,5F)..(GEN,SA) |
1 | ||
| 84652-29395 |
LX60,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL)..GEN W/*TIS |
1 | ||
| 84652-69025 |
LX60,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL)..GEN W/*IW & *TIS |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12060 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22040 |
LX60,MX62,RX60..RHD..(ARL,EUR,GEN) |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
LX60,MX62,RX60..RHD..(ARL,EUR,GEN) 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22050 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-20010 |
LX60,MX62,RX60..WG |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12081 |
LX60,MX62,RX6# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12081 |
LX60,MX62,RX6# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11024 |
GX6#,LX60,MX6#,RX6# 12V 1.4W,12V 1.4W |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-22010 |
LX60,MX62,RX60..WG..DLX..(ARL,EUR,GEN) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22090 |
GX60,LX60,MX6#,RX6#,TX62..ARL,GEN,ME,SA,SAA |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
GX60,LX60,MX6#,RX6#,TX62..ARL,GEN,ME,SA,SAA 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
GX6#,LX60,MX62,RX6#,TX62 |
1 | ||
| Common parts | ||||
| 82711-14530 | ||||
| 82711-14550 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-54100 |
L..LX60..GEN |
1 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20010 |
LX60,MX62,RX6#,TX62 *HEA & COOLER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22060 |
LX60,MX62,RX6#..DLX,GL,SXL,XL |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-30060 |
LX60..GEN |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90179-06015 | ||||
| 90179-06060 | ||||
| 91651-40612 | ||||
| 93385-16012 | ||||
| 93540-55016 | ||||
| 93566-55512 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29415 |
LX60,MX62,RX60..WG..DLX |
1 | ||
| 83320-29545 |
LX60..WG..DLX |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22030 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20010 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22050 |
LX60,MX62,RX60 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22050 |
LX60,MX62,RX60 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
LX60,MX62,RX60 MATSUSHITA |
1 | ||
| 84340-22071 |
GX6#,LX60,MX62,RX6#,TX62 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| Common parts | ||||
| 90179-08026 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90560-10021 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-41010 |
L..LX60..4FC..GEN |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54100 |
L..LX60..GEN |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
LX60,MX62,RX6#,TX62 DEFOGGER |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-22020 |
LX60,MX62,RX60..WG..DLX..(ARL,EUR,GEN) *BDEL |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22050 |
LX60,MX62 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22020 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| Common parts | ||||
| 90119-06007 | ||||
| 90119-06067 | ||||
| 91651-40616 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||
(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85490 - SOLENOID ASSY, DOOR CONTROL BACK | ||||
| 85450-91601 |
LX60,MX62,RX60..WG..DLX..(ARL,EUR,GEN) |
1 | ||
| Common parts | ||||
| 84739-30020 | ||||
| 91521-40610 | ||||
| 91651-40614 | ||||
| 93316-16012 | ||||
| 93385-16012 | ||||
| 93540-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
