LX60LG-XWMDS (1980)
Toyota Cressida
(8009- )SXL ; (8009- )MX6# ; (8009- )GL..SDZ ; (8009- )RX60..LHD..EUG ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30400 |
LX60 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30400 |
LX60 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30400 |
LX60 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
LX60,MX62 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
LX60,MX62 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
LX60,MX62 |
1 | ||
| Common parts | ||||
| 90099-04950 | ||||
| 90119-08225 | ||||
| 90119-10079 | ||||
| 90119-10172 | ||||
| 91111-70850 | ||||
| 91111-70855 | ||||
| 91111-71065 | ||||
| 91111-71070 | ||||
| 91112-70865 | ||||
| 91112-71065 | ||||
| 91651-60865 | ||||
| 91651-61065 | ||||
| 91651-71030 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94612-11000 | ||||

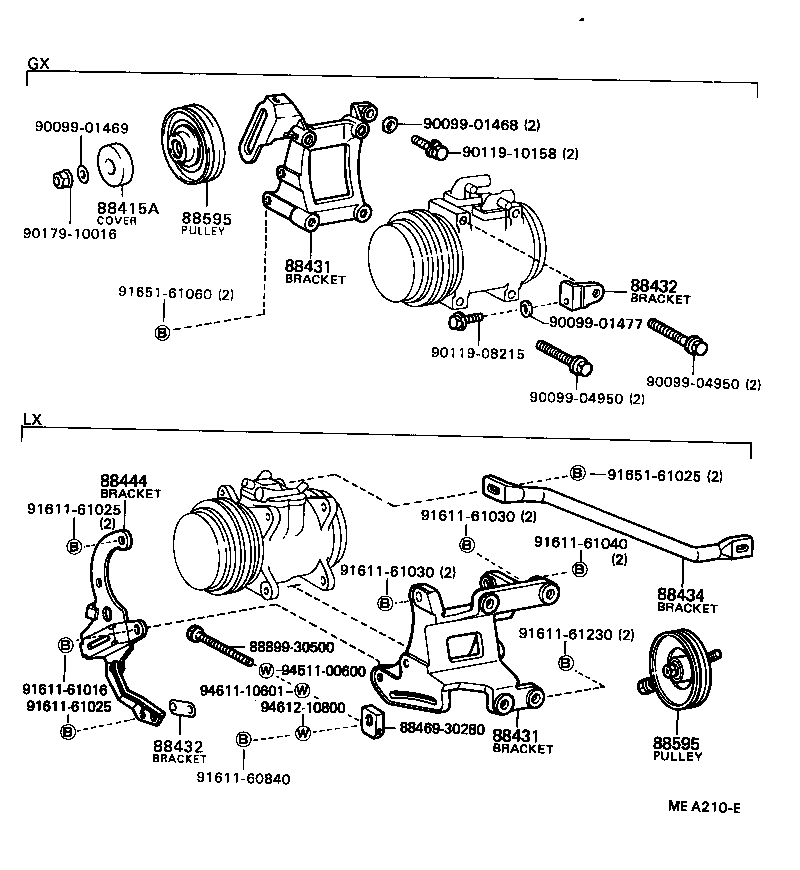

(8009-8208)LX60 ; (8208- )GX61,LX60..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30400 |
LX60 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30400 |
LX60 |
1 | ||
| 88434 - BRACKET, COMPRESSOR MOUNTING, NO.4 | ||||
| 88434-30321 |
LX60 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-22040 |
LX60 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
LX60,MX62 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
LX60,MX62 |
1 | ||
| Common parts | ||||
| 88469-30280 | ||||
| 88899-30500 | ||||
| 90099-01468 | ||||
| 90099-01469 | ||||
| 90099-01477 | ||||
| 90099-04950 | ||||
| 90119-08215 | ||||
| 90119-10158 | ||||
| 90179-10016 | ||||
| 91611-60840 | ||||
| 91611-61016 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61040 | ||||
| 91611-61230 | ||||
| 91651-61025 | ||||
| 91651-61060 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| 94612-10800 | ||||
(8009- )SXL ; (8009- )LX60 ; (8009- )GL..SDZ ; (8009- )RX60..LHD..EUG ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-22010 |
LX60 |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20070 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
RX60..SXL;RX60..GL..SDZ;GX6#,LX60,MX6#;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04926 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
RX60..SXL;RX60..GL..SDZ;GX6#,LX60,MX6#;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-14030 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) RR |
1 | ||
| 88321-20061 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) RR |
1 | ||
| 88321-20061 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-20040 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) RR |
1 | ||
| 88305-20070 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-20040 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) RR |
1 | ||
| 88305-20070 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) LARGE |
2 | ||
| 88307-20050 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) LARGE |
2 | ||
| 88307-20050 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) LARGE |
2 | ||
| 88307-20050 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) LARGE |
2 | ||
| 88307-20050 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) SMALL |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-30310 |
LX60..LHD |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
RX60..SXL;RX60..GL..SDZ;GX6#,LX60,MX6#;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
RX60..SXL;RX60..GL..SDZ;GX6#,LX60,MX6#;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20050 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
3 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA) |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA) |
6 | ||
| 88329D - RING, PISTON | ||||
| 88317-20030 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-22100 |
LX60 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30270 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20050 |
LX60;RX60..SXL;RX60..GL..SDZ;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RX60..SXL;RX60..GL..SDZ;GX6#,LX60,MX6#;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RX60..SXL;RX60..GL..SDZ;GX6#,LX60,MX6#;RX60..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..LHD..(GEN,ME,SAA) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
2 | ||
(8009- )SXL ; (8009- )GL..SDZ ; (8009-)GX6#,LX60,MX6# ; (8009- )RX60..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
LX60 |
1 | ||
| 88412-22030 |
LX60 |
1 | ||
| 88412-26010 |
LX60,MX62 |
1 | ||
| 88412-26010 |
LX60,MX62 |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
LX60 |
1 | ||
| 88412-22030 |
LX60 |
1 | ||
| 88412-26010 |
LX60,MX62 |
1 | ||
| 88412-26010 |
LX60,MX62 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22030 |
LX60 |
1 | ||
| 88411-22030 |
LX60 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-01270 |
LX60 |
1 | ||
| 99322-01270 |
LX60 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-22240 |
LX60..LHD |
1 | ||
| 88320-22240 |
LX60..LHD |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
LX60 |
1 | ||
| 88410-22080 |
LX60 |
1 | ||
| 88410-22040 |
LX60 |
1 | ||
| 88410-22040 |
LX60 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
2 | ||
| 90099-10117 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
2 | ||
| 90099-10117 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
2 | ||
| 90099-10117 |
LX60,MX62;RX60..RHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA) |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07113 |
LX60,MX62 |
1 | ||
| 90099-07113 |
LX60,MX62 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07113 |
LX60,MX62 |
1 | ||
| 90099-07113 |
LX60,MX62 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-22020 |
LX60 |
1 | ||
| 88403-22020 |
LX60 |
1 | ||
| Common parts | ||||
| 88899-14030 | ||||
(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-00985 |
L..LX60 L=985 |
1 | ||
| 99332-10985 |
L..LX60 L=985 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02080 |
LX60..DLX |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-01270 |
LX60 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
