Toyota Cressida LX60 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
CRESSIDA
LX60LG-XWMDS (1980)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

LX60LG-XWMDS (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982

Engine L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8009- )GL..SDZ ; (8009- )RX60..LHD..EUG ;(8009- )GX6#,LX60,MX6# ; (8009-

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-22160	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88460 - CONDENSER ASSY, COOLER
88460-22160	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88470B - BOLT, FUSE
90099-04579	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88470B - BOLT, FUSE
90099-04579	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22350	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22350	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	5
88891A - PACKING A (FOR COOLER)
88578-22080	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88891A - PACKING A (FOR COOLER)
88578-22080	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88891B - PACKING B (FOR COOLER)
88578-22090	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
88891B - PACKING B (FOR COOLER)
88578-22090	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
Common parts
88467-14040
88467-22050
88467-22060
88688-22120
88688-22150
90179-06115
93385-16012
93385-16016

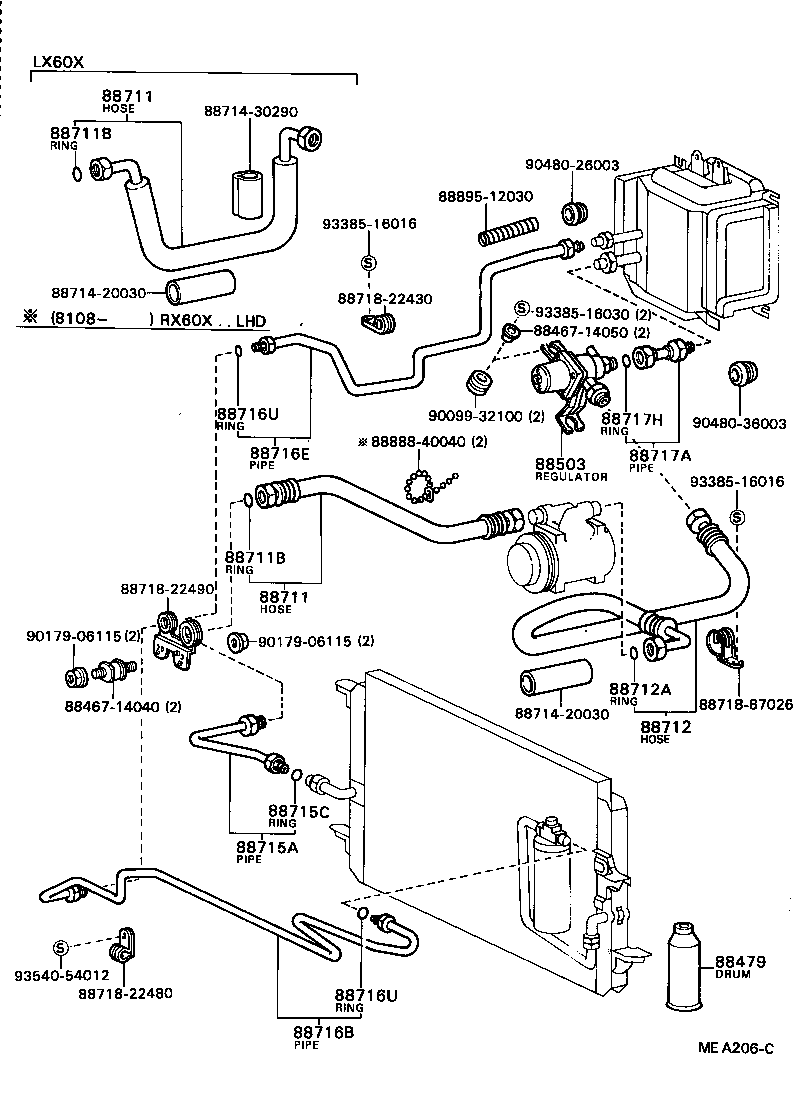

(8009- )LX60..LHD ; (8009- )RX60..LHD..EUG; (8009- )RX60..LHD..GEN,ME,SAA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA) 400G	09/1980 - 08/1982	2
88503 - REGULATOR ASSY, PRESSURE
88503-22110	LX60..LHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA)	09/1980 - 07/1984	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22240	LX60	09/1980 - 08/1982	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22240	LX60	09/1980 - 08/1982	1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14046	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14046	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22340	LX60..LHD	09/1980 - 07/1984	1
88712-22380	LX60..LHD W/BOOST VENTILATOR	09/1980 - 08/1982	1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14045	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-22070	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88715C - RING, O(FOR COOLER REFRIGERANT DISCHARGE PIPE)
90099-14046	LX60;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22380	GX61,LX60..LHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA)	09/1980 - 07/1984	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-22370	LX60..LHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA)	09/1980 - 08/1982	1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	5
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22170	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	1
88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
90099-14045	LX60,MX62;RX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)	09/1980 - 08/1982	2
Common parts
88467-14040
88467-14050
88714-20030
88714-30290
88718-22430
88718-22480
88718-22490
88718-87026
88888-40040
88895-12030
90099-32100
90179-06115
90480-26003
90480-36003
93385-16016
93385-16030
93540-54012

LX60LG-XWMDS (1980)

(8009- )GL..SDZ ; (8009- )RX60..LHD..EUG ;(8009- )GX6#,LX60,MX6# ; (8009-

(8009- )LX60..LHD ; (8009- )RX60..LHD..EUG; (8009- )RX60..LHD..GEN,ME,SAA
