LX60LG-XWMDS (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )LX60..LHD

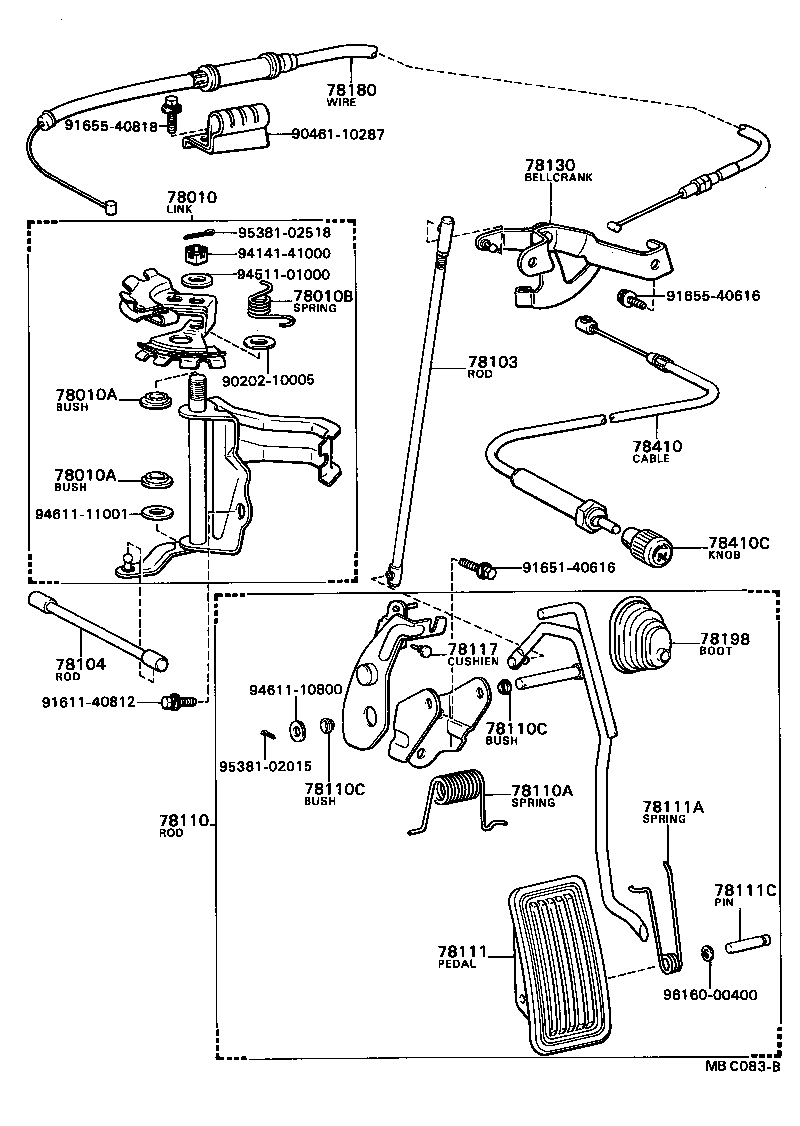

Click highlighted areas on diagram

diagram 78010 78010A 78010A 78010B 78103 78104 78110 78110A 78110C 78110C 78111 78111A 78111C 78117 78130 78180 78198 78410 78410C 9020210005 9046110287 9161140812 9165140616 9165540616 9165540818 9414141000 9451101000 9461110800 9461111001 9538102015 9538102518 9616000400
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78100-30460

LX60

 1
78010A - BUSH (FOR ACCELERATOR LINK)
90386-10138

LX60

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-10138

LX60

 2
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90508-16010

LX60

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-22090

LX60,RX60..LHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120

LX60

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22130

LX60..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23018

LX60,RX60..LHD

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08003

GX6#,LX60,RX60..LHD

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08003

GX6#,LX60,RX60..LHD

 2
78111 - PEDAL, ACCELERATOR
78111-12100

LX60,RX60..LHD

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

LX60,RX60..LHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

LX60,RX60..LHD

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-22050

LX60..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22230

LX60..LHD

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-22020

LX60,RX60..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78401-22030

LX60..LHD

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

LX60

 1
Common parts
90202-10005
90461-10287
91611-40812
91651-40616
91655-40616
91655-40818
94141-41000
94511-01000
94611-10800
94611-11001
95381-02015
95381-02518
96160-00400
