LX60LG-XWMDS (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )GX60,LX60..LHD

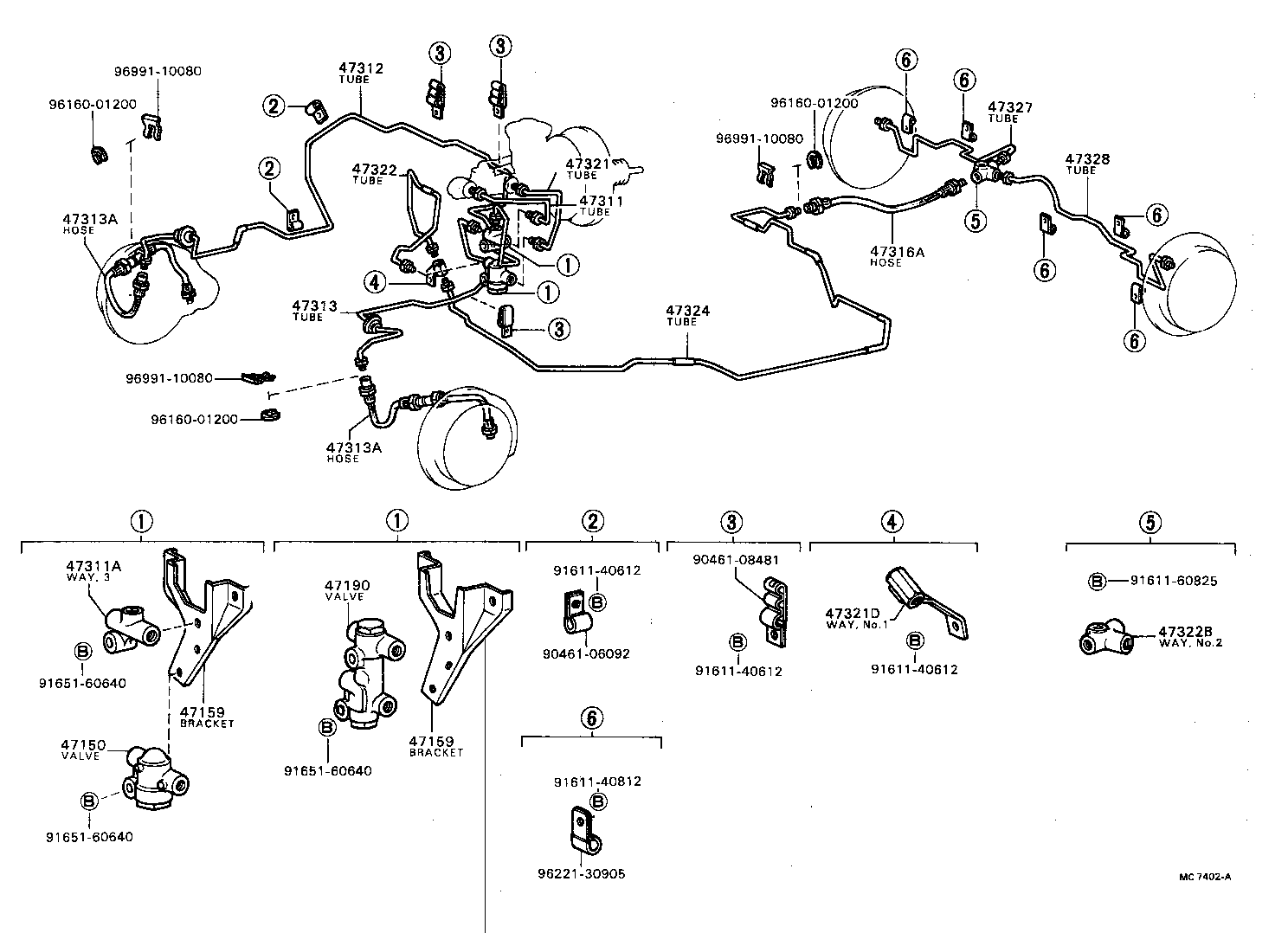

Click highlighted areas on diagram

diagram 40812 47150 47159 47159 47190 47311 47311A 47312 47313 47313A 47313A 47316A 47321 47321D 47322 47322B 47324 47327 47328 9046106092 9046108481 91611 9161140612 9161140612 9161140612 9161160825 9165160640 9165160640 9165160640 9616001200 9616001200 9616001200 9622130905 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

GX60,LX60,RX60..GEN,ME,SAA

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-22100

GX60,LX60,RX60..GEN,ME,SAA

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-22100

GX60,LX60,RX60..GEN,ME,SAA

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22190

RX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

GX60,LX60,RX60..GEN,ME,SAA

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22070

LX60..LHD;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22200

GX6#,LX60..LHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02407

GX6#,LX60,MX6#,RX6#,TX62

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02407

GX6#,LX60,MX6#,RX6#,TX62

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33055

LX60,MX62,RX6#..WG

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22040

RX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10017

LX60,MX62

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22050

GX6#,LX60..LHD

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

LX60,MX62,RX6#,TX62

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-23070

LX60,MX62..WG

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-23040

LX60,MX62,RX6#..WG

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-23040

LX60,MX62,RX6#..WG

 1
Common parts
90461-06092
90461-08481
91611-40612
91611-60825
91651-60640
96160-01200
96221-30905
96991-10080
