LX60LG-XWMDS (1980)
Toyota Cressida

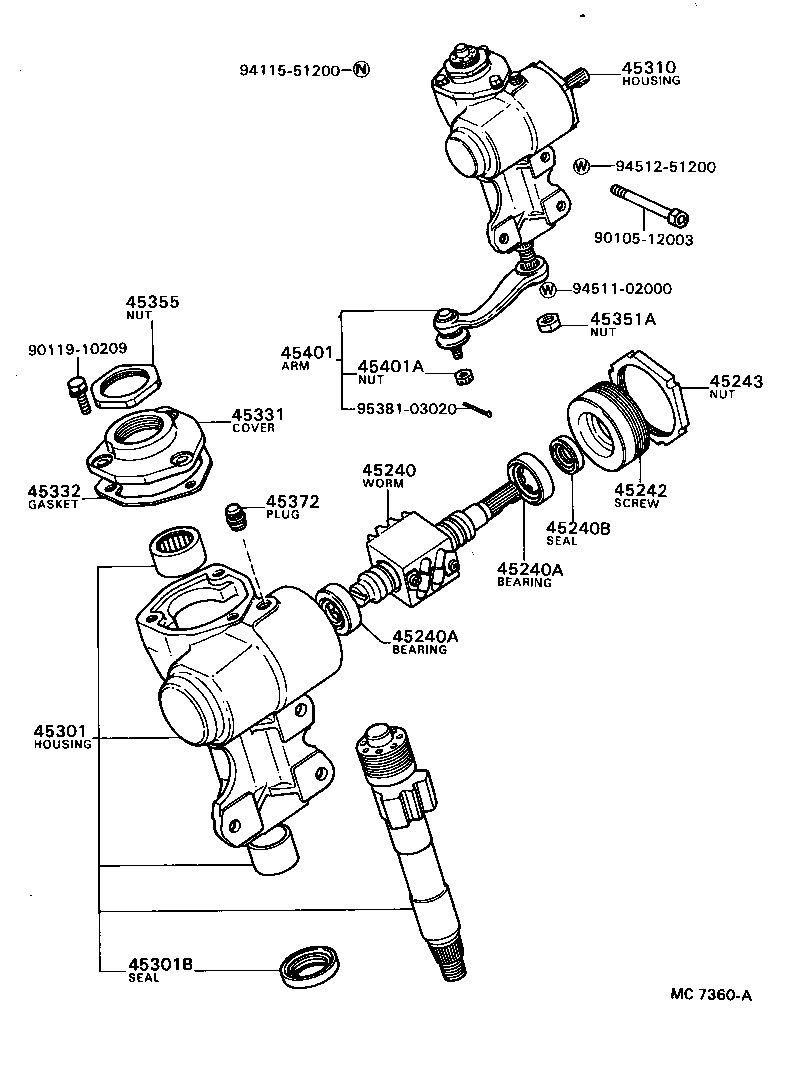

(8009- )LX60..LHD ; (8009- )RX60..LHD..GEN,ME,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-20070 |
LX60..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
LX60..LHD;LX60..RHD..5F |
2 | ||
| 90369-43001 |
LX60..LHD |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
LX60..LHD;LX60..RHD..5F |
2 | ||
| 90369-43001 |
LX60..LHD |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
LX60..LHD;LX60..RHD..5F |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22060 |
LX60..LHD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22040 |
LX60..LHD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-22090 |
LX60..LHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-34001 |
LX60..LHD |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-22120 |
LX60..LHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45331-20090 |
LX60..LHD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-20080 |
LX60..LHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
LX60..LHD;LX60..RHD..5F |
1 | ||
| 45355 - NUT, SECTOR SHAFT ADJUSTING SCREW LOCK | ||||
| 45355-20020 |
LX60..LHD |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
LX60..LHD;LX60..RHD..5F |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-29175 |
LX60..LHD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
GX60,LX60,RX62,TX62;RX60..GEN,ME,SA,SAA |
1 | ||
| Common parts | ||||
| 90105-12003 | ||||
| 90119-10209 | ||||
| 94115-51200 | ||||
| 94511-02000 | ||||
| 94512-51200 | ||||
| 95381-03020 | ||||

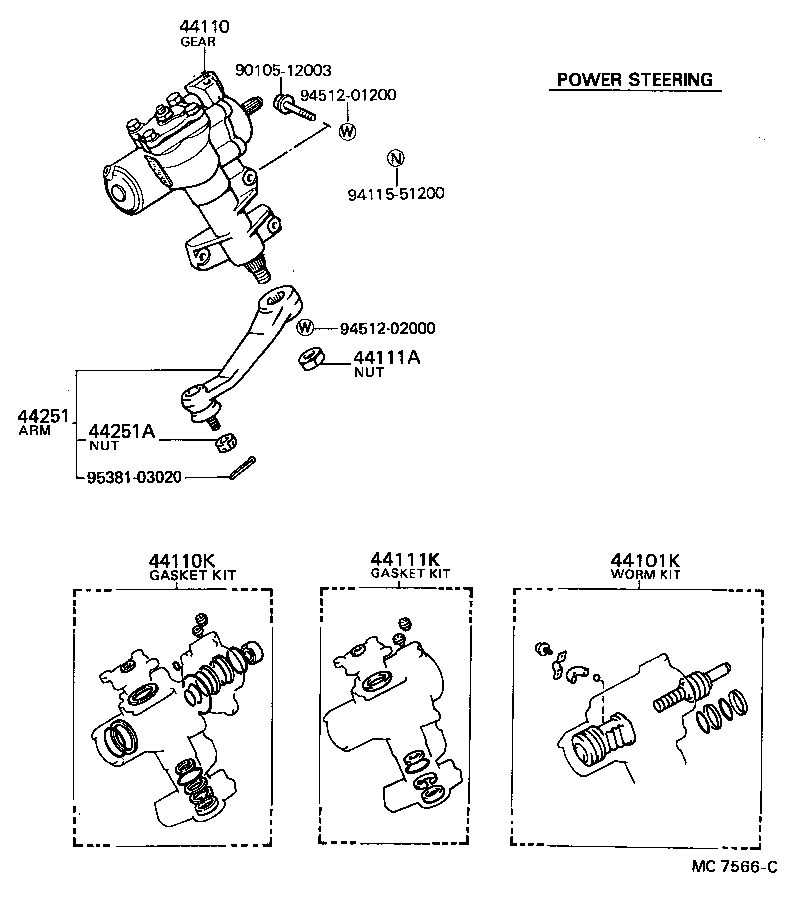

(8009-8301)SXL ; (8009- )STD..EUG ; (8009-)RX60..GEN ; (8009- )LX60,MX62.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101K - WORM KIT, POWER STEERING | ||||
| 04044-22070 |
GX60,LX60..LHD..(DLX,GL) |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-22100 |
GX60,LX60..LHD..(DLX,GL) |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-22050 |
GX6#,LX60..DLX,GL |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
GX6#,LX60..DLX,GL |
1 | ||
| 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL | ||||
| 04455-22010 |
GX6#,LX60..DLX,GL |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-29175 |
GX6#,LX60..LHD..(DLX,GL) |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
GX6#,LX60..DLX,GL |
1 | ||
| Common parts | ||||
| 90105-12003 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94512-02000 | ||||
| 95381-03020 | ||||

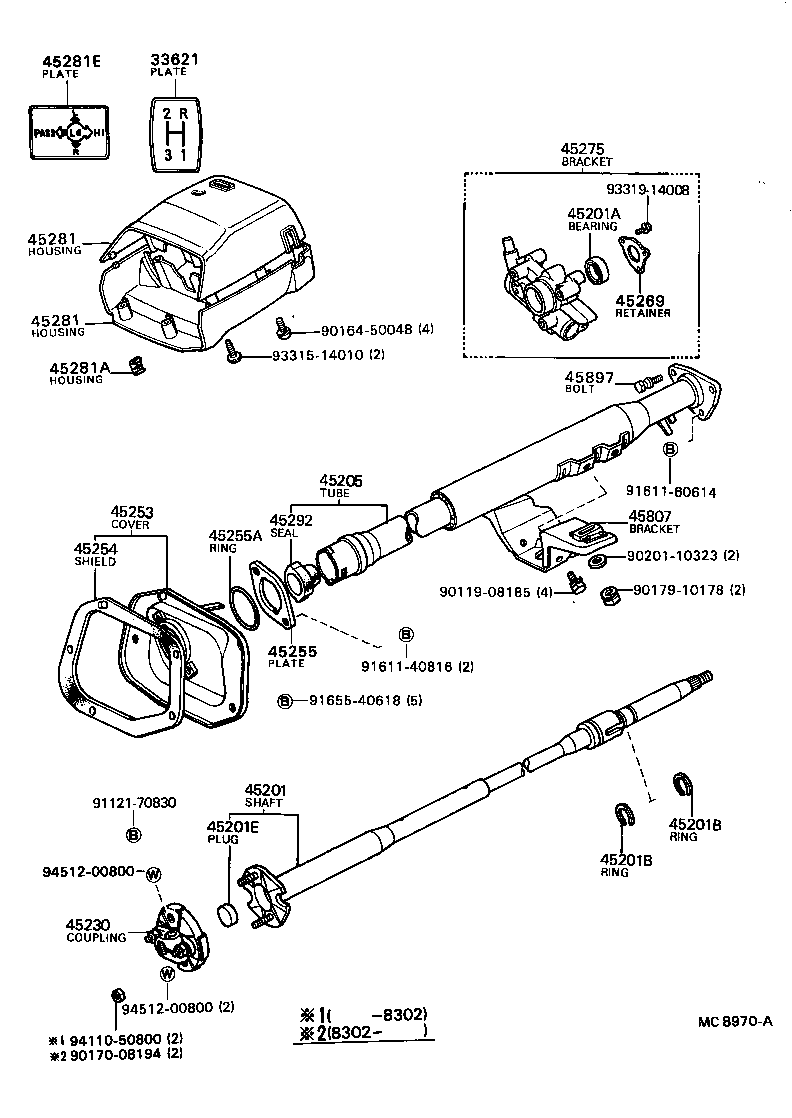

(8009- )LX60,RX62,TX62 ; (8009- )RX60..GEN,ME,SA,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22080 |
LX60..LHD |
1 | ||
| 45210-22050 |
LX60..DLX..GEN W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LX60,RX6#,TX62 |
1 | ||
| 90363-18001 |
LX60..DLX..GEN UPR,W/TILT STEERING |
1 | ||
| 90363-28001 |
LX60..DLX..GEN LWR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GX6#,LX60,MX6#,RX6#,TX62 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
GX6#,LX60,RX6#,TX62 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GX6#,LX60,MX6#,RX6#,TX62 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
GX6#,LX60,RX6#,TX62 T=1.35-1.45,T=1.4 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
LX60,RX62,TX62;RX60..GEN,ME,SA,SAA |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22110 |
LX60..LHD |
1 | ||
| 45870-20080 |
LX60..LHD..DLX..GEN W/TILT STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
LX60,MX6#,TX62 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-22040 |
GX6#,LX60..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22031 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
LX60,MX6#,TX62 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
LX60,MX6#,TX62 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
LX60,RX6#,TX62 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-22190 |
LX60..LHD..DLX..GEN W/TILT STEERING |
1 | ||
| 45280-30230 |
LX60,RX60..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2231001 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2231006 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 45286-6013004 |
LX60..LHD..DLX UPR,BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45286-2231004 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-6013006 |
LX60..LHD..DLX UPR,DARK BROWN,W/TILT STEERING,BROWN,TRIM0#,4# |
1 | ||
| 45286-6013001 |
LX60..LHD..DLX UPR,BLACK,W/TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2222001 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-2222004 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-2222006 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 45287-6009001 |
LX60..LHD..DLX LWR,BLACK,W/TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-6009004 |
LX60..LHD..DLX LWR,BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45287-6009006 |
LX60..LHD..DLX LWR,DARK BROWN,W/TILT STEERING,BROWN,TRIM0#,4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2231001 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2231006 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 45286-6013004 |
LX60..LHD..DLX UPR,BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45286-2231004 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-6013006 |
LX60..LHD..DLX UPR,DARK BROWN,W/TILT STEERING,BROWN,TRIM0#,4# |
1 | ||
| 45286-6013001 |
LX60..LHD..DLX UPR,BLACK,W/TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-2222001 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-2222004 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-2222006 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 45287-6009001 |
LX60..LHD..DLX LWR,BLACK,W/TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45287-6009004 |
LX60..LHD..DLX LWR,BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45287-6009006 |
LX60..LHD..DLX LWR,DARK BROWN,W/TILT STEERING,BROWN,TRIM0#,4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
LX60,MX6#,TX62 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-22040 |
LX60..LHD..DLX..GEN W/TILT STEERING |
1 | ||
| 45807-22130 |
LX60,RX60..LHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LX60,RX6#,TX62..3FC,4F,5F |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91655-40618 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
(8009-8301)SXL ; (8009- )STD..EUG ; (8009-)RX60..GEN ; (8009- )GX6#,LX60,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
GX6#,LX60..DLX,GL |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
GX6#,LX60..DLX,GL |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
GX6#,LX60..DLX,GL |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
GX6#,LX60..DLX,GL |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
GX6#,LX60..DLX,GL |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
GX6#,LX60..DLX,GL |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-22040 |
GX6#,LX60..DLX,GL |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
GX6#,LX60..DLX,GL |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
GX6#,LX60..DLX,GL |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
GX6#,LX60..LHD..(DLX,GL) |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
GX6#,LX60..LHD..(DLX,GL) |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
GX6#,LX60..LHD..(DLX,GL) |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-22040 |
GX6#,LX60..LHD..(DLX,GL) |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
GX6#,LX60..DLX,GL |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
GX6#,LX60..DLX,GL |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
LX60..DLX OD=13,T=1.9 |
1 | ||
| 90301-62002 |
GX6#,LX60..DLX,GL ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
GX6#,LX60..DLX,GL ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
LX60..DLX OD=13,T=1.9 |
1 | ||
| 90301-62002 |
GX6#,LX60..DLX,GL ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
GX6#,LX60..DLX,GL ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
LX60..DLX OD=13,T=1.9 |
1 | ||
| 90301-62002 |
GX6#,LX60..DLX,GL ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
GX6#,LX60..DLX,GL ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
GX6#,LX60..DLX,GL ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
GX6#,LX60..DLX,GL ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
GX6#,LX60..DLX,GL ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
GX6#,LX60..DLX,GL ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-41001 |
GX6#,LX60..DLX,GL |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-30001 |
GX6#,LX60..DLX,GL |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-22020 |
GX6#,LX60..DLX,GL |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-58001 |
GX6#,LX60..DLX,GL |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-22030 |
GX6#,LX60..DLX,GL |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-58001 |
GX6#,LX60..DLX,GL |
1 | ||
| 90562-58001 |
LX60..DLX |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-53001 |
GX6#,LX60..DLX,GL |
1 | ||
| 90301-53001 |
LX60..DLX |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
GX6#,LX60..DLX,GL |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-22020 |
GX6#,LX60..LHD..(DLX,GL) |
1 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-22020 |
GX6#,LX60..LHD..(DLX,GL) |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
GX6#,LX60..DLX,GL |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
GX6#,LX60..DLX,GL |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
GX6#,LX60..DLX,GL |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
GX6#,LX60..DLX,GL |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
GX6#,LX60..DLX,GL |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
GX6#,LX60..DLX,GL |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-22090 |
GX60,LX60..LHD..(DLX,GL) |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
GX6#,LX60..DLX,GL |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
GX6#,LX60..DLX,GL |
1 | ||
| Common parts | ||||
| 90119-10054 | ||||
| 90170-10208 | ||||
| 93319-15008 | ||||
| 94521-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
