LX60LG-XWMDS (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )LX60..5F

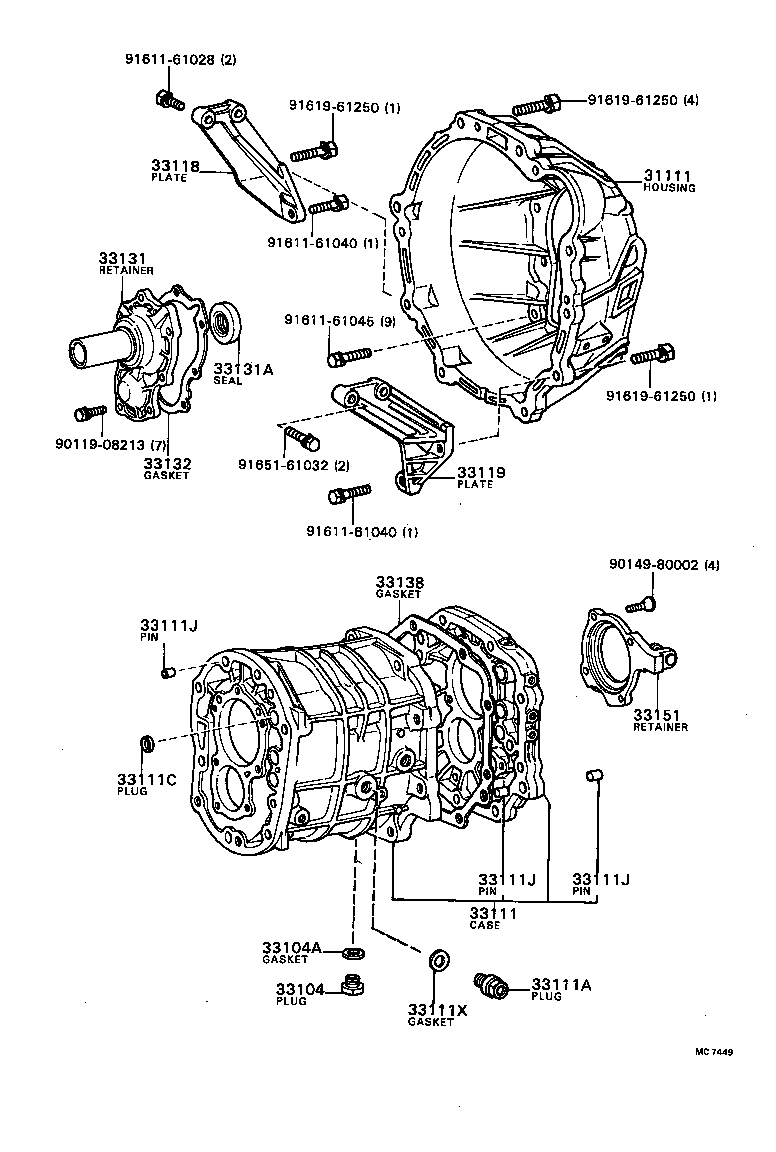

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111J 33111X 33118 33119 33131 33131A 33132 33138 33151 9011908213 9014980002 9161161028 9161161040 9161161040 9161161045 9161961250 9161961250 9161961250 9165161032
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-22110

LX60..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GX6#,LX60,RX6#,TX62..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LX60,RX6#,TX62..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-22010

LX60,RX6#,TX62..4F,5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GX6#,LX60,RX6#,TX62..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

RX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,5F

OD=14

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

LX60,RX6#,TX62..4F,5F

L=17,OD=12,L=17,D=12

 2
90250-12002

RX60..RHD..3H;LX60,RX6#,TX62..4F,5F

L=16,OD=12,L=16,D=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

LX60,RX6#,TX62..4F,5F

L=17,OD=12,L=17,D=12

 2
90250-12002

RX60..RHD..3H;LX60,RX6#,TX62..4F,5F

L=16,OD=12,L=16,D=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

LX60,RX6#,TX62..4F,5F

L=17,OD=12,L=17,D=12

 2
90250-12002

RX60..RHD..3H;LX60,RX6#,TX62..4F,5F

L=16,OD=12,L=16,D=12

 4
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LX60,RX6#,TX62..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020

LX60..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020

LX60..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-22020

GX6#,LX60,RX6#,TX62..4F,4H,5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

RX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-22010

GX6#,LX60,RX6#,TX62..4F,4H,5F

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-22010

GX6#,LX60,RX6#,TX62..4F,5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-22010

GX6#,LX60,RX6#,TX62..4F,4H,5F

 1
Common parts
90119-08213
90149-80002
91611-61028
91611-61040
91611-61045
91619-61250
91651-61032
