GX81R-AEPQK (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )GX81..RHD

Click highlighted areas on diagram

AISIN

diagram 04443 44606E 44610 44621V 44629 44635B 44642 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22610

GX81..RHD

AISIN

 1
04443-22680

GX81..RHD

JKC

 1
04443-22610

GX81..RHD;RX8#..LHD

AISIN

 1
04443-22680

GX81..RHD;RX8#..LHD

JKC

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

GX81..RHD

AISIN

 1
44608-32020

GX81..RHD

JKC

 1
44606-12520

GX81..RHD;RX8#..LHD

AISIN

 1
44608-32020

GX81..RHD;RX8#..LHD

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-22700

GX81..RHD

 1
44621V - SEAL, BOOSTER BODY
44621-28120

GX81,RX81;RX80..LHD

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

GX81,RX81;RX80..LHD

 1
44635B - KEY, VALVE STOPPER
44635-28120

GX81..RHD

AISIN

 1
44633-28130

GX81..RHD;RX8#..LHD

JKC

 1
44635-28120

GX81..RHD;RX8#..LHD

AISIN

 1
44633-28130

GX81..RHD

JKC

 1
44642 - PISTON, BRAKE BOOSTER
44642-32010

GX81,RX81;RX80..LHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX81,LX80,MX8#,RX8#

 1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8808- )GX81..RHD ; (8808- )LX80,RX8#

Click highlighted areas on diagram

JKC

diagram 04443 44605 44606E 44610 44635B 44637A 44645 44673A 44696 44730 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22610

GX81..RHD

AISIN

 1
04443-22680

GX81..RHD

JKC

 1
04443-22610

GX81..RHD;RX8#..LHD

AISIN

 1
04443-22680

GX81..RHD;RX8#..LHD

JKC

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

GX81..RHD;LX80,RX8#

 1
44605-22021

LX80;GX81,RX80..RHD

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

GX81..RHD

AISIN

 1
44608-32020

GX81..RHD

JKC

 1
44606-12520

GX81..RHD;RX8#..LHD

AISIN

 1
44608-32020

GX81..RHD;RX8#..LHD

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-22700

GX81..RHD

 1
44635B - KEY, VALVE STOPPER
44635-28120

GX81..RHD

AISIN

 1
44633-28130

GX81..RHD;RX8#..LHD

JKC

 1
44635-28120

GX81..RHD;RX8#..LHD

AISIN

 1
44633-28130

GX81..RHD

JKC

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

LX80;GX81,RX80..RHD

 1
44637-32040

GX81..RHD;LX80,RX8#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

GX81..RHD;LX80,RX8#

 1
44645-22020

LX80;GX81,RX80..RHD

 1
44673A - BODY, BOOSTER VALVE
44673-32020

GX81,RX80..RHD

 1
44673-32020

RX8#;GX81..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX81,LX80,MX8#,RX8#

 1
Common parts
90179-08038

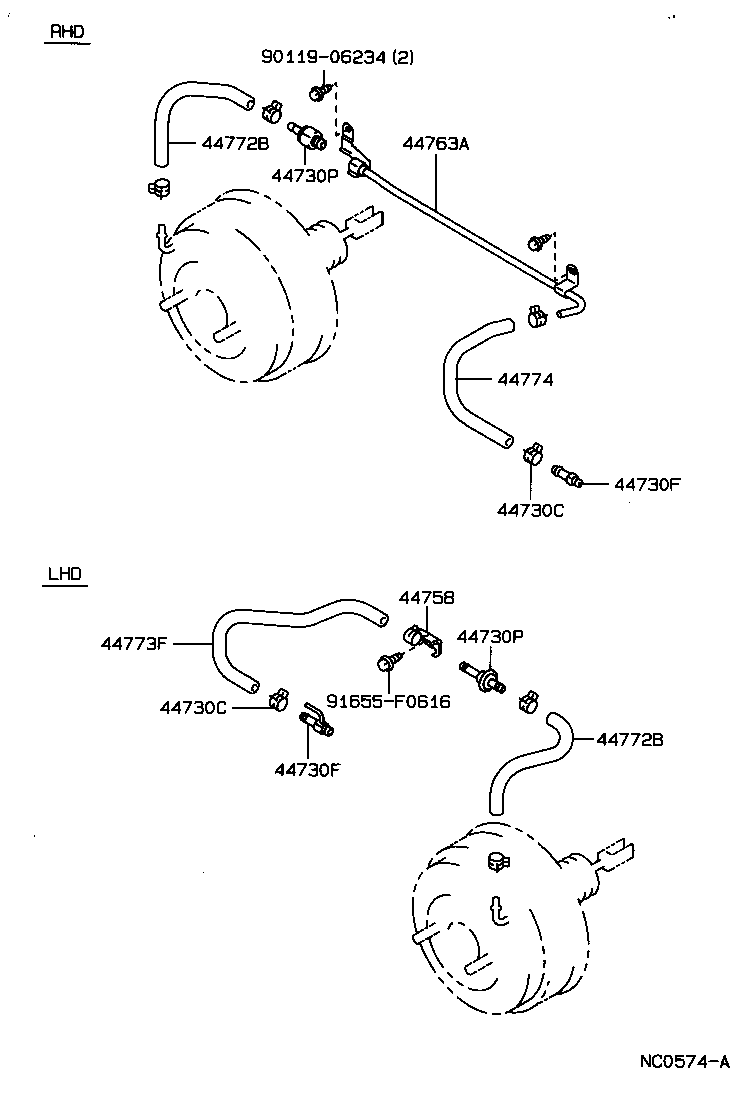

ILLUST NO. 2 OF 2(8808- )GX81

Click highlighted areas on diagram

diagram 44730C 44730C 44730F 44730F 44730P 44730P 44758 44763A 44772B 44772B 44773F 44774 9011906234 91655F0616
Part # Description Qty Price
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

GX81,MX83..RHD;LX80,RX8#..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

GX81,MX83..RHD;LX80,RX8#..LHD

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GX81,MX81,RX8#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GX81,MX81,RX8#

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-22120

RX8#..LHD;GX81,MX83..RHD

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-22120

RX8#..LHD;GX81,MX83..RHD

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-22160

GX81,MX83..RHD

 1
44763-22160

GX81..4FC

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22220

GX81..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22220

GX81..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-22160

GX81..RHD

 1
Common parts
90119-06234
91655-F0616
