GX81R-AEPQK (1988)
Toyota Cressida
Production
Aug 1988
-
Feb 1993
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9302)1GFE

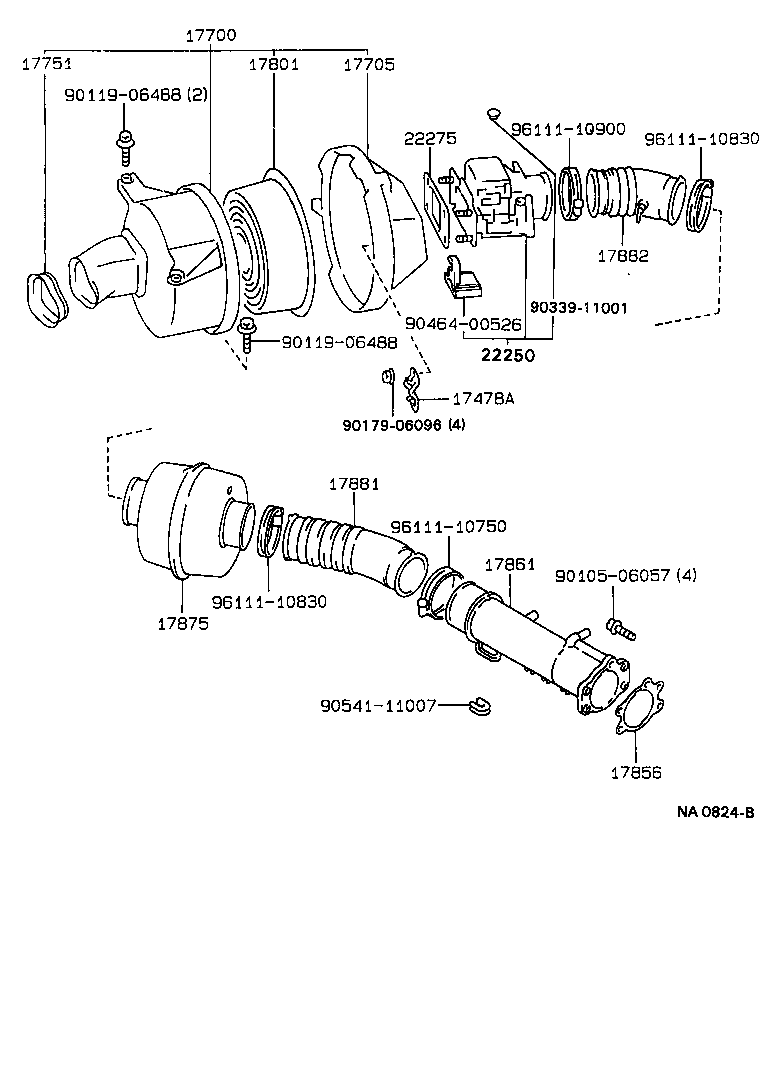

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17478A - PLATE, LOCK | ||||
| 17478-43010 |
1GFE..GX81 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-70130 |
1GFE..GX81 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-70070 |
1GFE..GX81 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-70020 |
1GFE..GX81 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
1GFE..GX81 |
1 | ||
| 17856 - GASKET, AIR INTAKE FLANGE | ||||
| 17856-70020 |
1GFE..GX81 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-70020 |
1GFE..GX81 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-70140 |
1GFE..GX81 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-70200 |
1GFE..GX81 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-70130 |
1GFE..GX81 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-70210 |
1GFE..GX81 |
1 | ||
| 22250-70220 |
1GFE..GX81..RHD SINGAPORE SPEC |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
1GFE..GX81 |
1 | ||
| Common parts | ||||
| 90105-06057 | ||||
| 90119-06488 | ||||
| 90179-06096 | ||||
| 90339-11001 | ||||
| 90464-00526 | ||||
| 90541-11007 | ||||
| 96111-10750 | ||||
| 96111-10830 | ||||
| 96111-10900 | ||||
