GX81L-AEMQK (1988)

Toyota Cressida

Production Aug 1988 - Feb 1993
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)1GFE

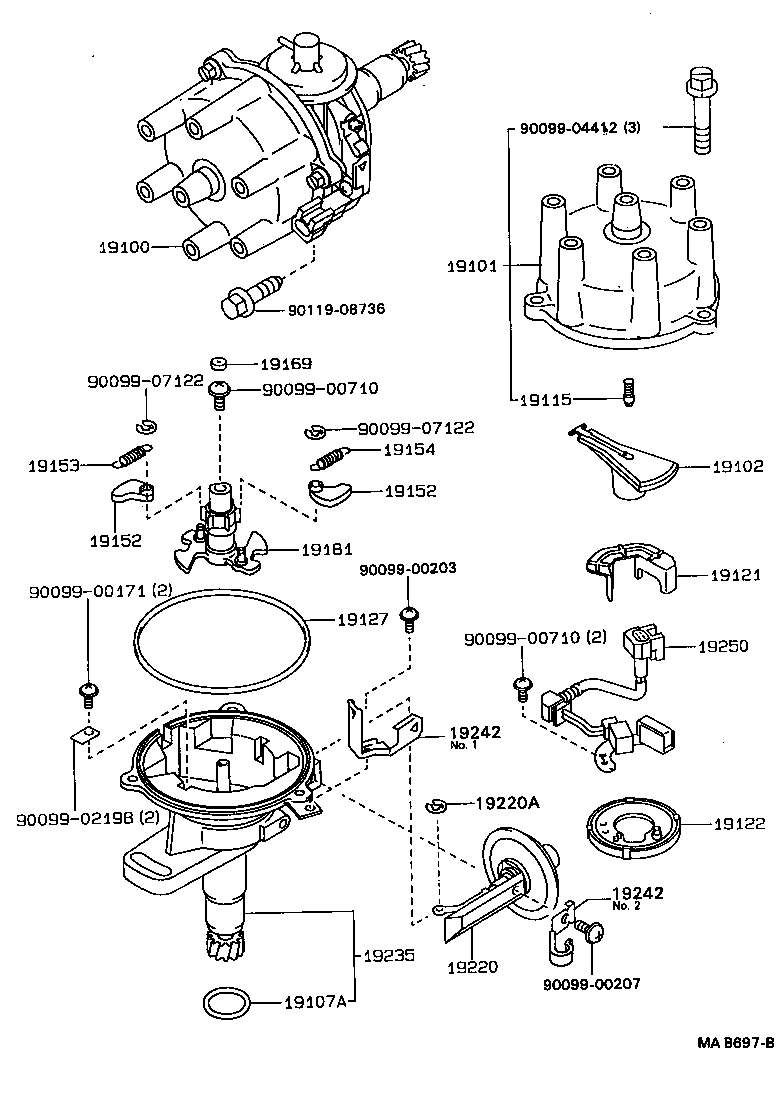

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19121 19122 19127 19152 19152 19153 19154 19169 19181 19220 19220A 19235 19242 19242 19250 9009900171 9009900203 9009900207 9009900710 9009900710 9009902198 9009904412 9009907122 9009907122 9011908736
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-70170

1GFE..GX81

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-70160

1GFE..GX81

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-70010

1GFE..GX81

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14095

1GFE..GX81

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

1GFE..GX81

 1
19121 - COVER, DUST PROOF
19121-27020

1GFE..GX81

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-88262

1GFE..GX81

 1
19127 - PACKING, DUST PROOF
19127-61240

1GFE..GX81

 1
19152 - WEIGHT, GOVERNOR
19152-63010

1GFE..GX81

 2
19152 - WEIGHT, GOVERNOR
19152-63010

1GFE..GX81

 2
19153 - SPRING, GOVERNOR, A
19153-70170

1GFE..GX81

 1
19154 - SPRING, GOVERNOR, B
19154-70171

1GFE..GX81

 1
19169 - STOPPER, CAM GREASE
19169-63011

1GFE..GX81

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-70040

1GFE..GX81

 1
19181-70020

1GFE..GX81

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-70170

1GFE..GX81

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

1GFE..GX81

 1
19235 - HOUSING, DISTRIBUTOR
19235-70170

1GFE..GX81

 1
19242 - CLAMP, CORD
19242-70170

1GFE..GX81

NO.1

 1
19242-70180

1GFE..GX81

NO.2

 1
19242 - CLAMP, CORD
19242-70170

1GFE..GX81

NO.1

 1
19242-70180

1GFE..GX81

NO.2

 1
19250 - GENERATOR ASSY, SIGNAL
19250-70050

1GFE..GX81

 1
19250-70170

1GFE..GX81

 1
Common parts
90099-00171
90099-00203
90099-00207
90099-00710
90099-02198
90099-04412
90099-07122
90119-08736
