GX71R-XEMGE (1984)
Toyota Cressida
(8408-8504)GX71..ME ; (8408- )GX71..EUR,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 400G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 400G |
2 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22160 |
GX71,MX73,RX70..RHD |
1 | ||
| 88503-22161 |
MX73..RHD..GLX;GX71,RX70,72,YX70..RHD |
1 | ||
| 88503-22160 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22160 |
GX71,MX73,RX70..RHD |
1 | ||
| 88503-22161 |
MX73..RHD..GLX;GX71,RX70,72,YX70..RHD |
1 | ||
| 88503-22160 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,MX72,RX7#,YX70 |
1 | ||
| 88645-30250 |
GX71,MX73,RX70 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,MX72,RX7#,YX70 |
1 | ||
| 88645-30250 |
GX71,MX73,RX70 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22320 |
GX71 |
1 | ||
| 88711-22321 |
GX71 |
1 | ||
| 88711-22381 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88711-22380 |
GX71..RHD W/MANUAL *AIC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22320 |
GX71 |
1 | ||
| 88711-22321 |
GX71 |
1 | ||
| 88711-22381 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88711-22380 |
GX71..RHD W/MANUAL *AIC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22450 |
GX71..RHD |
1 | ||
| 88712-22451 |
GX71..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22450 |
GX71..RHD |
1 | ||
| 88712-22451 |
GX71..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22720 |
GX71,MX73..RHD..GLX..(ARL,GEN) |
1 | ||
| 88716-22440 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22720 |
GX71,MX73..RHD..GLX..(ARL,GEN) |
1 | ||
| 88716-22440 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22210 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD W/HEATER |
1 | ||
| 88717-22210 |
MX73..RHD..(GL,GLX);GX71,RX70,72,YX70..RHD W/HEATER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22210 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD W/HEATER |
1 | ||
| 88717-22210 |
MX73..RHD..(GL,GLX);GX71,RX70,72,YX70..RHD W/HEATER |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22730 |
GX71..RHD..GEN MANUAL *AIC |
1 | ||
| 88718-22570 |
GX71,MX73..RHD..EFI;MX73..RHD..GLX..TWC |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22650 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88718-22650 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22650 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88718-22650 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-12280 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD |
1 | ||
| 88718-12280 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88718-22630 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-12280 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD |
1 | ||
| 88718-12280 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88718-22630 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-14450 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88718-22670 |
MX73..EFI;GX71,MX72,RX7#;MX73..GLX..TWC |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-14450 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88718-22670 |
MX73..EFI;GX71,MX72,RX7#;MX73..GLX..TWC |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
2 | ||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
2 | ||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
2 | ||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
2 | ||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||

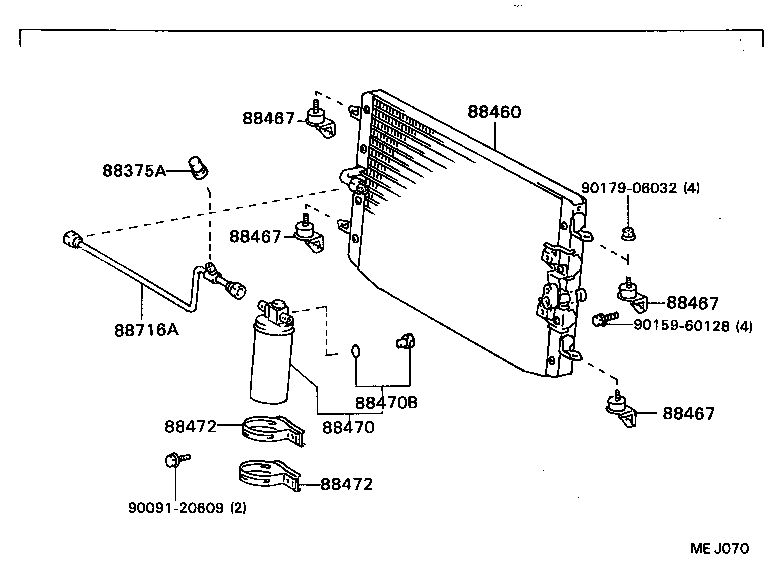

(8408- )GX71,MX73..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
RX72..ME;MX73..EFI;MX73..GLX..TWC;GX71,RX70,71,YX70 |
1 | ||
| 88375-20010 |
MX73..GEN,ME;MX73..GLX..(ARL,SA);GX71,RX70,71,72,YX70 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
RX72..ME;MX73..EFI;MX73..GLX..TWC;GX71,RX70,71,YX70 |
1 | ||
| 88375-20010 |
MX73..GEN,ME;MX73..GLX..(ARL,SA);GX71,RX70,71,72,YX70 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88460-22230 |
GX71,MX73..RHD |
1 | ||
| 88460-22231 |
GX71,MX73..RHD..GLX |
1 | ||
| 88460-22294 |
MX73..GLX..ARL;GX71,MX73..RHD..(GEN,SA) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22270 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX7#..GL,GLX |
1 | ||
| 88460-22271 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88460-22271 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX73..RHD..GLX |
1 | ||
| 88460-22301 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22270 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX7#..GL,GLX |
1 | ||
| 88460-22271 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88460-22271 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX73..RHD..GLX |
1 | ||
| 88460-22301 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12070 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470-12070 |
MX73..ARL,GEN,ME;GX71,MX73,YX70..(GLX,STD)..(GEN,SA) |
1 | ||
| 88470-12070 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12070 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470-12070 |
MX73..ARL,GEN,ME;GX71,MX73,YX70..(GLX,STD)..(GEN,SA) |
1 | ||
| 88470-12070 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88475-12020 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88475-12020 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22430 |
GX71,MX7#..GL,GLX |
1 | ||
| 88716-22430 |
GX71,MX7# |
1 | ||
| 88716-22430 |
GX71,MX73..RHD..GLX |
1 | ||
| 88716-22450 |
RX72..ME;RX70,71,YX70 |
1 | ||
| 88716-22631 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88716-22430 |
GX71..RHD..GEN MANUAL *AIC |
1 | ||
| 88716-22632 |
MX73..GLX..ARL;GX71,MX73..RHD..(GEN,SA) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22430 |
GX71,MX7#..GL,GLX |
1 | ||
| 88716-22430 |
GX71,MX7# |
1 | ||
| 88716-22430 |
GX71,MX73..RHD..GLX |
1 | ||
| 88716-22450 |
RX72..ME;RX70,71,YX70 |
1 | ||
| 88716-22631 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88716-22430 |
GX71..RHD..GEN MANUAL *AIC |
1 | ||
| 88716-22632 |
MX73..GLX..ARL;GX71,MX73..RHD..(GEN,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22491 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88716-22530 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88716-22531 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
(8408- )ARL ; (8408- )GX71..RHD..GEN ; (8701- )MX73..EFI..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-14040 |
GX71..RHD..GEN W/MANUAL *AIC |
2 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-14040 |
GX71..RHD..GEN W/MANUAL *AIC |
2 | ||
| 88467E - CUSHION, PRESSURE REGULATOR | ||||
| 88467-14050 |
GX71..RHD..GEN W/MANUAL *AIC |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 400G |
2 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22160 |
GX71,MX73,RX70..RHD |
1 | ||
| 88503-22161 |
MX73..RHD..GLX;GX71,RX70,72,YX70..RHD |
1 | ||
| 88503-22160 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-22100 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-22220 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-22190 |
GX71..RHD..GEN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22320 |
GX71 |
1 | ||
| 88711-22321 |
GX71 |
1 | ||
| 88711-22381 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88711-22380 |
GX71..RHD W/MANUAL *AIC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22320 |
GX71 |
1 | ||
| 88711-22321 |
GX71 |
1 | ||
| 88711-22381 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88711-22380 |
GX71..RHD W/MANUAL *AIC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22450 |
GX71..RHD |
1 | ||
| 88712-22451 |
GX71..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22450 |
GX71..RHD |
1 | ||
| 88712-22451 |
GX71..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22491 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88716-22530 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88716-22531 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22720 |
GX71,MX73..RHD..GLX..(ARL,GEN) |
1 | ||
| 88716-22440 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22210 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD W/HEATER |
1 | ||
| 88717-22210 |
MX73..RHD..(GL,GLX);GX71,RX70,72,YX70..RHD W/HEATER |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22730 |
GX71..RHD..GEN MANUAL *AIC |
1 | ||
| 88718-22570 |
GX71,MX73..RHD..EFI;MX73..RHD..GLX..TWC |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22650 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88718-22650 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-12280 |
MX73..RHD..GLX;GX71,RX70,YX70..RHD |
1 | ||
| 88718-12280 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88718-22630 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-14450 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88718-22670 |
MX73..EFI;GX71,MX72,RX7#;MX73..GLX..TWC |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-14450 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88718-22670 |
MX73..EFI;GX71,MX72,RX7#;MX73..GLX..TWC |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
2 | ||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
2 | ||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 53285-22020 |
GX71..RHD..GEN RH,W/MANUAL *AIC |
1 | ||
| 53286-22010 |
GX71..RHD..GEN LH,W/MANUAL *AIC |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 53285-22020 |
GX71..RHD..GEN RH,W/MANUAL *AIC |
1 | ||
| 53286-22010 |
GX71..RHD..GEN LH,W/MANUAL *AIC |
1 | ||
| Common parts | ||||
| 90099-32100 | ||||
| 90179-06115 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 93385-16016 | ||||
| 93385-16030 | ||||
(8408- )ARL ; (8408- )GX71..RHD..GEN ; (8701- )MX73..EFI..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
RX72..ME;MX73..EFI;MX73..GLX..TWC;GX71,RX70,71,YX70 |
1 | ||
| 88375-20010 |
MX73..GEN,ME;MX73..GLX..(ARL,SA);GX71,RX70,71,72,YX70 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22270 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX7#..GL,GLX |
1 | ||
| 88460-22271 |
GX71..RHD..GEN W/MANUAL *AIC |
1 | ||
| 88460-22271 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX73..RHD..GLX |
1 | ||
| 88460-22301 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
4 | ||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12070 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470-12070 |
MX73..ARL,GEN,ME;GX71,MX73,YX70..(GLX,STD)..(GEN,SA) |
1 | ||
| 88470-12070 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88475-12020 |
MX73..GLX..SA;MX73..ARL,GEN,ME;GX71,LX70,RX7#,YX70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22430 |
GX71,MX7#..GL,GLX |
1 | ||
| 88716-22430 |
GX71,MX7# |
1 | ||
| 88716-22430 |
GX71,MX73..RHD..GLX |
1 | ||
| 88716-22450 |
RX72..ME;RX70,71,YX70 |
1 | ||
| 88716-22631 |
GX71,MX73..RHD..GLX..(ARL,GEN) W/*AAC |
1 | ||
| 88716-22430 |
GX71..RHD..GEN MANUAL *AIC |
1 | ||
| 88716-22632 |
MX73..GLX..ARL;GX71,MX73..RHD..(GEN,SA) |
1 | ||
| Common parts | ||||
| 90091-20609 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
